G Scale 1 LED Tiffany Opal Lamp Fixtures w peel and stick 3M or screw mounts - 18 inch micro black wires - requires an SL LED controller
Ready to run; pre-wired - ready to run with an optional SL LED controller
Features:
- Easy Install in minutes
- Wired - ready to use
- Default is Warm White High Intensity LED 3200 deg. K color temp - other color temperature available (see below)
- Indoor or Outdoor use
- Use with any scale - designed for LGB and PIKO trains
- Mounting pads for all LGB and other types of trains
- SL LED controller required
Lamp Shade Dimensions (without mount):
- Diameter: 28.7mm (1.1") diameter and
- Height Overall
- Standard: 9.7mm (0.38") high - for all mounts but low profile mounting pads
- Low Profile: 8.0mm (.32") high - used with low profile mount for door swing clearance
- Height Neck Only: 9.7mm (0.38") high - for all mounts but low profile mounting pads
- Standard: 4.2mm (.16") high - not used with low profile mounts
- Low Profile Neck Only: 2.4mm (0.09") high - used with low profile mount for door swing clearance
Mount Dimensions (without Lamp)
- Flat and Sloped Flat Mounts:
- Length: 16mm
- Width: 16mm
- Height: Varies depending on shade, ceiling type and fixture mount height
- Low Profile SL-8291230: 2.8mm (0.11")
- Standard Profile - provides for all lamps to be at the same same height from the center line of the ceiling.
- High Profile - for deeply curved roofs
- Slope Profile - for mounting on flat sloped surfaces
- Curved Profile - for matching the curve of a ceiling
- Special Profile - V shaped ceilings to match car roof angles
Shourt Line Product Numbers Description Price and Order buttons
To save on shipping when ordering more than one item please contact us at 310-622-4431 or email info@ShourtLine.com
SL-8201230 1 LED Opal Fixture for LGB 2 stud mounting req. LED controller 8.95
 |
SL-8201230 1 LED Tiffany Opal Lamp Fixture - with 2 screws for mounting on LGB ceiling studs. The lamp lifts off the base to access the screw holes and covers the mounting screws when in place. This fixture is a direct replacement for LGB stud mounted fixtures and requires an SL LED controller. |
SL-8291230 1 LED Fixture for low height flat ceiling mount over an LGB door or for minimum height fixture
 |
SL-8291230 1 LED Tiffany Opal Lamp Fixture for flat mounting - Low 8.4mm height profile Peel and stick 3M mount w 18 inch micro black wires. The low profile height allows clearance for doors. The mount use a low neck height lamp. |
SL-8261230 1 LED Fixture that matched the height of SL 2, 3, 4 and 6 Lamp stud mounted Fixtures
|
SL-8261230 1 LED Tiffany Opal Lamp Fixture for flat mounting - High 12.8mm height profile Peel and stick 3M mount w 18 inch micro black wires. The 12.8 height matches the lamp height of 2, 3, 4 and 6 Lamp fixtures and is mounted the ceiling center so all lamps are the same height. |
SL-8241230 1 LED Fixture for flat sloped ceiling mount on LGB long car ceiling for toilet or stove lighting
 |
SL-8241230 1 LED Tiffany Opal Lamp Fixture for flat slope mounting - Matches the slope of LGB Long ceilings Sloped Flat profile Peel and stick 3M mount w 18 inch micro black wires. The lamp height matches that of of 2, 3, 4 and 6 Lamp fixtures mounted along a cars centerline |
SL-8201550 1 LED Tiffany Opal Lamp with wood color mounting bracket req. LED controller
 |
SL-8201550 1 LED Wood Color Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18" micro black wires - For track-side buildings and yards, also available in extended arm lengths from 35 to 200mm (1.5 to 4 inches) Default LED is Warm White as shown in photo |
SL-8201551 1 LED Tiffany Opal Lamp with black color mounting bracket req. LED controller
 |
SL-8201551 1 LED Black Wall Mounted Tiffany Opal Lamp Fixture- Peel & Stick 3M mount - 18" micro black wires - For track-side buildings and yards, also available in extended arm lengths from 35 to 200mm (1.5 to 4 inches) Note: the photot shows fixture with optional Yellow Warm White LED in fixture. Default is Warm White, Warm Warm White also available. |
SL-8281230 1 LED Fixture for 8mm flat steep slope ceiling mount on steep slope or deeply curved ceilings
Shourt Line Direct Discount Price: $8.95 New
___
SL-8271331 1 LED Fixture for sharp curved end of car ceiling mount on LGB cars
SL-8271231 1 LED Fixture for V shape ceiling mount on an LGB Bier car bar area ceiling
SL-8271232 1 LED Fixture for V shape ceiling mount on an LGB brakeman's cab ceiling
Shourt Line Direct Discount Price: $10.95 New
SL Tiffany Lamps mount to your loco, car or building ceilings in seconds
Direct From Manufacturer- Made in the USA
The SL-8291230 Mounts on any loco or car ceiling, perfect for exterior or interior lighting. (train, track figures, LED controller and 4 LED fixture not included but available at our store.

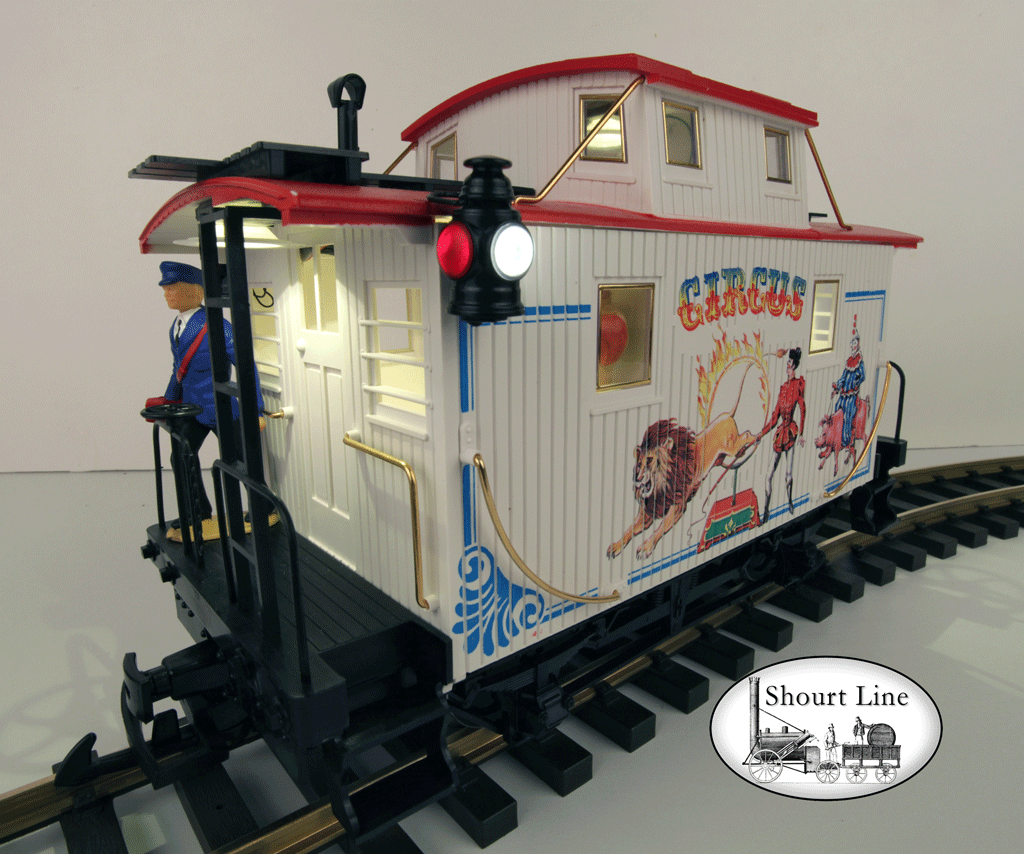

This video shows SL-8291230 exterior 1 LED light fixtures that operate when the train stops!
To replay the video click the replay icon on the bottom left of the screen above or refresh this page.
Description:
This new, easy to use Tiffany style white opal lamp fixture uses a high intensity warm white LED. This is the second series of G scale prototypical light fixtures available from the shourt line. The first used simulated oil lamp fixtures. This one spans the gap between gas and electric illumination. It has a Tiffany style opal lamp shade for period design and a special mounting base with a low profile so it can be used with LGB doors on exteriors of cars and also gives maximum head room inside cars.
This 1 LED fixture does require the use of a Shourt Line LED controller dimmer for safe and efficient operation and works without the use of dropping resistors or complicated formulas. The SL LED controllers are available with solder and screw type terminals for in car wall and ceiling mounts as well as under car mounting on any G scale short or long cars.
The SL LED controller is up to 94% efficient so that even the LGB starter set power pack will power a loco, its lights and 12 LED lamps plus additional car lighting for future expansion. The newest SL LED controller is unique in operating at 1/6th the power of any other available and it also works at the lowest track voltage or no track voltage, it fact it operates 8 LEDs up to 5 minutes without any track power!
Features:
- SL Tiffany Opal White Lamp Fixtures
- High Output
- Warm White LED color for matching bulb color temperature
- Warm Warm White (WWW) and Yellow Warm White (YWW) color also available on request.
- Opal Lamp shade for diffused lighting
- Prototypical Appearance
- Low Profile height permits LGB doors to open and close
- Square black mounting plate with 3M adhesive
- Peel and Stick Installation
- Dimensions:
- Fixture height SL-8291230: 6mm (.24") Low profile
- Fixture height SL-8291231: 8mm (.33") Standard profile SL-8291231
- Fixture diameter: 16mm (1.1")
- Fixture mounting pad dimensions: (12mm (.6") square
- Wire: 2 each 30 AWG solid copper plated with black jacket each 18 inches long
- Default color temperature is Warm White which is matched for 3,200 degrees Kelvin that matches LGB two pin bulbs in color temperature. Use the Incandescent setting on your camera from proper color temperature in your photos.
- At the time of order you can request the Yellow Warm White or the Warm Warm White but we recommend using the Warm White standard unless you want to simulate a yellow outdoor bug light (YWW) or candle flame (WWW) see the photos below to compare.
You will receive the recommended Warm White LED lamp fixture shown on the right side of the photo above unless you request the WWW or the YWW color temperature LEDS with your order.
This photo shown the right angle SL-8201550 1 LED Tiffany style Opal Lamp fixture with simulated wood mounting bracket. Note the difference in color temperature in the pools of light from each fixture. The Warm White is recommended but the other color temperatures are available upon request. (The right angle fixtures above are not included with this item but available at our store)
Instructions: The photos shown below are for examples of use, wiring and placement. Only a single Tiffany style Opal LED fixture, pre wired with 18 inch leads, come with this item.
This item requires an SL LED controller for safe and efficient operation. We install lighting products an all makes of G scale cars if you do not want to do it yourself. SL LED controllers area available in both solder and screw terminal types. We will set up the controller of your choice when requested so you do not have to adjust the voltage per the instructions that comes with each controller. A volt/amp meter is required to set the safe operating voltage on our SL LED controllers. Other makes and models of controllers may not work with direct parallel wiring of LEDs. If you want to use another controller be sure to use dropping resistors on each LED as they usually will not provide proper operation without them. All our controller work without dropping resistors.
- Adjust your SL Lighting controller using the instructions provided with your controller
- Do not use a voltage above 3.1 volts
- Test the fixture by connecting the long stripped wire to + and the shorter stripped wire to - output of a Shour Line LED controller that has been previously set to the proper voltage
- Check to see the lamp turn on, if not reverse the leads and retest - mark the + and - leads of the lamp for later wiring to the controller
- If the lamps fails to light contract us at the ShourtLine.com
- Clean the surface where you want to mount the fixture with an alcohol wipe
- Peel off the read tape to reveal the 3M adhesive pad
- Hold the fixture above the mounting surface to check the correct position before it touches the mounting surface.
- Apply gentle pressure by pushing with a finger on the LED
- Route the wires to an an existing SL lighting fixture and SL LED controller or a separate SL LED Controller of your choice
- Use only with an SL LED controller; damage to your led fixture is not covered with other controllers or if instructions are not followed.
Each fixture comes with 18 inch micro cable leads for installation in any loco, car, or building. You lighting fixtures will provide a wide angle illumination as shown above.

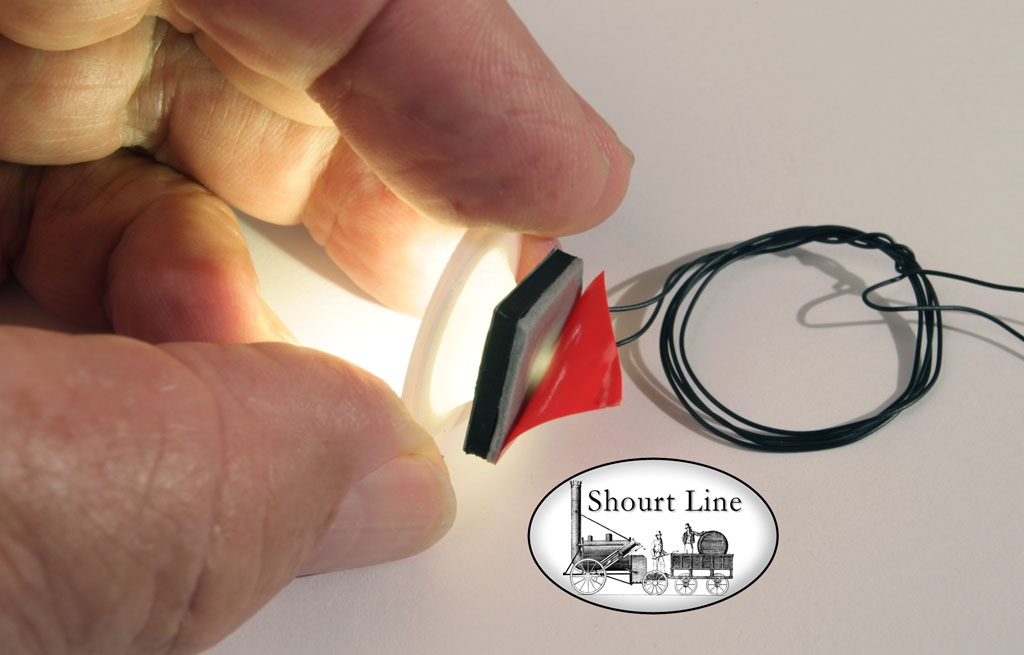

To install, clean the surface you want to mount to with an alcohol wipe, peel off the read tape to reveal the 3M adhesive pad and apply.
The fixtures 18 inch wires allow wiring with any car. The photo above shows two SL-8291230 fixtures mounted the exterior porch of an LGB car that also has an SL-8204230 4 Opal Lamp fixture installed. (train, track figures, LED controller and 4 LED fixture not included but available at our store.

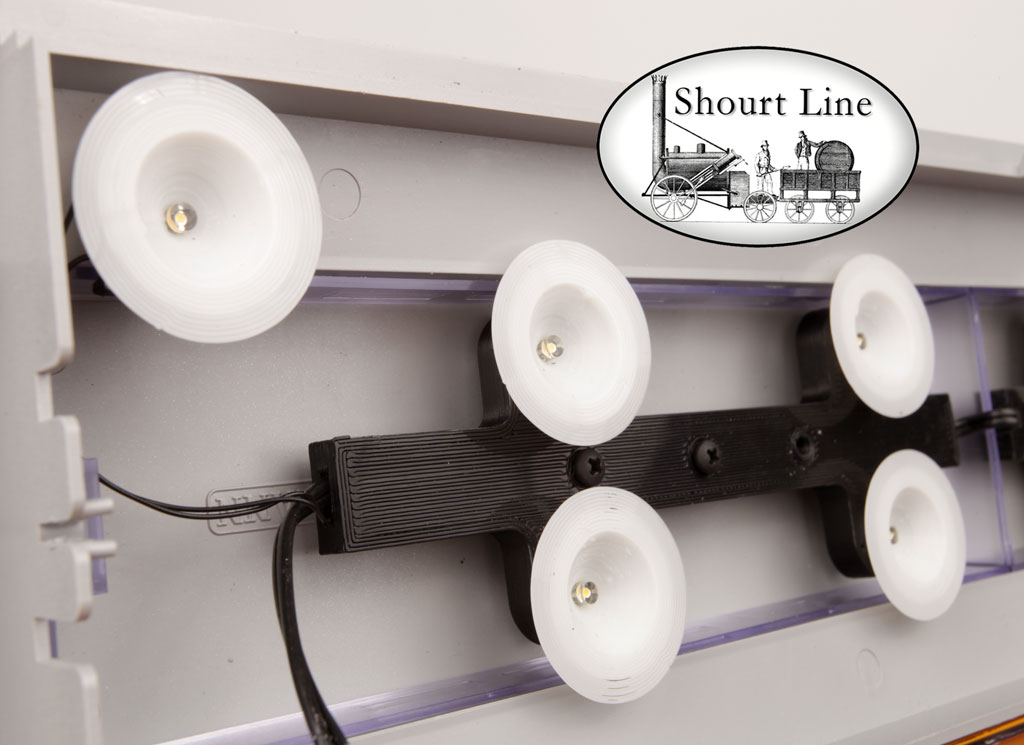

This photo shows 2 eachSL-8241230 opal slope fixtures mounted on the sloped interior ceiling for toilet illumination wired to an SL-8208230 8 LED Opal fixture. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
For sloped surfaces such as the roof inside ceiling on LBG long cars use the SL-82412301 LED Opal Fixture for the cars flat slope ceiling mounted single Opal lamp shade with a sloped mounting pad that keeps the lamp level at at the same height as the two quad SL Tiffany Lamp fixtures.
This photo shows a SL-8291231 fixture mounted to the cupola's ceiling, another SL-8291231 fixture is mounted on the rear platform ceiling and an SL-8101110 pre-wired LED with snap-in mount for an LGB exterior lamps. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
This photo shows 2 each SL-8291231 1 LED Opal fixtures mounted to the exterior platforms and 2 each SL-8101110 1 LED plug-in mount for LGB exterior lamps all wired in parallel to an SL-8101110 5 LED Opal Caboose fixture. All the LEDs are controlled and dimmed by an SL-8453003 Precision Train Throttle & LED controller mounted inside the caboose and covered with an SL-7453003 3 Side Snap On Cover . Also shown is an SL-6111100 10KuF Anti-flicker Buffer wired to the controller and to a track power pickup at the bottom of the car. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
The Shourt Line SL-8453003 Precision Train Throttle & LED controller shown above is used for AC, DC or DCC track power. The controller can power and dim over 300 LEDs at up to 94% efficiency from AC,DC or DCC at 4 to 35 volts. It uses 1/6 the power of all other lighting systems available. (train, track figures, LED controller and 4 LED fixture not included but available at our store.

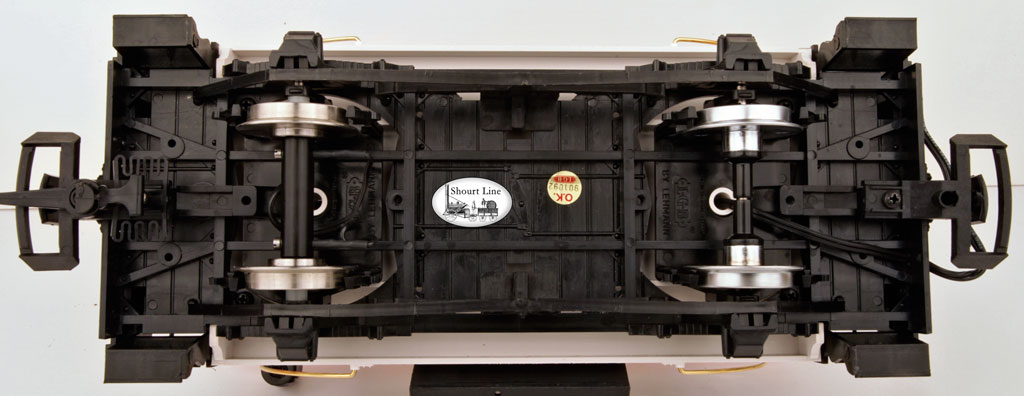

This photo shows a PIKO 36167 single axle ball bearing power pickup connected to an SL-4128510 Power Connector Cable power pickup cable that routes inside the car to provide power for lighting. (train, track figures, LED controller and 4 LED fixture not included but available at our store.

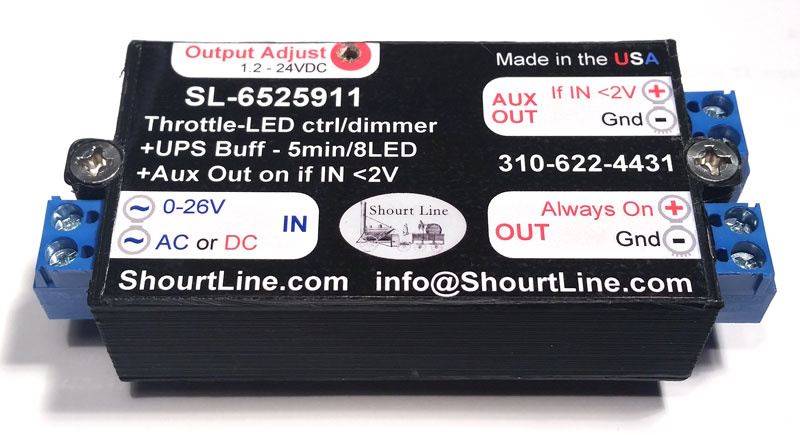

An SL LED controller can also be mounted on the bottom of a car and powered from a loco. The SL-6525911 lighting system provides; LED control/dimmer functions, a UPS circuit with a DC to DC changer and super capacitor bank for powering all 12 LEDs up to 3 minutes without track power, an Aux Out circuit as shown above that is wired to the exterior lamps so they automatically, slowly turn on when the train stops and go off when the train starts. The Automatic circuit has a special feature that smoothly brings the lamps to full brightness regardless of how fast the train stops. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
This photo shows the SL-6525911 LED controller system that provides; LED control/dimmer functions, a UPS circuit with a DC to DC changer and super capacitor bank for powering 8 LED lamps up to 5 minutes without track power, and an Aux Out circuit shown above can be wired to exterior lamps so they automatically, slowly turn on when the train stops and go off when the train starts. The SL-6525911 LED controller circuit has a special feature that smoothly brings the lamps to full brightness regardless of how fast the train stops. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
It is easy to wire the 1 LED lighting fixtures to any existing Shourt Line lighting fixture powered by an SL LED controller because the controller requires all LEDs are wired in parallel, + to + and - to -. No dropping resistors are need or complicated formulas. Just wire + to + and - to - on existing fixtures or to any SL LED controller. Up to 300 LEDs can be powered from each SL LED controller. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
All the trains car lighting can be controller and powered from a single SL controller if desired. Use the SL 2 or 3 pin LED connector, the 3 pin version allows independent operation of exterior lights and is shown below. The connectors have a fast release feature in case of derailment so wires can not be damaged. (train, track figures, LED controller and 4 LED fixture not included but available at our store.

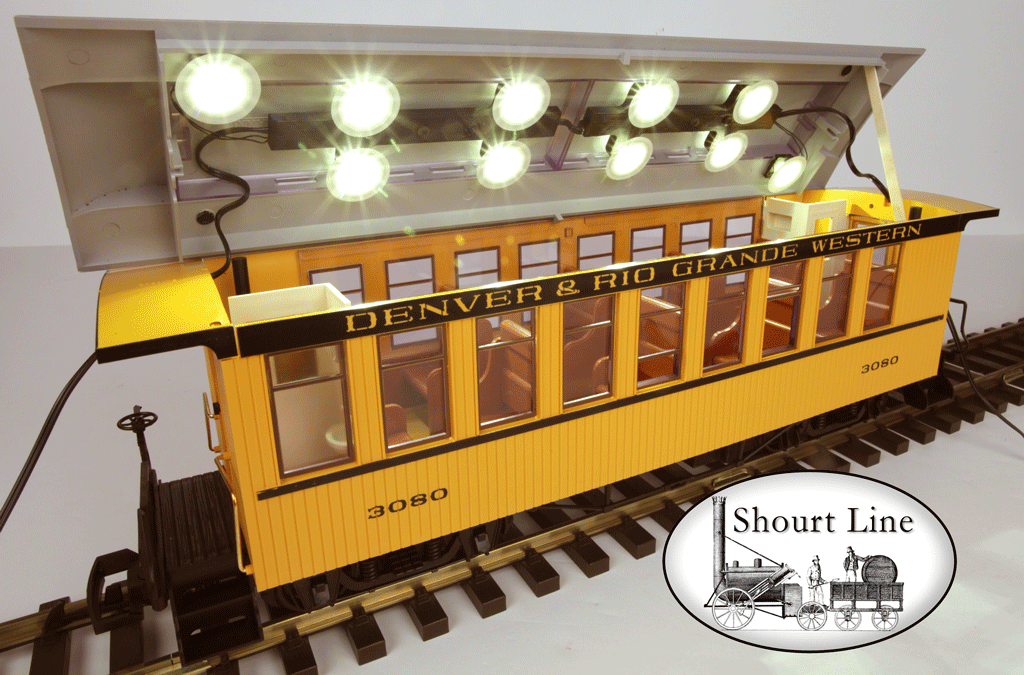

Notice that the SL-8291230 low profile fixture allows car doors to move freely. This photo shows the 3 pin connector at the front of the blue 2nd car. (train, track figures, LED controller and 4 LED fixture not included but available at our store.HINT: when wiring from car to car route the wires low on the car for a prototypical appearance. This view of a passenger car with bottom mounted controller is connected with LGB power plugs that match power plug on the rear of the loco. (train, track figures, LED controller and 4 LED fixture not included but available at our store.

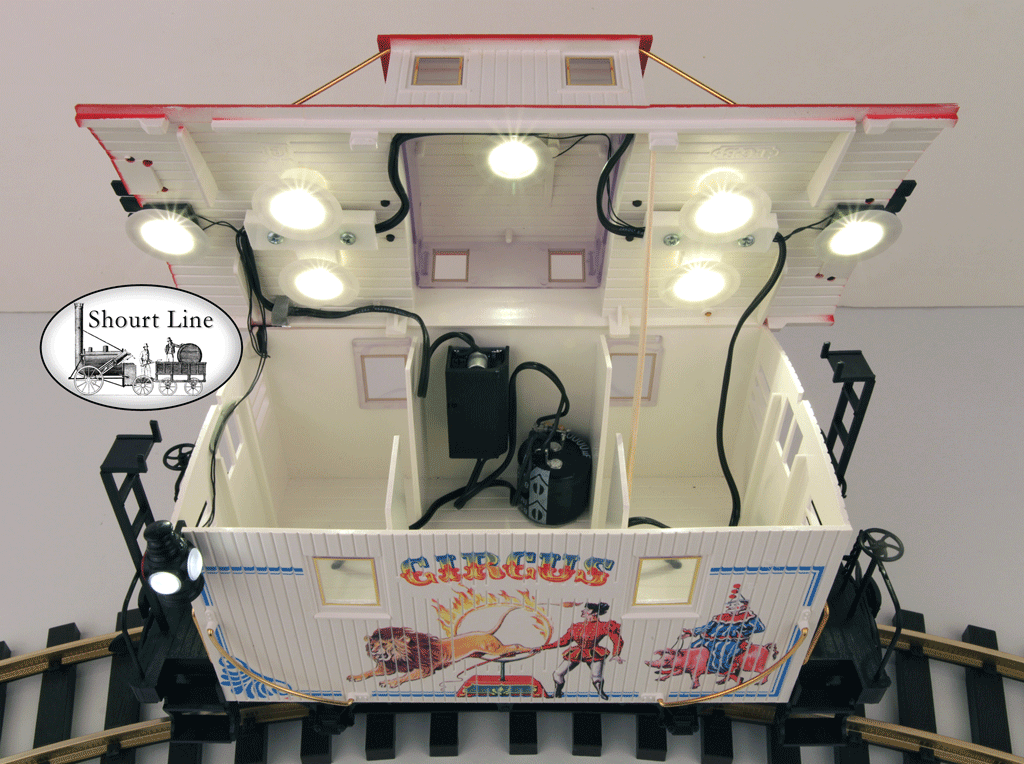

Notice that the 1 LED Opal Lamp fixture is wired in parallel to the existing SL 4 LED lamp fixture which in turn is wired to the all in one controller/dimmer, UPS and Aux Output that is on when the train stops. (train, track figures, LED controller and 4 LED fixture not included but available at our store.
Photos:

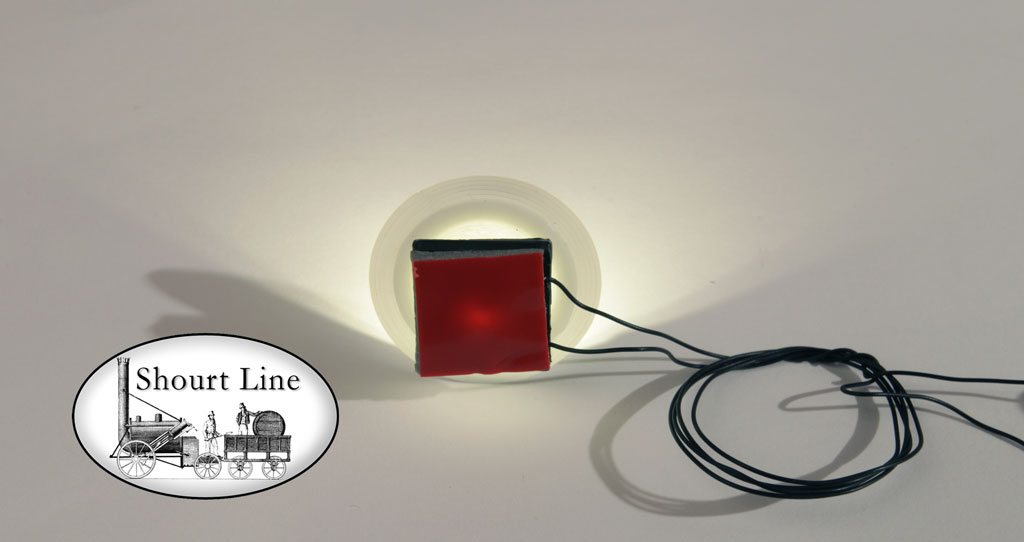

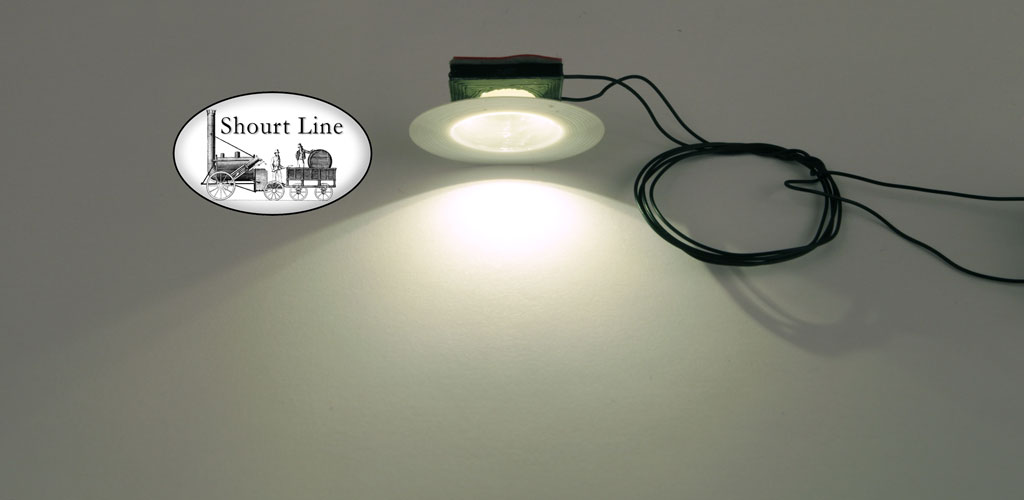

Easy to use peel and stick single LED Tiffany style Opal Lamp Fixture.
Don't leave your passenger in the dark! Use these single LED Lamp fixtures where you need light.
(train, track figures, LED controller and 4 LED fixture not included but available at our store.
Questions? Phone 310-622-4431
