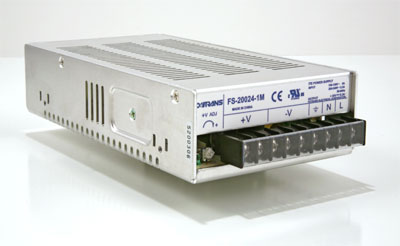

SL-PS200-1-27 New 24 Volt DC, 8.3 Amp, 200 Watt - Pure DC

DC Regulated Switching Power Supply for Any Scale Trains - Analog DC or MTS DCC use.

Price: $64.95 New MSRP: $129.95

(Click here to confirm the price at US distributors web site - see the last item on the bottom of the page)

Features:

The SL-PS200-1-27 regulated switching power supply outputs 24 volts at 8.3 amps. This supply matches the Digitrax DCS-200 8 amp booster/central station as well as our analog throttle SL-TLC1 (Click here to view) for DC operation.

PFC enabled efficiency: Click here to learn why PFC saves you $$$
Specifications:
Mfg: Made in the Taiwan by Potrans (click here to view pdf Mfg. Specification Sheet).

Input Voltage: 120/240VAC 50/60Hz (Switch Selected)

Input Current: 5 Amps(120VAX) 3.3 Amps (240VAC)

Output Voltage: 24Volts (Front pannel adjustable from 18.4 to 27.4 VDC)

Output Current: 8.3 ADC (DC Amps)

Output Current: 200VA (200 watts)

Output Ripple: 150 mv (millivolt) Max. / 2 mv Typical

Dimensions: 9L" x 4.5W" x 2"H

Weight: 4 Oz.

Specifications:

  • Enclosed regulated switching supply.
  • Over Voltage protected
  • Current protected
  • LED output indicator
  • Terminal strip In/Out
  • PFC - Energy Efficient Switching Supply

Safety approvals: ULusa/canada/CE listed.

Mounting: 4 ea. 8-32 threaded mounting holes on bottom & right side of case for easy mounting.

Cables: not included. (All cables are included in the SL-PS200-1-27&TLC1cv SET (click her to view)).

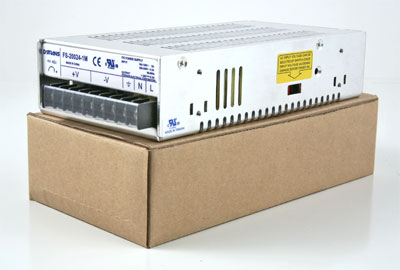

New

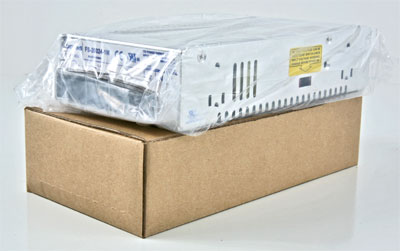

  • Factoy Sealed

Easy to adjust output voltage via front pannel

  • 27.4 Volts Maximum

  • 18.4 Volts Minimum

Low ripple and noise

  • 150 mv Max.
  • 1.8 mv Typical
Options:

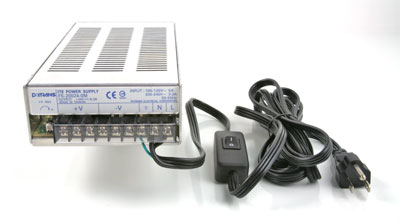

SL-AC-10SW A10' AC Cord & Switch: sold out
  • UL listed
  • 10 feet long
  • 3 wire cable
  • Molded three prong AC plug
  • ON/OFF switch located 1 foot from the end of the cable.
  • Rated 300 Volts,
  • 105 deg. C,
  • 18 AWG with a center green gound wire.

The cable is easly attached to the power supply using only a screw driver.

The ON/OFF switch makes controlling power to the supply very easy.

How to hook up and run your trains:
To Run Trains on DC power:
  1. Attach an AC grounded power cord to the power supply
  2. Attach 18 guage wires between the supply and our SL-TLC1cv DC throllte
  3. Attach wires between the SL-TLC1cv and your track.

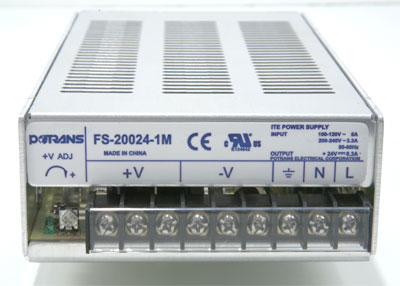

This combination provides 200VA of power and 24VDC PURE LINEAR POWER at 6 Amps continuous/8.3 amps peak. Maximum power supply output voltage can be adjusted from 18.4 to 27.4 Volts DC by turning the adjustment control on the supplys front pannel. (see photo below)
The power supply is perfect for use with our TLC1 Throttle shown above with track clips in our SL-PS200-1-27&TLC1 SET (click her to view). The +V Adj contol on the font pannel makes this the perfect 8.3 amp 17.4 to 27.4 Volt DC Power supply for DC or DCC (MTS) power.

To Run Trains on MTS/DDC power:

  1. Attach an AC grounded power cord to the power supply. (see optional cord above)
  2. Attach two wires between the supply and your DCC central station or booster (Massoth DiMAX 800Z shown).
  3. Attach wires between the DCC central station or booster and your track.
  4. Plug in the power supply

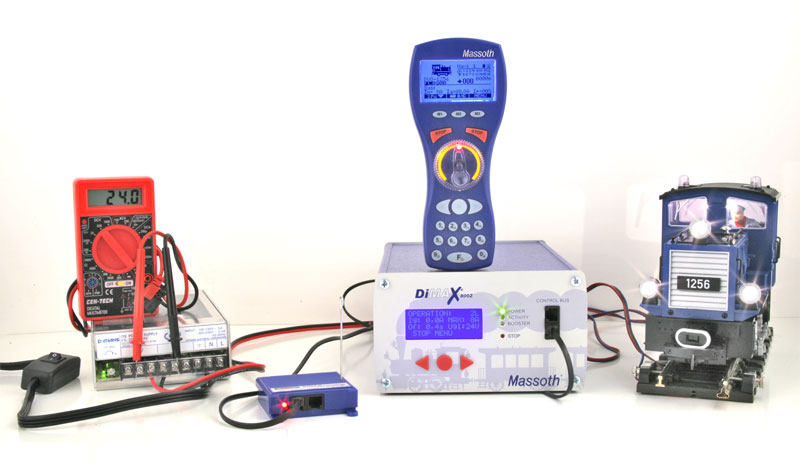

SL-PS200-1-27 + Massoth DiMAX 800Z = ULTIMATE WIRELESS LGB MTS & DCC TRAIN CONTROL

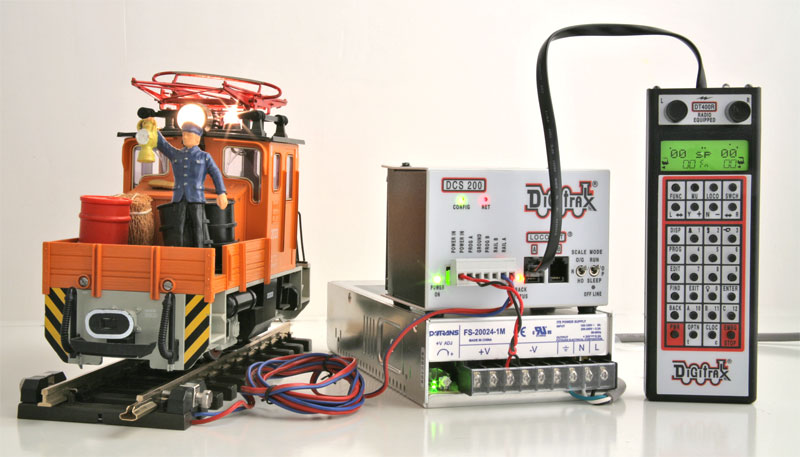

SL-PS200-1-27 (8.3A) + Digitrax DCS 200 = Wireless DCC Train Control
