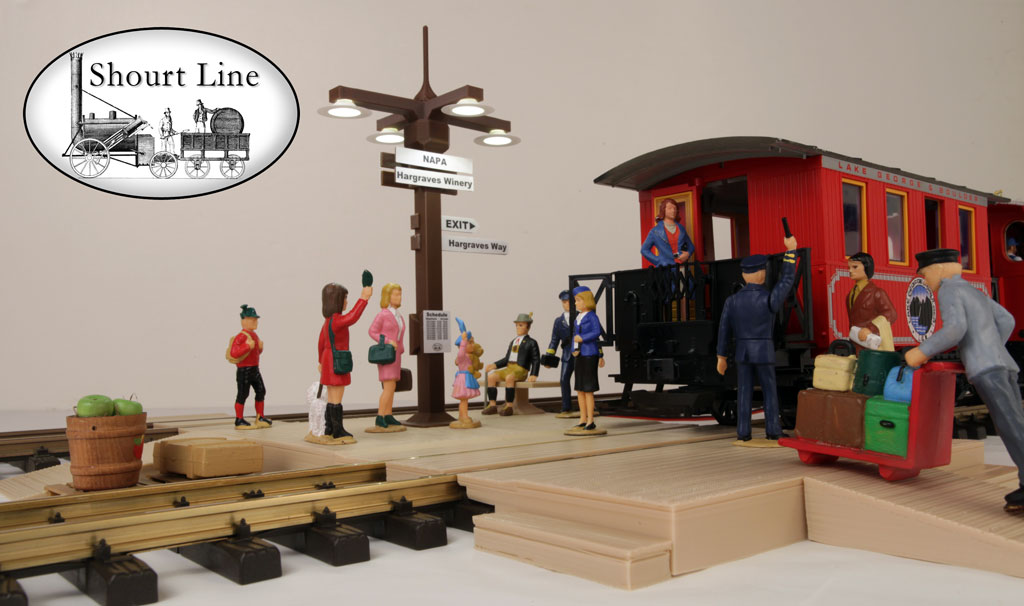

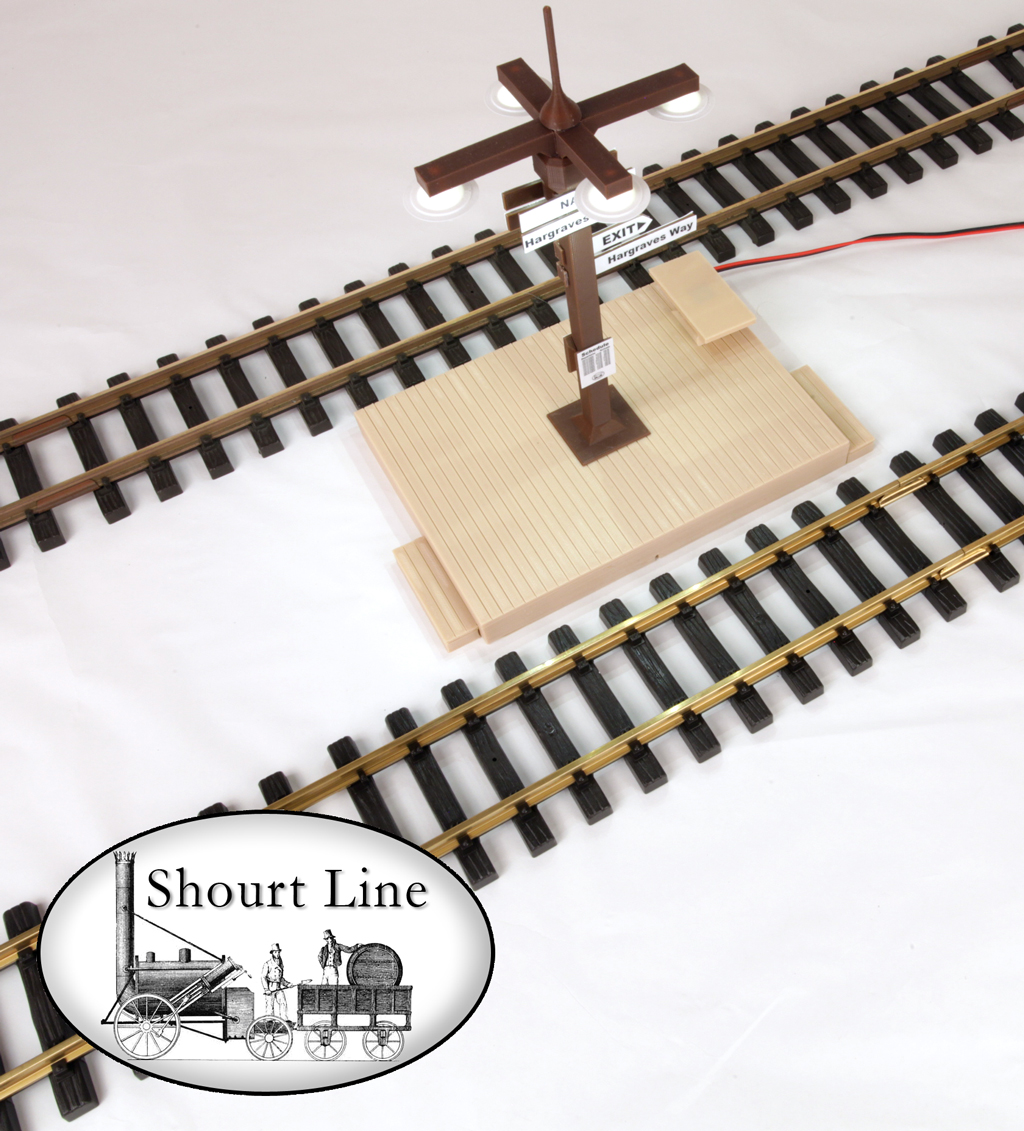

SL 7143550 Station Platform with center mounted SL 8303550 Lamp post with 4 LED Tiffany Opal Soft White Light Fixture + 2 steps
Full platform illumination is provided by 1.5 & 2 inch arms from the center top of the post.
(The track is not included but available at the Shourt Line)

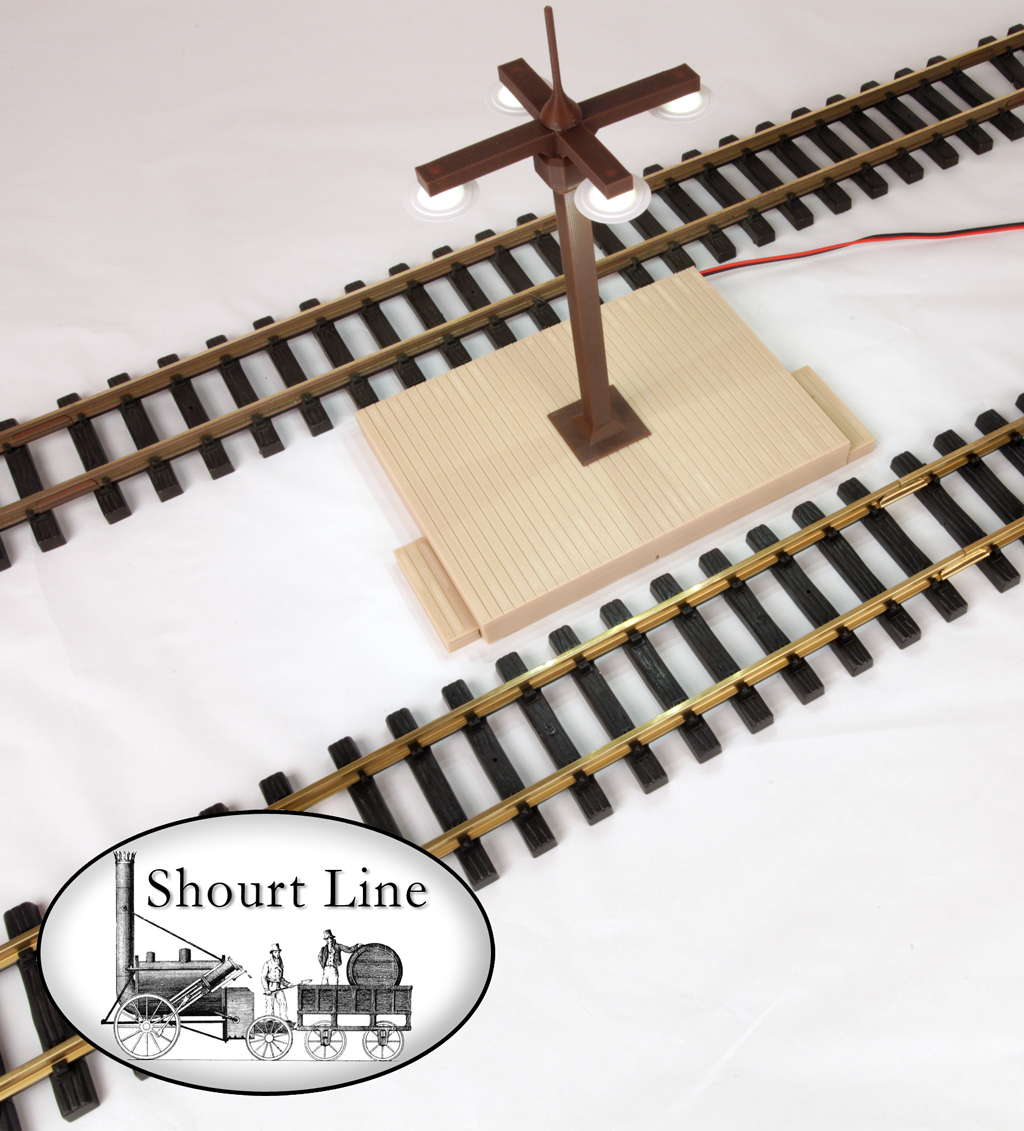

The SL 7143550 shown above, includes a mounted SL 8303550 Lamp Post with 4 LED Tiffany Opal Soft White Light Fixture plus 2 each Steps (1/2 platform height -(9.5mmHx60mmW).

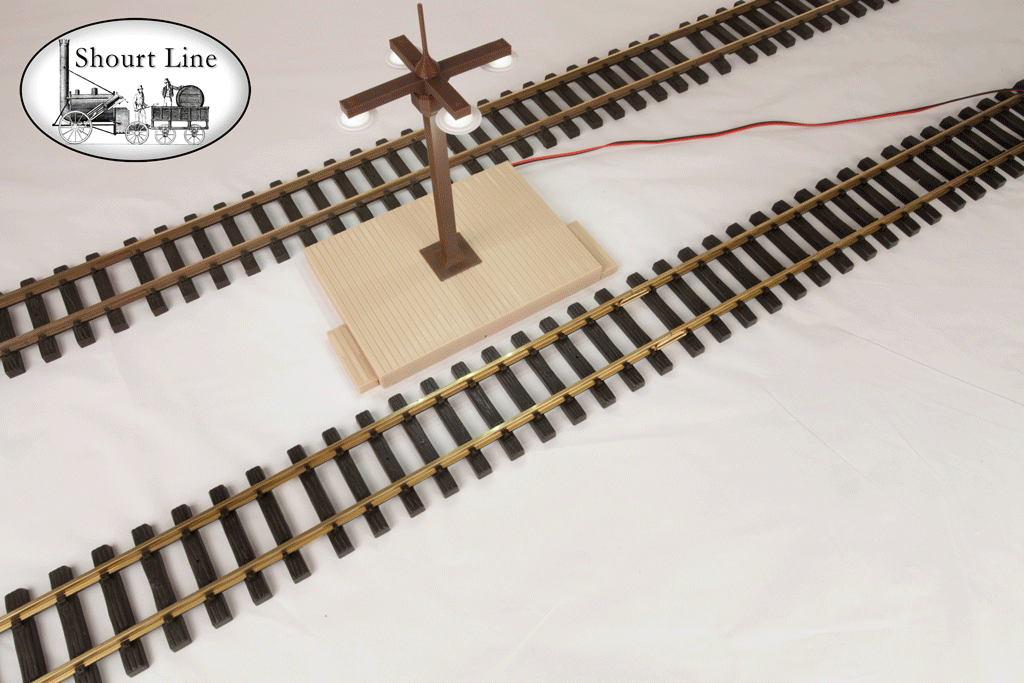

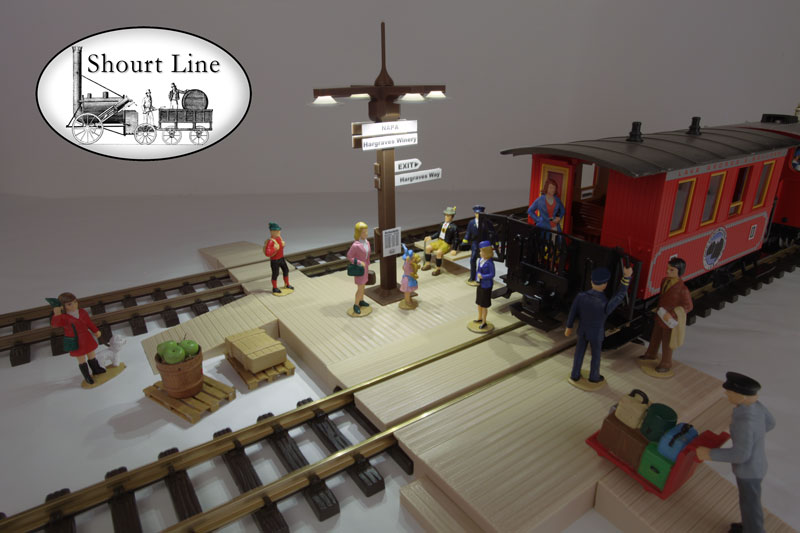

Below is an animation showing some ways to customize your SL 7143550 Platform Station using SL Platform Parts.
(The track, figures, train, loads,optional platform parts,and signs on the lamp post are not included but available at the Shourt Line)
Shourt Line Direct Discount Price: $89.95 NEW
Details:
The SL 7143550 Station Platform comes with a center mounted SL 8303550 Lamp post with 4 LED Tiffany Opal Soft White Light Fixtures + 2 steps. The bottom of the platform is hollow for mounting electronics and has a center hole that matches the hole in the platform top late. A machine screw is included that runs through a 22mm high tapered plug for a tool free installation of the wire SL 8303550 lamp post and 4 LED Tiffany Opal White Lamp Fixture. Full platform illumination is provided by 1.5 & 2 inch arms. See photo below showing the station platform with plug. The plug has a channel for running the wires to the interior of the platform where an optional SL LED controller be mounted for running up to 300 SL LED fixtures.
The 19mm platform height was chosen to match the 19mm distance between steps on G Scale passenger cars and trolleys. The rail height is below this height so our optional SL 7100003 3 piece track bridge and optional SL 7100007 3 piece: 60mm wide platform & bridge gently slope to match the top of the rails and the top of the center bridge between the rails. This allows passengers, carts and vehicles to move easily and safely over the tracks.
Here is a list of the parts that come with the SL 7143550 Station Platform with lamp post mounted Tiffany Opal White Lamp shades..
- Assembled Station Platform
- The inside of the platform is hollow for SL LED controller and wiring
- There are four mounting tabs built into the bottom corners for mounting with:
- Cement
- 3M adhesive tape
- or by using the four each 4.7mm diameter holes with
- screws for layout baseboard
- Common nails for earth anchoring
- SL plastic ABS spikes
- The Platform has channels built in for easy wire routing between platforms and to power.
- A screw is provided for holding the top of the platform and the lamp post mounting plug to the base.
- The 22 mm high mounting plug is tapered to hold the lamp posts base securely without tools.
- The mounting plug has a channel that matches a 2nd small in the top of the platform for passing the LED power wires into the base of the platform.
- Platform top
- Simulated pine wood grain textured planks.
- Two holes, one in the center for mounting to base and a second small hole for wire routing into the base. The lamp post hides the mounting screw wires and plug when pushed onto the base by hand. The plug allows the lamp post to be removed from the base for safe compact storage and shipping.
- Lamp Post
- Has a tapered base that slides over the mounting plug on the center of the platform for a tool free assembly.
- The top of the post has a inside bevel for easy secure connection to the 4 LED lighting fixture.
- Is hollow inside for hiding and holding excess wire making it easy assemble or disassemble and store
- 4 LED Lamp fixture
- Has 4 arms each with a Tiffany Opal lamp shade and each with a warm white parallel wired LED
- The length of each arm is designed to provide even platform illumination
- The arms are 35mm for the platform width and 50mm for the platform length.
- The arms are hollow to hid the wring and make it weather proof
- Each arm has a press fitted lamp shade to keep the wiring weatherproof
- Each lamp shade has a press fitted LED to keep the wiring weatherproof
- Extra power wire is provided so the lamp post can be removed from both the base and the 4LED lamp fixture.
- Top plug with spike
- The spike simulates an "antenna and lightning suppressor"
- The top plug can be removed buy pulling straight up
- The top spike can be cut off if desired to lower the height of the fixture
- The top of the lamp post can be pulled off the bottom of light fixture so both the post and light fixtures can be laid on the top of the platform for safe compact storage and shipping.
Features:
Easy install - Works with any LED SL lighting fixture.
- Indoor outdoor weatherproof
- Low Cost
- Made in the USA
- ABS high temperature plastic
- Easy setup and storage: The lamp post lifts off the base and the lamp fixture lifts off the post for compact storage
- The top of the platform is secured to the base with a threaded machine screw that also holds the post adapter to the base
- The base has room for our optional LED controller that can power up to 300 LEDs
- 1 year warranty
Specifications:
- Size:
- the Platform is 200mm long x 150mm wide x 19mm high for safe passenger loading and unloading
- Lamp post with 4 LED Tiffany Lamp fixture overall dimensions are 130mm long x 100mm wide x 228mm High
- Voltage: 3.1 volts max
- Amperage: 84 ma max
- Color:
- Platform and steps are Pine wood color, texture with simulated planks
- Post and lamp head and arm fixtures are dark wood color
- Tiffany Lamp shades are opal white
Options: Use SL Platform Parts customize your station. All the expansion parts are ABS Pine Wood Color to match the SL 7143550 platform. The lamp posts, and the SL 7100008 8 piece Signage Set is ABS Brown Wood Color and includes printable graphics and instructions in a in a free download. See our price list on our home page for SL Price list for details and prices.
Optional SL Platform Parts:
Examples of how to use the optional SL Platform Parts:
- SL 7100001 1 Bench Seat w mounting post mount and screws for platform base mounting (optionally use 16d earth spike)
- SL 7100002 1 Ramp slopes over 100mm to ground, Size:19H x 60W x 100L mm, simulated pine wood
- SL 7100003 3 pcs Track Bridge: one center platform (between rails) & two side walkways over ties - for ramp or platform connection
- SL 7100004 4 each Steps (1/2 platform height - 9.5mmHx60mmW) wood grain
- SL 7100005 2 each 16d Plastic Spikes for earth mounting of lamp posts and/or benches
- SL 7100006 1ea Platform Raiser 19H x 60W x 148L mm simulated pine (Can be used for passenger car exit to ground)
- SL 7100007 3 piece set Mini Platform with Walkway, Bridge, & Walkway: 1 ea SL 7100010 Mini Platform with Walkway 200 x 90 x 19mm, 1 ea Bridge between rails - 200 x 35.5 x 9.25mm height = top of rail, and Walkway 200x30x19mm height (SL Platform height). All Walkways slope to the height and outside edge of the the track rails. Overall size on track is 200 x 174 x 19mm.
- SL 7100008 8 piece Signage Set - each sign snaps onto lamp post; 4ea Station Name 2 ea Schedule, 1ea Exit, 1ea Street Name - Signs come without graphics, A free graphic template download for printing names of your choice, sample graphics and instructions are included in the download.
- SL 7100009 2 ea 12d Plastic Spikes with 4.2mm dia. for earth mounting of platform, lamp post, and/or benches
- SL 7100010 Mini Platform with Walkway - length and height matches SL Platforms. Fits over the ties on one side of the track and slopes to the height and outside edge of the rail. Overall size: 200mm L x 90mm W x 19mm H. solid inside. Use with SL 7100002 Ramp, SL 7100004 Steps to make a mini rural station or trolley stop.
- SL 7100100 Platform LED Dimmer DC IN, PWM OUT = 0 to 100% 5 Amp mini PWM LED Dimmer 20Khz high efficiency with terminal blocks. Pine wood color dimmer knob to match SL Plat from. Mounts inside platform and is wired to an SL LED Controller for easy ON/OFF and safe dimming control up to 300 LEDs..

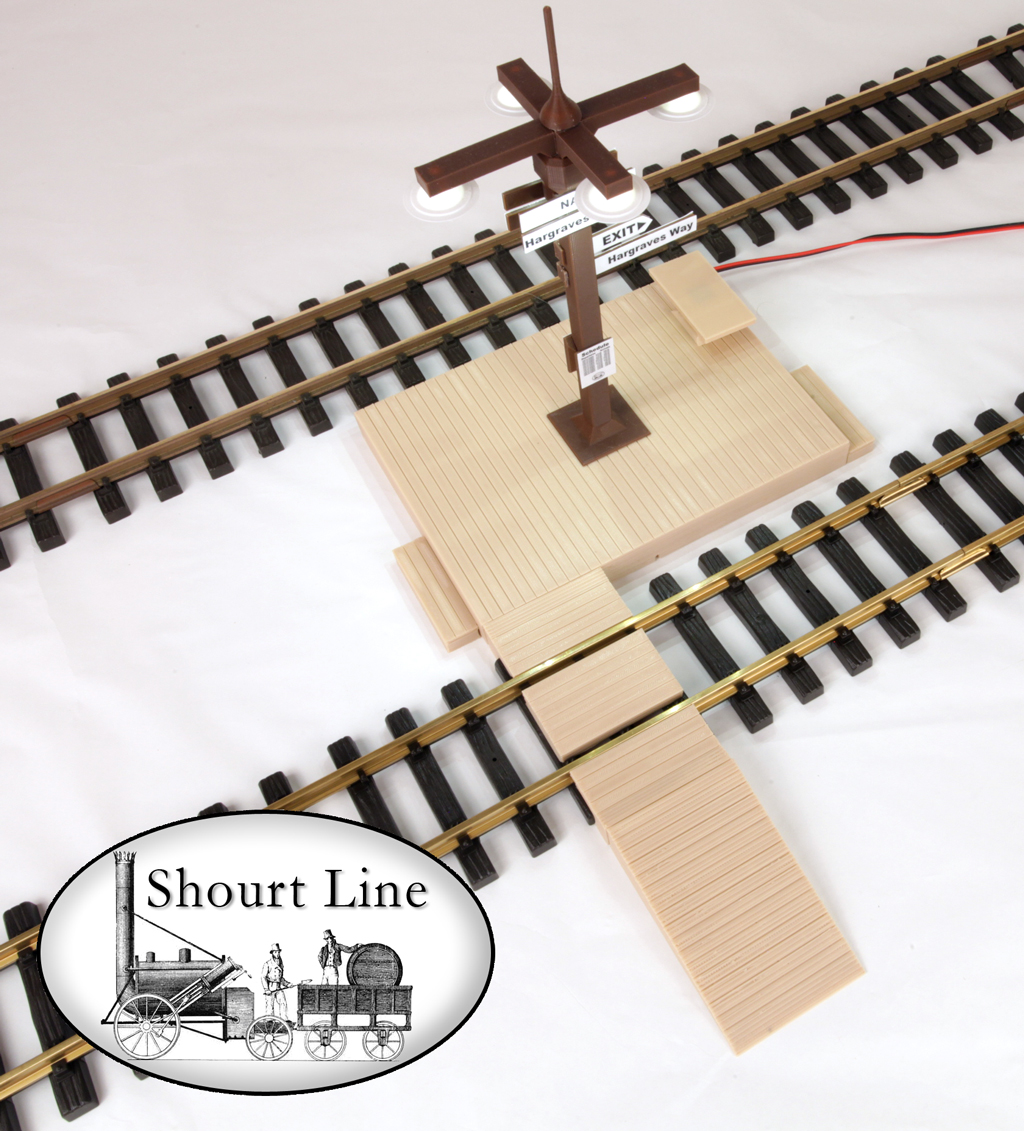

(The track is not included but available at the Shourt Line)The photo above shows the SL 7143550 expanded with the following SL Platform Parts:
- 1 each SL 7100001 Bench Seat w adapter and screws for mounting to the platform or other surface.
- 1 each SL 7100002 Ramps that provide easy access to platform heights
- 1 each SL 7100003 3 piece track bridge, one center platform (between rails) & two side platforms over ties - for ramp or platform access
- 1 each SL 7100008 8 piece Signage Set - Sign snap onto lamp post, download template to print your choice of names

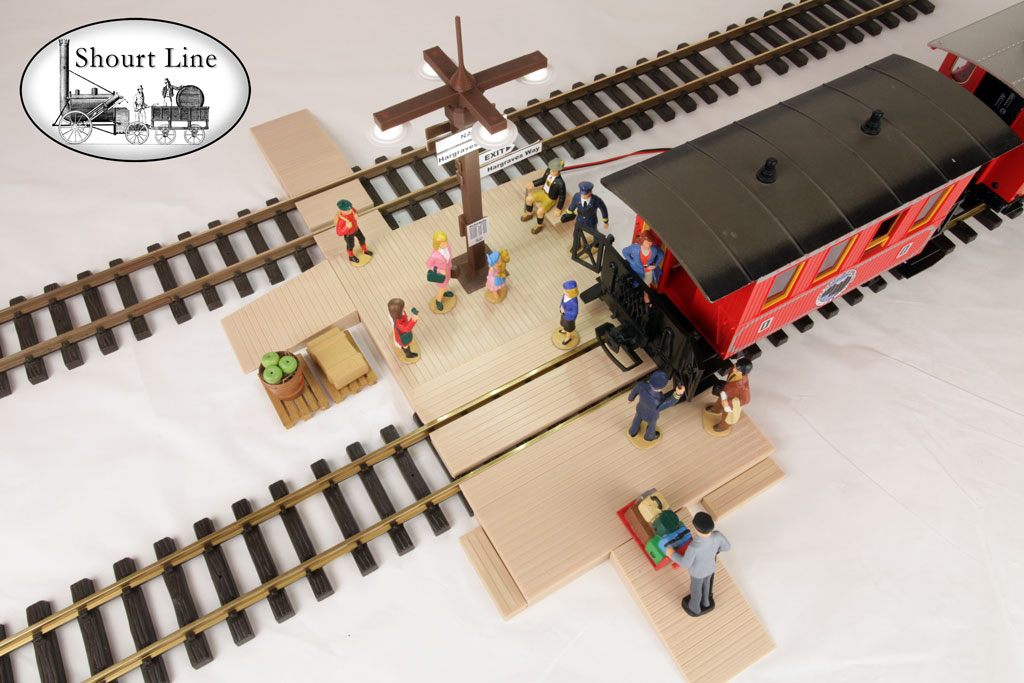

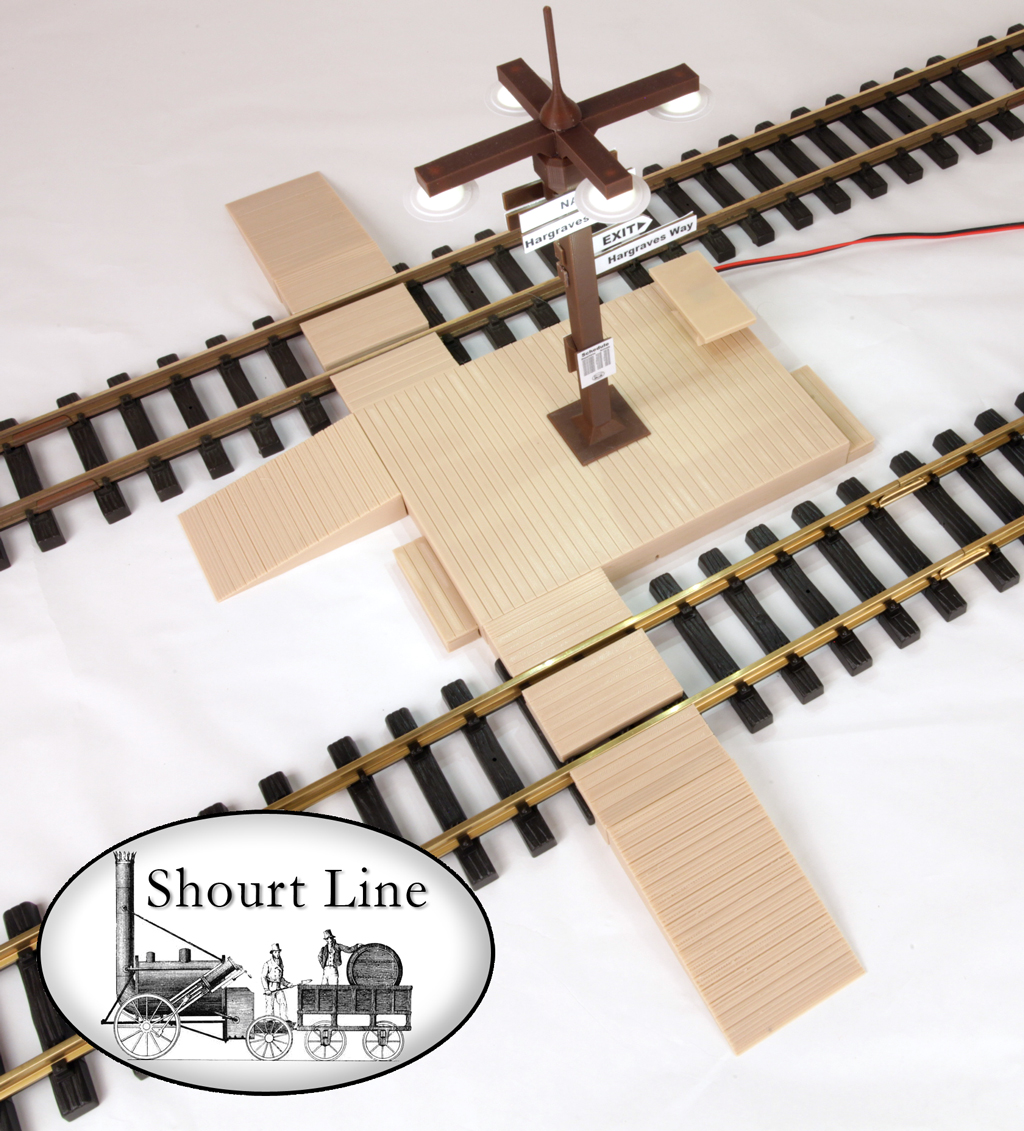

(The track is not included but available at the Shourt Line)The photo above shows the SL 7143550 expanded with the following SL Platform Parts:
- 1 each SL 7100001 Bench Seat w adapter and screws for mounting to the platform or other surface.
- 3 each SL 7100002 Ramps that provide easy access to platform heights
- 2 each SL 7100003 3 piece track bridge, one center platform (between rails) & two side platforms over ties - for ramp or platform access
- 1 each SL 7100008 8 piece Signage Set - Sign snap onto lamp post, download template to print your choice of names
(The track, figures, train, loads,optional platform parts, and signage on the lamp post are not included but available at the Shourt Line)

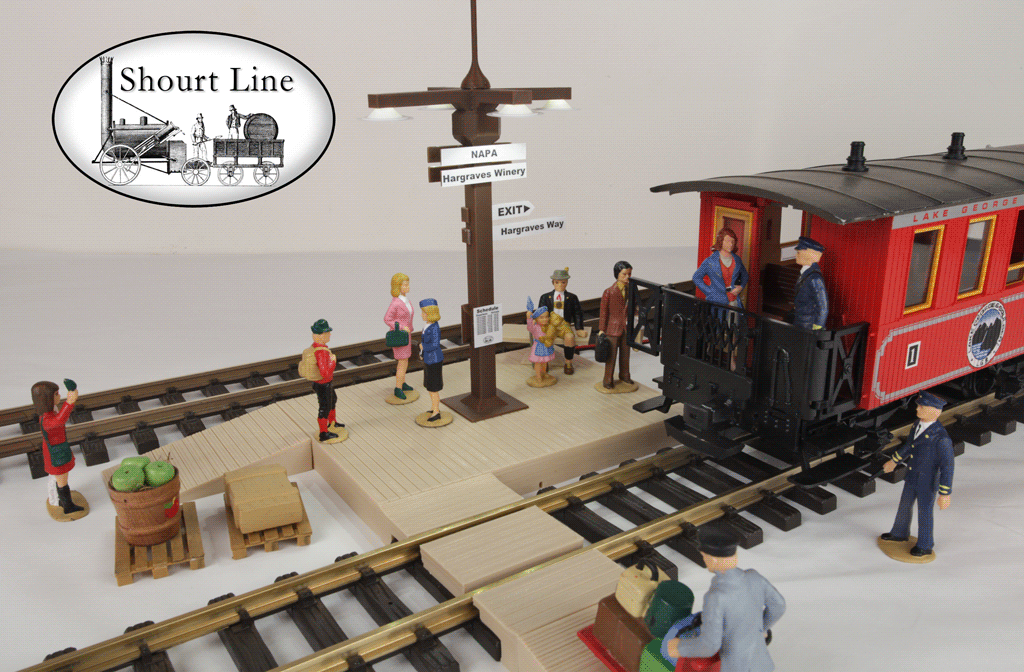

The above photo shows the SL 7143550 being expanded with the following SL Platform Parts::
- 1 each SL 7100001 Bench Seat w adapter and screws for mounting to the platform or other surface.
- 3 each SL 7100002 Ramps that provide easy access to platform heights
- 1 each SL 7100003 3 piece track bridge, one center platform (between rails) & two side platforms over ties - for ramp or platform access
- 1 each SL 7100007 3 piece: 60mm wide platform & bridge; 1 center bridge (between rails) & 2 side walkways (over ties) one side has 60mm wide platform. Overall size: 200mm L x 174mm W x 17mm H
- 1 each SL 7100008 8 piece Signage Set - Sign snap onto lamp post, download template to print your choice of names
(The track, figures, train, loads,optional platform parts,and signs on the lamp post are not included but available at the Shourt Line)The animated photo above shows the SL 7143550 expanded with SL Platform Parts and the illumination provided by the single SL 8303550 Lamp post with 4 LED Tiffany Opal Soft White Light Fixture that comes with the SL 7143550.
Optional SL 8453003 Precision Train Throttle & LED controller

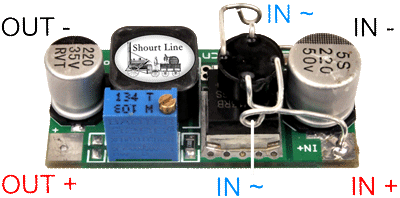

The Optional Shourt Line SL 8453003 Precision Throttle (shown above) has a 25 turn speed/voltage adjustment for stable regulated output regardless of changes to input voltage.
- Connect battery, track, or DC, AC or DCC power to the IN~ (AC) input solder connections
- Connect DC power to the DC input for even greater efficiency.
- Input: 0-30 volts DC, AC or DCC
- Output: Adjustable 1.2 - 30 Volts (1.5 volts less than input), 3 Amps, 15 Watts Max
- Use to power up to 300 SL LED opal lamps
- Set to 3.1 volts output maximum for LEDs before connecting to LEDs.
- Efficiency: up to 94% efficient
- Protection:
- Short Circuit
- Over Temperature
- Micro Size: 43mm long X 20mm wide X 14mm high
- LED controller Instructions and precautions:
- When powering LEDs always set your output voltage to the maximum LED forward voltage (3.1 volts for Shourt Line warm white LEDs) and the maximum LED current
- Never connect input to more than one power source.
- Never connect a power source to the output.
- Clean the surface with an alcohol wipe prior to using the 3M adhesive pad included with many models of the Precision Throttle and LED controller.
- Provide adequate ventilation when powering over 2 amps or 10 watts of load
- When used with a decoder, always connect the negative input to decoder GND
- Not a toy; keep out of the reach of children, can cause choking due to the small size.
Use the Shourt Line Precision Throttle & LED Controller to power dozens of our SL LED ceiling lighting fixtures from Battery, Analog and/or DCC track power.
This is a common problem with all other lighting products today. Because a white LED uses only about 3 volts but the track voltage can be as high as 22 volts, the difference between 3 and 22 volts or 19 volts is wasted as heat. This is booth inefficient, 19/22 or 86% of track power goes up in heat, and when track power is say lowed to 6 volts at slow train speeds with analog power the output of the light is reduced by (22-6)/22 or 73% while each dropping resistor still wastes power. Because most other lighting products only light a strip along the center of the car they create uneven lighting, particularly in the seating areas and at the same time they over light the center isle where the LEDs as located. The SL-8133230 31 LED 3 Drop Ceiling Lighting fixture also provides two Amber Toilet LEDs and 2 Red LEDs for the tail lights. Additional LEDs may be added by you at any time by simply wiring in parallel to the existing LEDs. One SL-8133230 can power as many as 12 passenger cars with SL-8133230 31 LED drop ceiling fixtures installed.
Prior to the induction of the Precision Throttle and LED controller we at the Shourt Line had to versions of each lighting product; one for DC (analog) uses and one for DCC users. This was necessary in order to efficiently at low track voltage and high track voltage respectively. We now have a version of drop ceiling lighting boards for use with the new Precision Throttle and LED controller that is the only product that can work efficiently with both low and high track voltage.
The micro size allows the Shourt Line Precision Throttle & LED Controller to fit between the drop ceiling and car roofs or can be mounted inside or under cars. For outdoor under car mounting use our weather proof SL- 8552403 Weatherproof model.
Simplify all your loco, car and layout lighting with the SL 8453003!
For complete application notes and set-up instructions click here
The SL 8453003 features a built in AC to DC rectifier for connecting to the track power using DC (analog), DCC or AC at 3 to 30 volts.
Flicker Fee LED operation from track voltage: All models of the Shourt Line Precision Throttle and LED Controller have build in buffers, for more than 4 LEDs simply add a capacitor to the IN+ and IN- outputs for flicker free lighting from track power via wheel pickups. Use a 25V or higher Electrolytic Capacitor; 50uF/LED, (30 LEDs = 1,500uF, 300 LEDs use a 15,000 uF capacitor) To keep your LEDs working when a train stops on analog track power use 500uF/LED/second of operation; Use the SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt -UPS (shown below) for analog power and 20 minutes/LED of operation.
Photos:
(The track, figures, train, loads,optional platform parts, and signage not included but available at the Shourt Line)

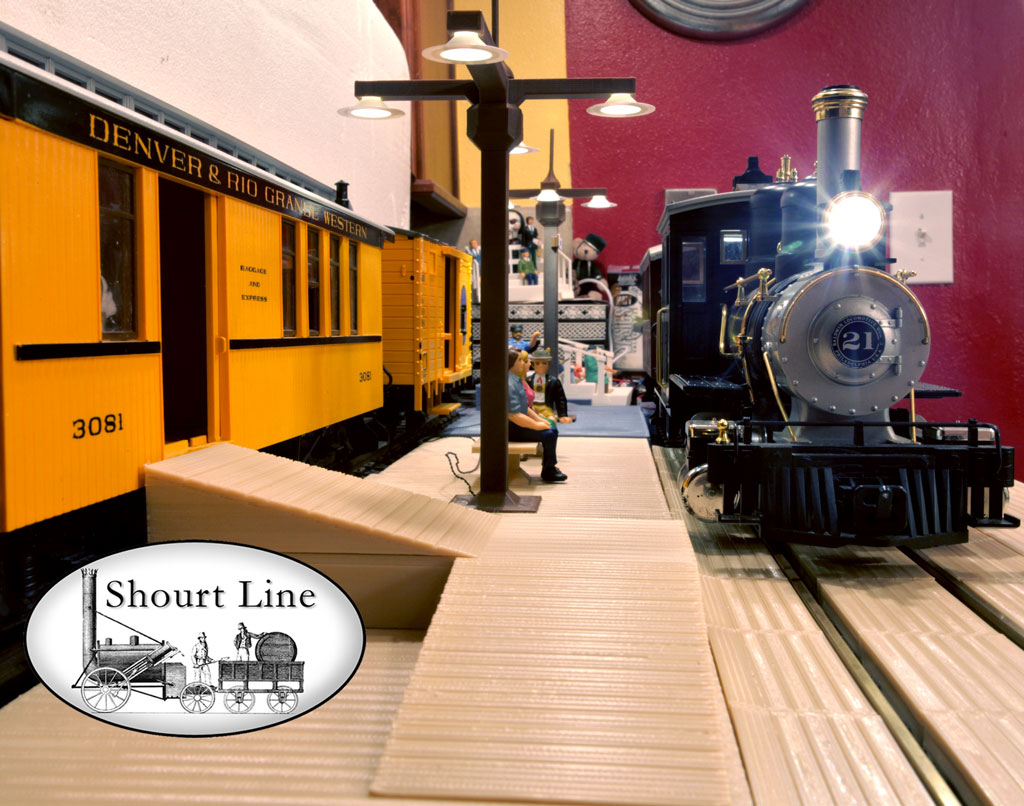

The eye level view above shows how the optional SL 7100007 3 piece 60mm wide platform & bridge; fits on the ties of any straight G scale track to provide a flat platform for passengers to walk. The 3 piece set includes; 1 center bridge (between rails) & 2 side walkways (over the ties) one side has 60mm wide platform whore you can see the cart passing from the ramp to the platform. Overall size: 200mm L x 174mm W x 17mm H
(The track, figures, train, loads,optional platform parts,and signage is not included but available at the Shourt Line)
The photo above shows a station view with several optional station parts, an SL 7100006 platform raiser is placed on top of a platform and 2 each SL 7100002 1 Ramps are used to create a loading ramp for loading a box car. The scene is illuminated by an SL 8305000 4 LED Lamp Post w 2 ea. 2 in. arms & 2ea 4 in arms that provides light across 3 platforms.
This video shows the side view of the station as a loco pulls into view. Note the ramps on top of the station for loading freight. Several optional station parts, an SL 7100006 platform raiser is placed on top of a platform and 2 each SL 7100002 1 Ramps are used to create a loading ramp for loading a box car. The scene is illuminated by an SL 8305000 4 LED Lamp Post w 2 ea. 2 in. arms & 2ea 4 in arms that provides light across 3 platforms.
(The track, figures, train, loads,optional platform parts,and signage is not included but available at the Shourt Line)

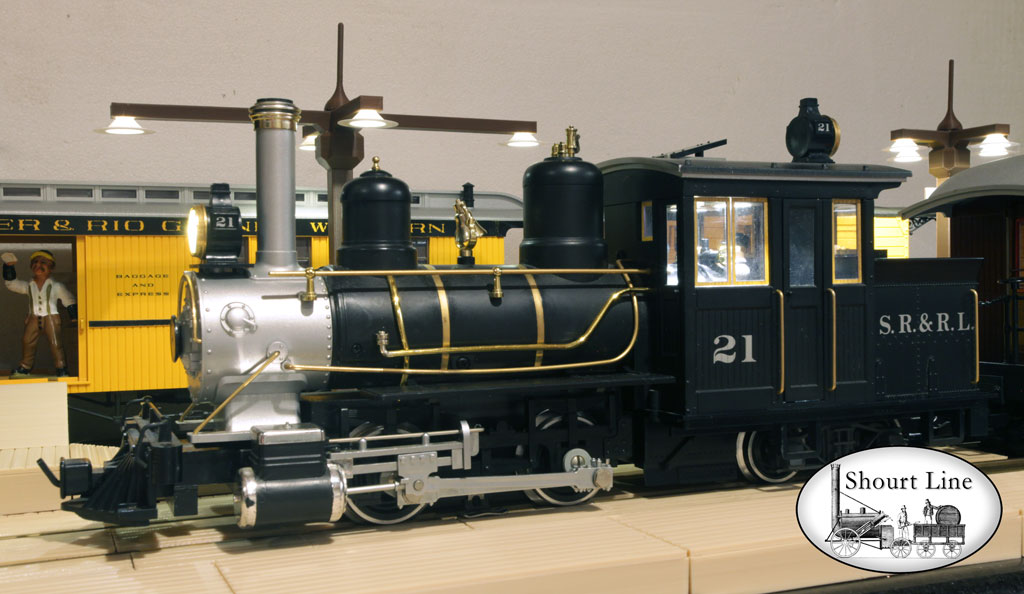

The photo above shows a side station view where an SL 8305000 4 Tiffany LED lamps; 2 ea. 50mm (2 in.) arms & 2ea. 100mm (4 in.) arms that illuminate the non-lighted platforms on either side of the lamp post. Notice the long arms provide lighting for the loading ramp in the two photos above.
(The track, figures, train, loads,optional platform parts,and signage is not included but available at the Shourt Line)

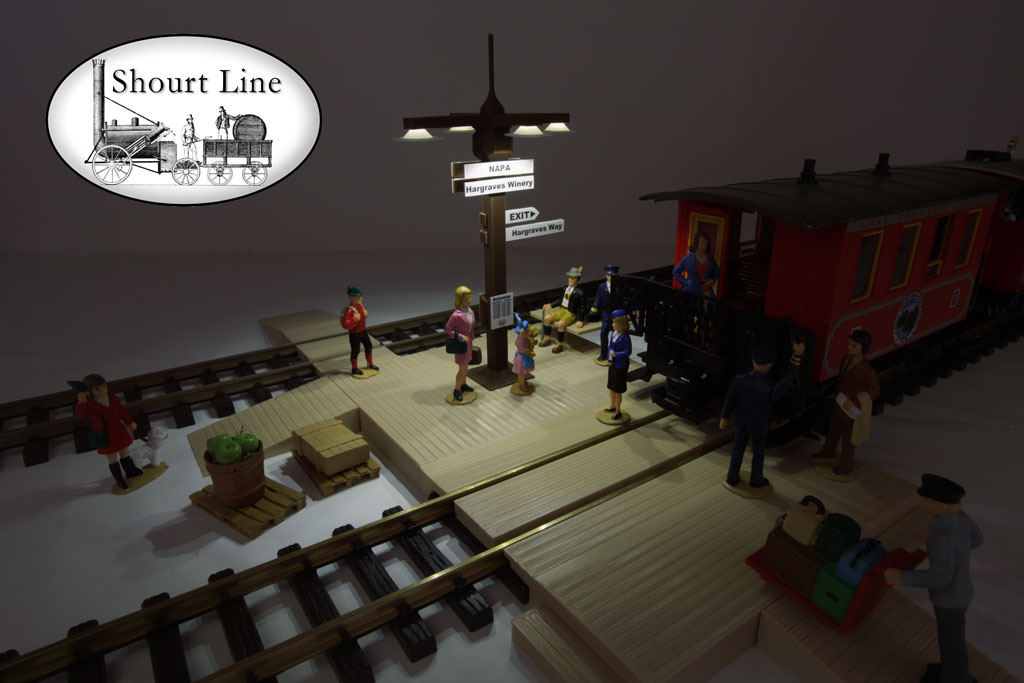

Here you can in total darkness, the SL 8303550 4 Tiffany LED lamps evenly illuminate the entire platform and surrounding area.
(The track, figures, train, loads,optional platform parts, and signage on the lamp post are not included but available at the Shourt Line)

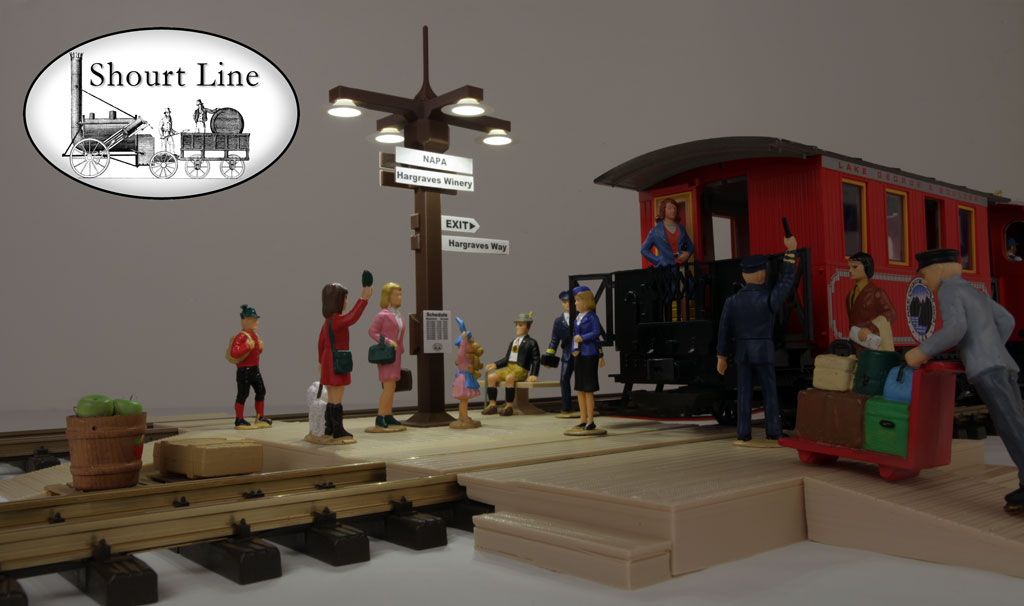

Here you can see how at dusk or dawn, the 8303550 4 Tiffany LED lamps evenly illuminate the entire platform and surrounding area.
(The track, figures, train, loads,optional platform parts,and signage is not included but available at the Shourt Line)
(The track, figures, train, loads,optional platform parts,and signage is not included but available at the Shourt Line)
Note the SL 7100007 3 pcs 60mm wide platform & bridge in the photo above can be seen to gently slope down to the rail height so carts, vehicles and travelers can walk over the rails and ties without tripping.
(The track and SL 7100008 8 piece Signage Set is not included but available at the Shourt Line)
The SL 7143550 Station Platform with center mounted SL 8303550 Lamp post with 4 LED Tiffany Opal Soft White Light Fixture + two steps is ready for passengers.
All aboard!
