Massoth Wireless 12 amp DCC Starter Set for MTS and DCC

Just add power you can be running MTS, DCC and conventional analog trains wirelessly in minutes.

Imported from Massoth Germany by the Shourt LIne, the #1 Authorized Massoth Dealer in the USA for 4 years running

Set includes: Massoth 12 amp 1210Z central station, Wireless receiver and Wireless Navigator - shown above (loco, power supply and track are optional and available at our store)

$1499.95 NEW Direct Shourt Line Discount Price

Set Features:

• LGB MTS and NMRA DCC full compatibility
• Easy Setup
• Easy Operation
• Easy programming of all your MTS and DCC decoders
• Free and easy firmware updates via the included 1210Z central station
• Extended Warrantee from the Shourt Line
• Automatic Programming of your trains WITHOUT A PC Click here for details

This set includes the following new Massoth Items:

• DiMAX 1210Z 12 amp MTS/DCC central station with removable power/track/programming plug & manual
• DiMAX Navigator Wireless Bidirectional Throttle & 20' control cord (phone type) and manual
• DiMAX RC Receiver, aerial & 20' control cord (phone type) and manual

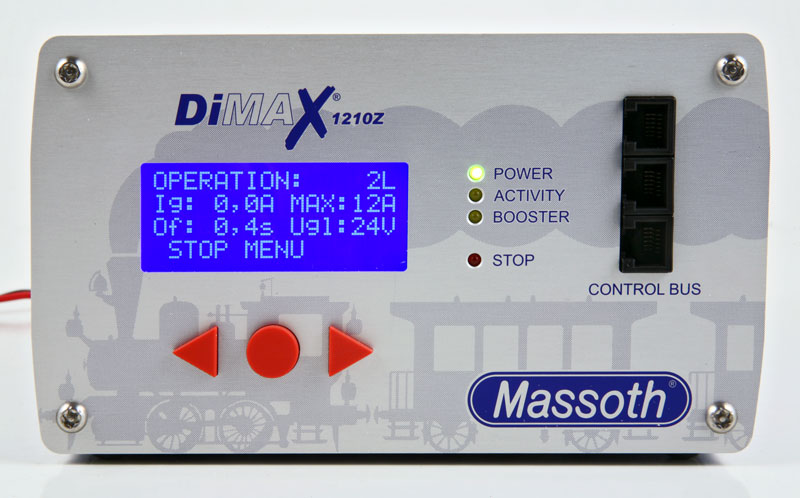

Massoth DiMAX 1210Z Central Station Details:

The DiMAX 1210Z Digital Central Station is a favorable alternative since it is built on the same technical properties as the DiMAX 1200Z. Up to 12 Amps driving current without an integrated transformer allows using the 1210Z for all scales from Z to G. Input Voltage: 16 to 24 Volts DC or 12 to 20 Volts AC. The current output can be adjusted to 4, 7, or 12 Amps. This option is desirable for smaller scales.

The 1210Z features a voltage limitation of 22 V which is the optimum for garden layouts which often suffer of voltage drops. This should not be a problem for decoders that are in compliance with the NMRA standard. This standard requires decoders to be able to handle voltages up to 27 V. Decoders of Massoth and LGB are tested for max 30V to be able to guarantee a stable and consistent operation.

A separate programming track outlet, booster connection and a user friendly PC Programming interface are integrated as well. The 1210Z provides a connector for LGB or DiMAX boosters on the back of the unit. Other NMRA compatible boosters may be used.

Properties of the 1210Z:

• Up to 12 Amps track current
• Adjustable max track current: 4 Amps, 7 Amps, or 12 Amps ;according to the needs of the layout
• Adjustable and stabilized output voltage from 14 - 22V
• External power supply with max. 20 Volts AC, or max. 24 Volts DC
  (Gauge N to G)
• Output current at 14-22 V : max. 12 Amps (only for G-Scale recommended)
• Easy to read display with blue background lighting
• Selectable parallel or serial data processing (may be defined individually for each locomotive)
• Thermal overload control / automatic overheat protection
• Temperature controlled fan
• Automatic short circuit protection (cut off time adjustable)
• Additional program track outlet ( 2 Amps max.)
• Operation control light
• Activity control light
• Booster control light
• STOP control light (supports MTS blinking emergency stop light)
• Push button with STOP function
• Easy to use menu control by 3 push buttons
• 3 connectors for peripheral units
• 1 booster connector for DiMAX and LGB boosters
• 2 Amp control bus for 31 input devices or control units
• Selectable control bus protocol: DiMAX Massoth or LGB MTS II
• Operational control by DiMAX Navigator or LGB MTS components ( Loco Remote, Universal Remote, etc..)
• PC Interface (RS 232) for firmware updates of all DiMAX bus components (central station, Navigator, etc.)
• Free firmware update downloads
• Massoth track protocol 100% compatible to NMRA DCC Standard
• Top quality aluminum housing
• Explicit operation manual, available as PDF download too

Dimensions: 170 x 100 x 245 mm

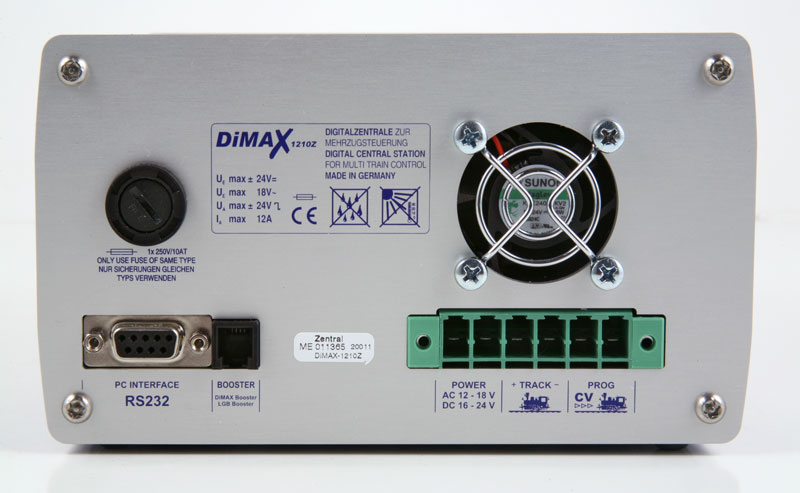

1210Z rear panel view showing power plug pulled out for easy unit transfer and access

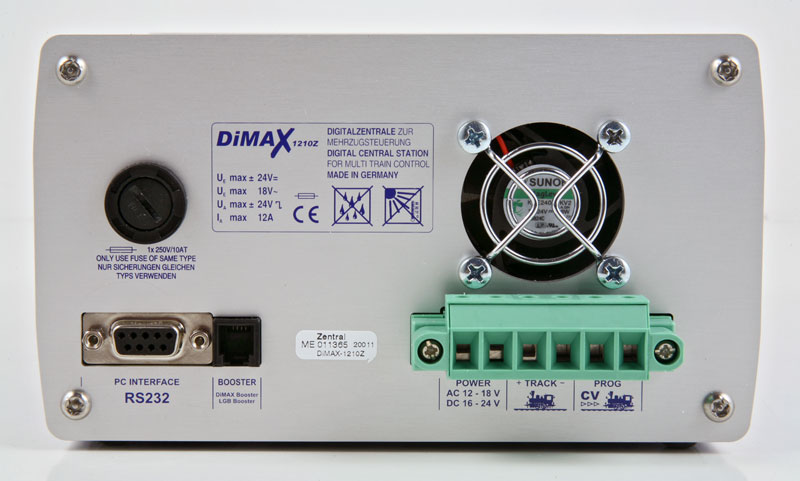

1210Z rear panel view showing power plug installed - note RS232 plug for PC control and PC firmware internet based updates - free at Massoth.com



The DiMAX 1210 Z Central Station includes:

• Central Station 1210Z
• 20' bus cord for connecting to throttles, accessories and/or receivers
• Removable power plug for easy station set up
• Instructions
• Factory Foam insert and box to hold all items (shown below)

Massoth Item No.: 8136501 DiMAX 1210Z Central Station
To view or download manual click here

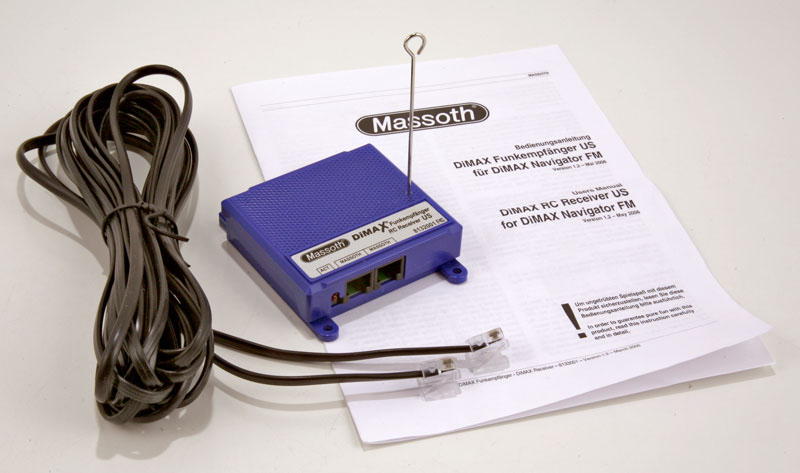

Massoth DiMAX Receiver Details:

DiMAX Receiver for DiMAX and MTS III

The DiMAX Receiver enables you to operate the DiMAX Navigator with a DiMAX central station or a LGB MTS III central station without wires at up to 1000 feet. The DiMAX Multi Receiver facilitates the operation of a maximum of 8 Navigators at the same time. The receiver is connected to the XpressNet and the LocoNet via 2 plugs. The additional Massoth plug may be used for cable operation or for charging the batteries of the Navigator.

Charging power is provided by the digital bus. A range of approximately up to 1000 ft facilitates a safe operation at all times. 4 frequencies are available to ensure an operation without interferences by other devices. An activity LED reports the current operating status of the receiver at all times.

The DiMAX Multi Receiver is equipped with the latest state-of-the-art technology. You may update your receiver to the latest firmware at all times. The data transfer during updating is accomplished between the central station and your PC.

The DiMAX receiver includes:

• DiMAX Wireless Receiver for US
• 20' bus cord for connecting to throttles, accessories and/or receivers
• Instructions
• Factory box to hold all items (shown below)

Massoth Item No.: 8132001 DiMAX RC Receiver US
To view or download manual click here

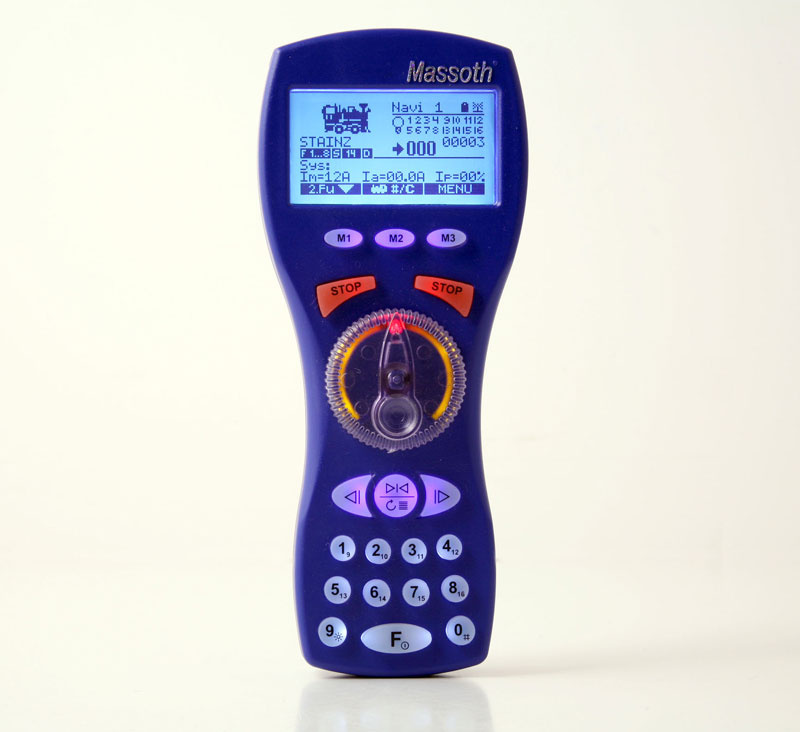

Massoth DiMAX Wireless Navigator Details:

DiMAX Navigator for DiMAX and MTS III Bus Systems

DiMAX Navigator
Now you can enjoy the never ending liberty of controlling your model railroad utilizing the DiMAX Navigator. This wireless hand held control offers a variety of enhanced features no other remote control offers. You control your locomotive and send a switch command at the same time.

No limits
The DiMAX navigator is available with wireless RC. The wireless system is working bidirectional on FM and it is fail-safe. You may roam freely in or around your layout. You may recharge your batteries by using the bus cable. The range is up to 1000 feet outdoors.

Illumination
The DiMAX navigator is one of the few hand held controllers on the market that feature a white background lighting of the display and a blue/white keypad illumination. This ensures a safe operation in all possible lighting conditions. The background light may be switched off or dimmed to safe energy. The dial type throttle is illuminated too in various colors depending on the operation. In addition the stop keys are illuminated if triggered.

Ergonomic design
The housing is ergonomically designed with the weight being perfectly balanced. The symmetric design serves both left and right hand control.

High resolution graphic display
The large crystal display with its white back light shows the exact operating situation of your locomotives as well as your layout. More than 100 locomotive pictures are stored. Every locomotive is displayed with a real picture on the crystal screen and you may name your locomotives individually. This enables you to distinguish between locomotives of the same type. The display also shows the state of the 16 functions of your locomotive, light symbol, the driving direction and the speed as a numeric value and as a progressive bar

List of properties:

• 10239 locomotive addresses
• 14, 28, and 128 speed steps
• Functions F1 to F16 + light function (as key)
• Locomotive pictures of all commonly used models in G-Scale (all LGB models integrated)
• locomotive name (alphanumeric)
• parallel and serial data processing
• two operation modes at the same time: 2x locomotive driving mode or 1x locomotive driving mode + 1x switch control mode or switch routes,...
• easy to use control menu
• programmable STOP keys
• 16 x 4-fold consist operation
• 16 switch routes with 15 switches each
• 2048 switch addresses
• 2048 feedback addresses
• 32 automatic functions for driving and switching
• System display ( e.g. current amperage)
• Blocking function (mode with limited functions, e.g. as a child protection)

Programming
The DiMAX Navigator supports all common programming procedures. The programming procedures depends on the DCC system used.

- CV programming ( direct and indirect ) now with MZS III too
- CV reading
- register programming
- POM Program on Main (program on the main driving track)
- locomotive address programming (direct input of the desired address)

Language selection
The Navigator can programmed with German, English, French und Netherlands at the moment.
Combination of languages are optional. Assemble your language package on your DiMAX Navigator yourself. 2 languages are programmable. This is done simply with a software-update available at Massoth.com for free.

DiMAX and MZS III
The DiMAX Navigator is designed to be used with a cable connection or wireless and it is compatible to the LGB© MTS III system. If you use the DiMAX Navigator with the LGB© MTS III system the DiMAX Navigator can only perform within the limited capabilities of the LGB© MTS III system.

XpressNet and LocoNet©
The DiMAX Navigator may be used with digital central stations working with the protocol of XpressNet or LocoNet©. The for this purpose required wireless DiMAX Multi Receiver will be available shortly.

Current Firmware
The current firmware version supports the operation of the DiMAX Navigator with DiMAX central stations and the LGB MTS III system. The firmware is available for download in the download section at www.Massoth.com

The DiMAX Navigator includes:

• DiMAX Wireless Navigator for US
• 20' bus cord for connecting to throttles, accessories and/or receivers
• Instructions
• Factory box to hold all items

Massoth Item No.: 8134701 DiMAX Navigator (wireless US band, cable operation possible)
To view or download manual click here

For maximum performance and safety of your Massoth system and trains use only a regulated and fully protected DC power supply like those on our product page. We offer discounts on all our power supplies when ordered with a Massoth Starter Set. Click here for our power supplies
