Massoth Pulsed Smoke Generators

8412401 Pulse Smoke Generator (High Output) 19Volt
Shourt Line Discount Direct Price: $149.07 Summer Sale Price $99.00

8412201 Pulse Smoke Generator (Standard Output) 19Volt
Shourt Line Discount Direct Price: $120.60 New

8412201 Pulse Smoke Generator (Standard Output) 5Volt
Shourt Line Discount Direct Price: $120.60 New

Massoth Pulsed Smoke Generators Replacement Heating Elements

8412208 High performance heating element 19V (High Output)
Shourt Line Discount Direct Price: $30.14 New

8412209 Heating element 19V, for pulsed smoke generator
Shourt Line Discount Direct Price: $26.12 New

8412109 Heating element 5V, for pulsed smoke generator (High Output)
Shourt Line Discount Direct Price: $26.12 New

New In original package from the #1 Massoth Dealer in the USA

Made in Germany by Massoth Elektronik GMBH


Massoth Pulse Smoke Generators include a smoke generator, heating element, all cables and instructions.

Description:

The Pulse Smoke Generator for retrofitting your Steam and Diesel Locomotives, cabooses or buildings. This smoke generator may be retrofitted in most of the steam locomotives on the market.

For steam locomotives the smoke is synchronized by loco axle rotation via a Massoth 8242030 eMOTION Pulse Generator Set pulse generator or by a Massoth eMOTION Sound Decoders synch output. When used with a Massoth Sound Decoder the sound and steam chuffs are perfectly synchronized. Massoth sound decoders provide synch outputs when axle synch generators are not available.

The 19 unit barely consumes 0.2 (0.5 with 5V) Amps and produces a remarkable amount of smoke.

Diesel operation:

The smoke unit may be set to Diesel operation by a DIP switch setting.

Two versions of smoke generator are available:
5Volts and 19Volts.

The standard version (19Volts) suites the Massoth eMOTION decoders (including LGB®). The current draw is only 0.2 Amps.

In case your decoder does not provide a suitable powerful output, the 19Volt version is recommended.

High performance pulsed smoke generator 19V

The high performance pulsed smoke generator (19V) provides the programmable SUSI-Interface. The high performance heating element is already built-in.
3



Dimensions: appr.: 50x28x30mm

Scope of delivery: 1 Pulsed smoke generator, 1 Lead for the Pulse Generator


Massoth Product Numbers:

Item-Nr.: 8412101 Pulsed smoke generator 5V
Item-Nr.: 8412201 Pulsed smoke generator 19V
Item-Nr.: 8412401 High performance pulsed smoke generator 19V 2
Item-Nr.: 8412109 Alternate heating elements 5V 2pcs.
Item-Nr.: 8412209 Alternate heating elements 19V 2pcs.
Item-Nr.: 8412208 Alternate heating element high vertile 19V 1 pcs.

Manual:

Massoth Pulsed Smoke Generator User Manual Click Here to view or download

Features:

  • The synchronization pulse may be produced by a wheel pulse generator or by a eMOTION decoder (XL Motor Decoder or XLS Sound Decoder).
  • Large smoke fluid reservoir for extended run time
  • Guaranteed satisfaction

Compatibility:

  • Power supply for digital or analog: 19 volts DC
  • Outdoor use recommended due to amount of smoke production
  • Replacement for standard LGB smoke generators where space permits
  • LGB Heidi and 2-10-2 Rhb Steam Locos are designed to easily mount the Pulse Smoke Generator
  • LGB 2085 Mallet, LGB 2076 Tank Steam Loco, LGB Alco Diesel, LGB FA and FB Mounting Kits available from the Shourt Line.
  • Isolated two channel pulse buffer available from the Shourt LIne for use with Phoenix Sound Boards so both can share the same Axle Mounted Pulse Generator (debounce circuitry also provided on the buffer board)

Photos: (High Performance Smoke Generators shown in photos below)

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance
The top of the smoke generator is easily removed with 4 screws for replacement of the heating element

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance
The PC board can be lifted off the base - note the large 10 cc smoke fluid reservoir for long run times.

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance
This view shows the bottom of the housing and pc board - note the socket mounted heating element with super size wick. Replacing the heating element is fast and easy - no soldering is required and replacements are available from our store.

The Massoth Pulse Smoke Generator if for both Steam and Diesel Locomotives:

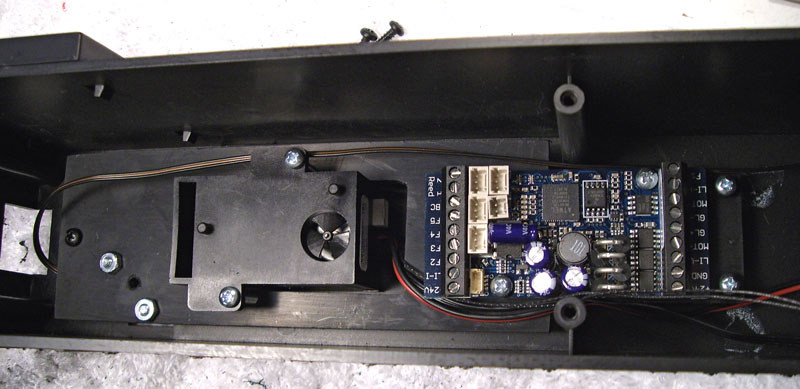

An example of a Smoke Generator, XLS sound decoder and PC volume control being installed in an LGB ALCO Diesel using a Shourt Line SL-LGB-ALCO-kit.


Pulse Smoke Generator on Shourt Line steam loco mounting board ready for installing into boiler.


This view shows the smoke generator being installed into an LGB 2085 using a the mounting board from a SL-2085-Kit XLS/Pulse Smoke Generator Kit from the Shourt Line .

Massoth 8412301 Pulsed Smoke Generator 19 Volt High Performance
Made in Germany by Massoth - 100% satisfaction guaranteed.
