LGB 23872 UP Mikado Steam Loco Digital Sound, Smoke, Lights, Direct Decoder Interface
Very Rare - Never to be made in Germany again
Includes 6 FREE SL Track Sound Magnets for whistle or bell activation for both analog and DCC track power.
Direct Decoder Interface for easy DCC decoder install and remote sound and motor control, install the optional decoder yourself or we can do it for you in our model shop.
Lightly used, tested on test track, see video in link below.
Complete with LGB Box, Foam Inserts and original parts bag
LGB Direct Decoder Interface, Head, Interior, Fire Box, and Tender Lights with smoker and Digital Sound (Track not included in this item) Loco tested on our test track and is in perfect working order.
Click here for more product details and larger photos and video
Pre-owned gently operated with only <1 hour of run time
Features:
Made in Germany by LGB, now out of business. Highly collectable. This model will never be made in Germany again. Operates on any LGB track, even R1 curves as in a starter set.
LGB recommends at a 24Volt DC (2 Amp minimum) power supply and 5 amp throttle such as our full color digital 24V 5 amp SL 5502405 5A Amp High Efficiency Precision Voltage/Amperage Throttle & 24V5A Power Supply.
The Prototype:
The 2-8-2 “Mikados” were among the most successful steam locomotives of all time. The first Mikados were built in 1897 at the Baldwin Locomotive Works for the narrow gauge railways of Japan. During World War I, the United States Railroad Administration adopted the Mikado as its standard freight locomotive, and more than a thousand “Mikes” were made for American railways. Later, thousands more were supplied to railways around the world. Many Mikados survived until the end of the steam era in the 1950s, a clear indication for a successful design.
The Model:

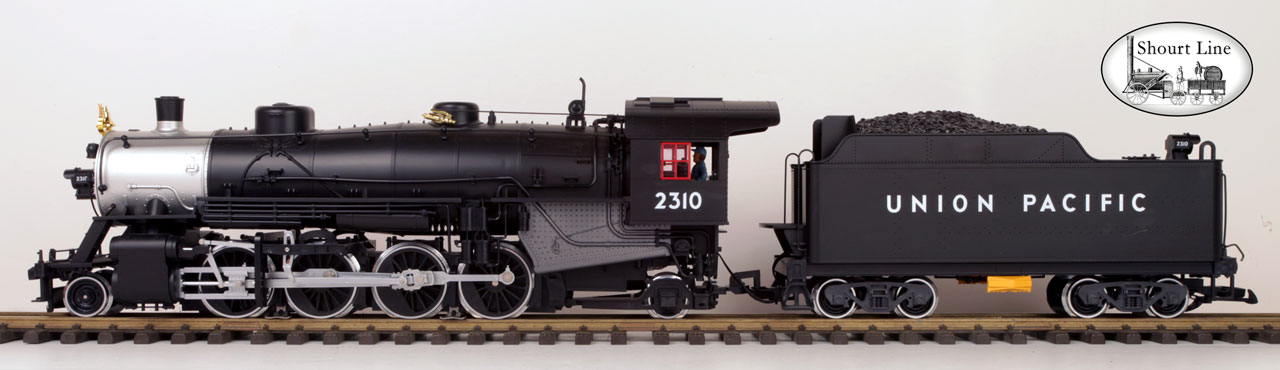

This detailed LGB replica features:
- Weather-resistant construction
- Opening cab roof vents
- Opening firebox door
- Four-way power control switch
- protected gearbox with seven-pole Bühler motor
- Articulated drive for short-radius “R1” curve compatibility
- Eight powered wheels
- two traction tires
- Twelve power pickups
- Digital electronic sound
- Synchronized steam chuffs
- Bell and whistle sounds
- Brake sounds
- Air pump and feed water pump sounds
- Remote control of sound features (with Multi-Train System OR DCC control when plug in decoder is installed)
- Manual Volume Control located behind Boiler Door
- Voltage stabilization circuit
- Smoke generator
- Simulated fire box fire
- Automatic directional lanterns
- One multi-purpose socket with circuit breaker
- Length: 930 mm (36.6 in)
- Weight: 7400 g (16.3 lb)
Specifications:
Mfg: LGB Germany (Pre-Marklin)
Photos:
Comes with original box and two foam cases, one for loco and one for tender.
Engineer included to drive this 3 foot long locomotive (note track not included).
Fire box and interior, front and rear lights are low voltage for bright operation on analog power and remote controlled with optional DCC Decoder..
Note: We are LGB dealers and have noted that the currently manufactured LGB Mikados are made in Hungary and only have one paint scheme and use stickers for different road names. This loco is made in Germany and has a power jack at the rear of the tender for powering lights on following cars or holiday lighting such as our holiday 12 LED blinking wreath.
The Volume control is mounted behind the front boiler plate. Screws can be removed to expose the sound board and mounting pins for an LGB plug in decoder or better yet use an ESU LokPilot XL 4 amp decoder, we can do the install if you want DCC just let us know. Be sure to watch the video at the link below to see the synchronized chuff and aux. sounds as the loco is driven. Whistle sounds are automatic for forward and reverse as well as breaking sounds when slowing fast. These work on analog as well as DCC track power when the decoder is installed.
The engineer in the cab is blowing three times, this loco and backing up to pickup its load and will leave the station soon, don't miss it!
For indoor or outdoor use.
