LGB 1236 (12360) Electromagnetic Three Way Points, 2 EPL motors, 3 way switch track

Rare - Hard to find - Gently used indoors

Ideal for making a switch yard or two sidings with minimal track space. Operates manually or via AC or DC electrical current.

Photos:

LGB 1236 3 way points, 2 EPL motors, 3 way switch track

LGB 1236 3 way points, 2 EPL motors, 3 way switch track top view

Features:

This LGB 1236 Electromagnetic Three Way Points is identical to the LGB (same as LGB 12360) and can be activated by hand or electrically. The three way point includes a diode for use with the LGB momentary switch boxes (or similar switches) and for automatic operation via an LGB or Massoth Switch Decoder or Track contacts SL-TC-17100 Track Contact (replaces LGB 1700 and 17100). Connect the diode between the two orange EPL motor terminals per the LGB instructions included..

  • LGB 1236 3 way points
  • 2 EPL motors
  • Original Manual
  • Original diode in factory sealed bag
  • Original box
  • Operate via manual levers or electrically
  • Operates on AC or DC voltage 16 to 24 volts DC or AC
  • Use the 2 of 4 Massoth 81566001 motor switch decoder for MTS or DCC remote control
  • Precision made

Specifications:

Mfg: LGB - Made in Germany

Operate manually or via supplied EPL motors on AC or DC current

Optional equipment: (Items listed below do NOT come with this item)

SL-TC-17100 Track Contact (replaces LGB 1700 and 17100)

Automate your railroad with these track contacts that activate by loco magnets and control your switches and signals.

Replacement for and functionally identical to LGB 1700 & LGB 17100 Track Contacts (no longer available)

SL TC 17100 Track Contact CU

Features:

  • Input voltage 12 to 18 Volts AC, 24 Volts DCC or MTS
  • 1.5 amp output for controlling LGB switch or signals motors EPL or old 3 terminal style motors
  • Waterproof sensor - Triple sealed glass, 600 deg. high temp Silicone and Brass
  • 18" stress relieved cable between the quick connect terminal block and sensor - allows out of sight installation
  • High sensitivity - operates up to 1 inch from loco magnets - place inside your railroad tie
  • 400 volt components for long life
  • 600 degree high temperature silicon used for safe high temperature outdoor installations
  • Invisible sensor - fits under your railroad tie or on the side of a tie
  • Easy install - no soldering required
  • Includes three connector terminal strip for easy hook up using a screw driver
  • Safe for continuous use (loco parked over track contact switch)

Specifications:

Mfg: Made in the USA by the Shourt Line - Soft Works Ltd.

Input Voltage: 24V Max AC, DC, DCC or MTS (Shourt Line SL-PS-16AC40 16 VAC 40 Watt Transformer recommended)

Output Current: 1.5 amps maximum

Maximum Ambient Operating Temperature: 200 degrees Fahrenheit ( 93 Celsius)

Weight: 2 Oz.

Dimensions: 1.2" X .18" diameter sensor connected to 18" cable and .6" W X.6" L X .5" H terminal block

How to use:

The SL-TC-17100 Track Contact is easy to use.

  1. Place sensor inside or on the side of a track tie on a straight or curved section of track using the supplied double stick outdoor adhesive and/or silicon in place.

    SL TC 17100 placed mounted inside a railroad tie

  2. Turn the track over and connect to your layout.
    SL TC 17100 track top view

  3. Notice the terminals are identical to the LGB track contacts where AC power is applied to the center contact and the left contact outputs + and the left outputs - voltage as desired to open or close a track or signal motor.
    SL TC 17100 close up with 18 inch cable

  4. Connect two track contacts to open and close a switch motor as the train passes each contact. Power is provides by a Shourt Line SL-PS-16AC40 16 VAC 40 Watt Transformer and connected to one pole of the motor and both center connector of the track connector (shown in blue below)
    2 SL TC 17100 wired to transformer and track motor

  5. The right contact of one track contact (the negative output - black wire) and the left contact of the other switch contact (the positive output - red wire) are both connected to the unused pole of the switch motor (shown below). Indoor or outdoor use - water proof sensor..
    SL TC 17100 wiring diagram close up picture

  6. Run your trains! As a loco magnet passes each contact, the switch motor opens and closes to provide automation for your layout.
    Train Automation with track contacts and loco magnets
    Track, transformer and train not included in this auction.


    Connection Schematic:

    Make sure to use a 16 Volt AC power source for powering your track and signal motors from track contacts.


    SL-TC-17100 Track Contact wiring diagram



Massoth DiMAX Motor/Switch Decoder ME 8156001
LGB MTS type I, II and III and NMRA DCC ready

Use with our LGB 1236 3 way points, 2 EPL motors, 3 way switch track for DCC or MTS control of the points

NEW! Now with 4 switch motor outputs (version 1.6 or above)

Has LGB 55025 switch decoder functions PLUS 6 switch inputs AND a loco mode for running 1 motor or switch & 6 other devices at 1.5 amps max. each

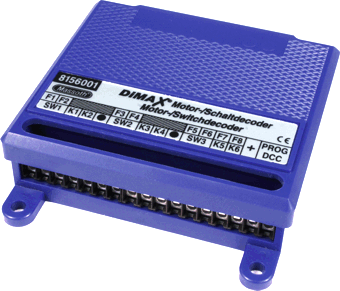

Massoth Switch Decoder ME 8156001

Description:

The new MASSOTH Motor-/Switch decoder gives you the ability to have total control and endless possibilities. The DiMAX Motor-/Switch decoder is an all purpose special function decoder.

Up to 6 additional function outputs either by digital signal or by triggered switch, allowing individual positioning. E.g. You may digitalize your crane car with the DiMAX Operator Decoder and operate the boom horizontally or vertically and control the bucket or the hoisting winch.. the possibilities are endless.

Operate up to 8 outputs or 3 motors or switch actuators of any type digital signal or by triggered switch, allowing layout automation with or without DCC equipment. You can operate the three motor axis of your crane car with the DiMAX Operator Decoder to operate the boom horizontally or vertically and control the bucket or the hoisting winch.. the possibilities are endless.

Simple programming via CV programming features, as well as POM (programming on main track)

The DiMAX Motor-/Switch decoder is able to operate any kind of solenoid driven switch (2 and 3 wire) as well as switches that are driven by an electric motor. The DiMAX Operator Decoder features 6 programmable function inputs which are able to operate function outputs by a triggered switch. This allows you to operate a switch or any other component by a push button in the interlocking machine or by a track contact, triggered by loco magnet.

Massoth Item No.: 8156001

Manual:

Features:

  • New Factory Sealed
  • Digital Motor/Switch Decoder for LGB MTS & NMRA-DCC compatible operation
  • 8 function outputs (inc. 4X2 for motor or EPL drive)
  • 6 inputs for manual control
  • Overload protection for all functions
  • Hook up via a 17 position mini terminal strip - no soldering required
  • Controllable by either loco addresses (1..10239) or switch
    addresses (1..2048)
  • Convenient function mapping when using loco addresses including
    direction assignment.
  • Programmable flashing light function and short term function
  • Multiple programming options (Register, CV, PoM)
  • Reset function for all CV values

Specifications:

Click here for user manual on the DiMAX Motor-/Switchdecoder

Applications:

Operate four (4) switch motors of any type:
Massoth 8156001 Switch Decoder contrlls 4 switch tracks

Control up to 3 switch motors from the 6 switch inputs by use of reed switches or track contacts activated by magnets on your loco:
ME_8156001_DiMAX_530S_540S 4 ch Motor Switch Decoder Contact controlled switches

Operate one motor and up to 6 other devices (lights, relays, sound efx, etc.:
Massoth 8156001 also controls 1 motor and 6 other devices

The decoder comes from the factory ready to run there switch motors and changing one CV value changes it to a loco decoder for running any type of motor with variable speed control plus 6 other devices.

ME_8156001

The Motor/Switch Decoder is the perfect addition to any G Scale railway for remote control or simple automation using simple switches.
