G Scale LGB 52120 Electronic Speed Controller with AC 5A 24VDC supply & cable adapter NEW
Input power 110-230 VAC using supplied power supply
Weatherproof for indoor or outdoor garden railroading
For questions on this item or details on our professional repair and conversion services
Call 310-622-4431
Shourt Line Direct Discount Price: $169.95
The Item Includes:
- LGB 52120 5 amp Electronic Speed Controller
- LGB power cable
- LGB track power quick connect clips with cable
- LGB Instructions (Click here to view)
- Original box
- SL-PS120 AC adapter with screw terminal wire connector for easy install in minutes
Features:
The powerful LGB throttles incorporate state-of-the-art technology:
- 5 amp capacity with built-in AC/DC
conversion - SIC (Special Integrated Circuit)
technology for electronic throttle control and a smooth voltage
waveform - For use indoors and outdoors (52120 only)
- Safety connectors for wires up to 0.5 mm2
- Low heat generation
- Short circuit sensor
- Easy track powering with included LGB track clamps and wires
- Easy install in minutes with supplied SL-PS-120-5A-24VDC AC adapter and screw terminal adapter for DC input wires included with the set
Specifications:
- Base dimensions: 175 x 115 mm
- Input voltage: 15-18V AC. or 24V DC max.
- Output voltage: 24V DC max.
- Output current: 5A DC max.
- UPC/EAN: 4011525521204
- Made in Germany
Features:
- Easy to use train speed and direction control
- Output Power is 0-24 volts DC + or - at 0-5 amps max.
- Input Power from 16 - 22 volts AC or 24VDC input voltage
- Pre-wired with input and output wires for easy installation
- Forward/Reverse speed dial
- LGB Instructions
Notes:
When connecting to a 12-24 volt car battery, the circuit must be
protected via a 4 A fuse, (e.g. car inlead fuse holder as used for car radios).If a fuse is not fitted, the electronic controller will be damaged.Attention! Connect the throttle using wires with a cross-section of at least 0.5 mm2 (20 AWG) (e. g., LGB 50160) or use our 18AWG red and black SL-18-RB-cable available at our store.
When the throttle knob is in the center„0“ position, the throttle is off.
Turn the throttle left or right to change the speed and direction of the train.Overload Protection
The throttle is protected against short circuits. If a short circuit occurs, the throttle will switch off. However, this overload protection functions only when using a power supply with an output of 5 amps or more.
When using an LGB power supply with an output of less than 5 amps, a short circuit will trigger the overload protection of your power pack (see Power Supply).Attention! If there is a short circuit or overload, unplug the power supply from the house current outlet immediately:
1. Short circuit: Find and remove the short circuit. Reconnect the power supply cord. Reset the throttle by
turning the throttle knob to the center„0“ position for at least 2 seconds.
2. Overload: Remove one or more locos from the track. Reconnect the power supply cord. Reset the throttle by turning the throttle knob to the center „0“ position for at least 2 seconds.
Mfg: Made in W. Germany by LGB
Included AC to DC high efficiency power supply:
- Shourt Line SL-PS120-5-24 5 amp 24 volt DC high efficiency short circuit protected power supply with 110VAC power cord.
- Shourt Line 2.1mm female to wire adapter for connecting LGB power cable included with the set of up to 100 feet of Shourt Line 18 AWG power cable available at our store.
Just insert the power cable that comes with the set into the + and - terminals and tighten with screw driver, then plug into power jack of the SL-PS120-5-24 power supply and run trains!
Instructions and service manual:
Photos:
New in the box with instructions outdoor weatherproof 5 amp throttle, both track power connectors and power cable ready to hook up to any LGB power source or the SL-PS120-5-24 high efficiency power supply for 5 amps and 24 volts of clean power (Optional item at our store)

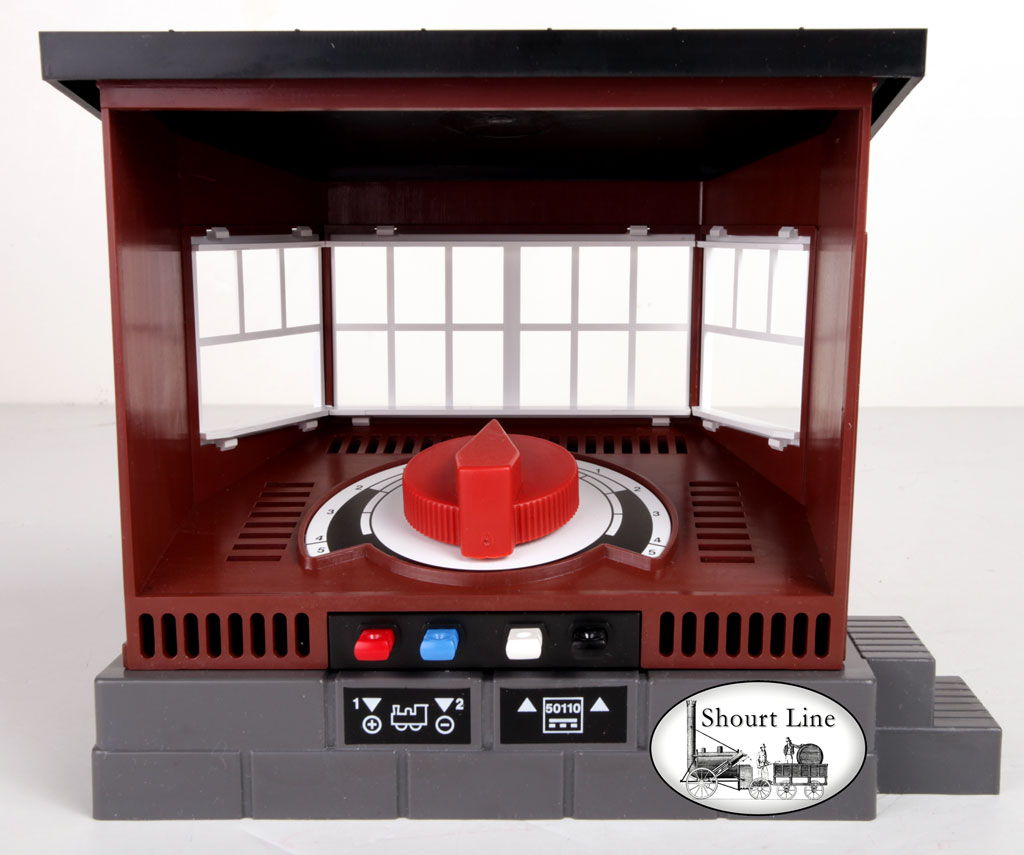

Rear View showing track output terminals (red and blue) on the left and the power input terminals (black and white) on the right. The terminals are spring loaded for connecting wires without any tools.

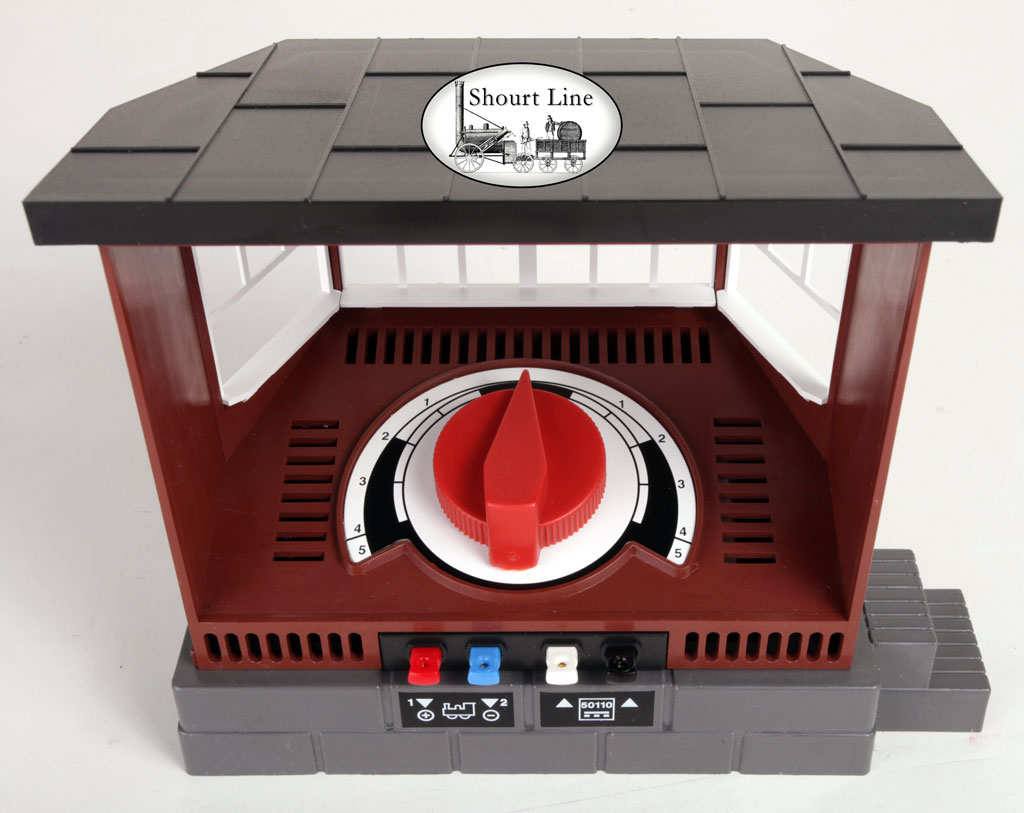

The speed dial controls both speed and direction of your locos.

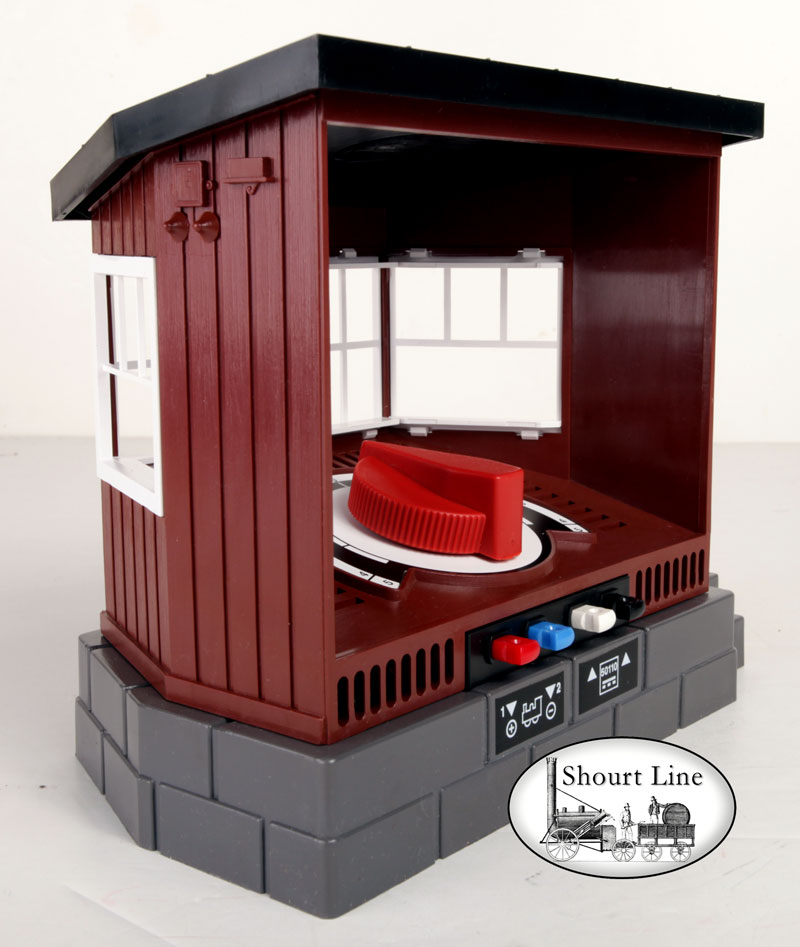

The speed control hut is weather proof, I have had mine outdoors for over 10 years and it is still going strong!

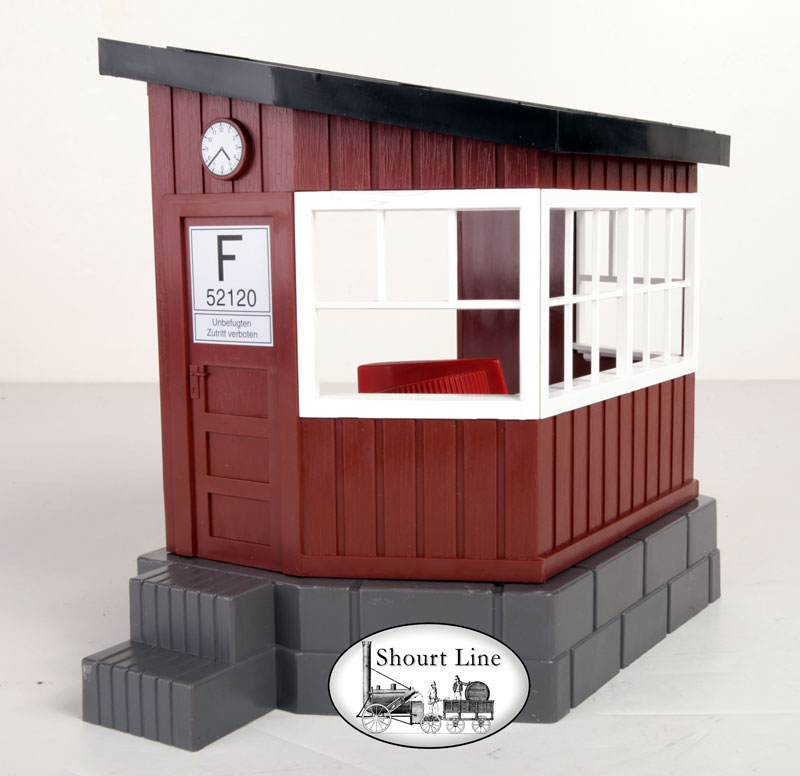

This German made electronic train throttle and speed controller is perfect or indoor or outdoor garden railroading.

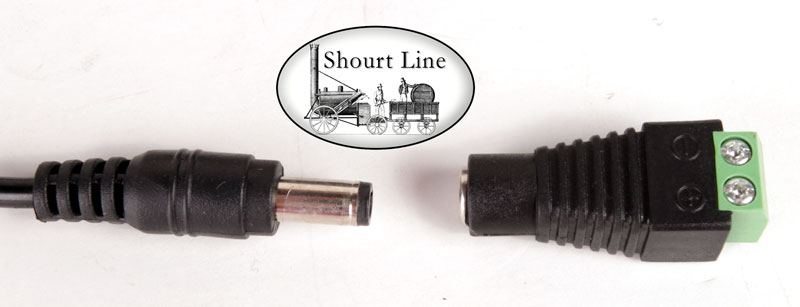

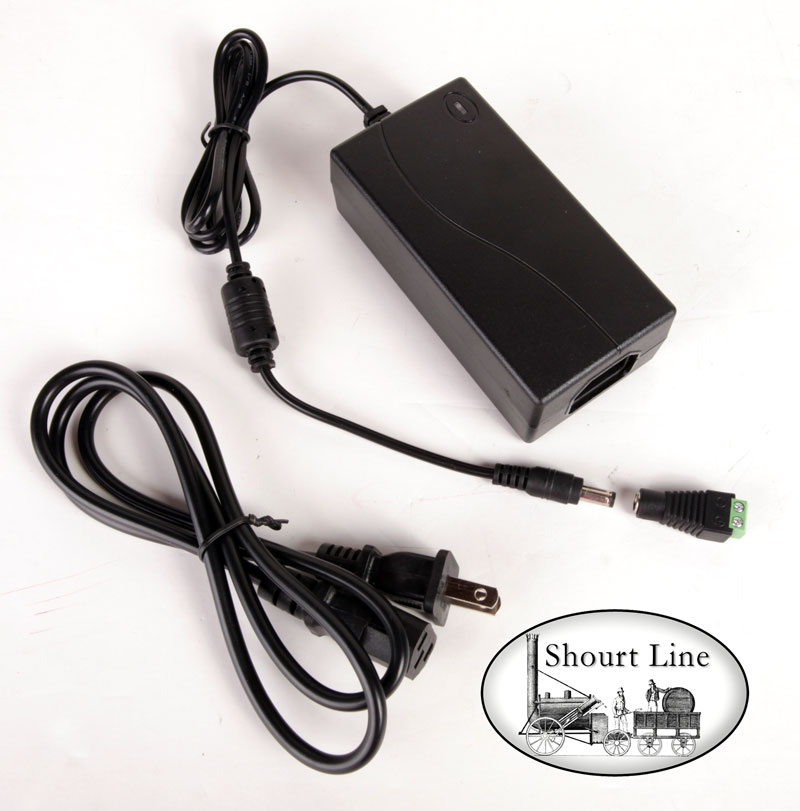

The photo above shows the included Shourt Line 2.1mm female screw terminal to wire adapter plugged into the included Shourt Line SL-PS120-5-24 5 amp 24 volt DC high efficiency short circuit protected power supply with AC 2 wire US power plug.
