LGB 21900 DUO-System Red Diesel Locomotive RC Automatic Uncouplers Brand New

Very Hard to find - NEW never run

Made in Germany - Pre-Marklin

For questions on this item or details on our professional repair and conversion services

Three directional head lights and cab interior light

Front and rear RC (remote controlled) uncouplers using an analog throttle, no additional equipment needed..

Shourt Line Direct Price: $399.95 NEW

Ship to:

Outside California $399.95 USD Inside California w tax $432.94 USD

• Operates on DC analog track power or on DCC or MTS with optional DCC decoder
• Front and rear RC automatic uncouplers using an analog throttle, no additional equipment needed
• Roof uncoupling Status Lights
• Directional front lighting operates automatically with change in direction
• 3 Way power switch in the cab
  • Switch position 0: All power off
  • Switch position 1: Power to lights

  • Switch position 2: Power to lights and motor
• 6 Point power pickup for reliable operation
• Powerful Bühler 7 pole DC motor - made in Germany for decades of use
• Rear power jack for lighting train cars.
• Rare - Out of production and will never be made in Germany again
• Factory box, foam carrier, and packing material
• Original LGB User Manual
• LGB scale engineer made in Germany

RC Uncouplers:

The Diesel Shunting Locomotive No. 21900 has both front and rear RC uncouplers. The uncouplers are controlled using your analog train controller, no additional equipment is required. Both the front and rear uncouplers work with even with double coupled cars.

The uncoupler has two motions, first the loco's hook is driven downwards and at the same time the coupling ring has be altered so it splits and moves outward causing a cars hook to travel downwards so that that even double coupled vehicles can be easily uncoupled.

Uncouplilng is done by changing the voltage on the track using your speed controller as described below. The yellow and red cab roof lights light when a coupler has been activated (yellow light on) and set to uncouple (red light on).

Uncoupling Operation Steps

1. Stop to uncouple
2. Rotate controller knob slowly from 12 to 13 volts DC
3. The Yellow uncoupling lamp on the roof will be lit to start uncoupling
4. The Red uncoupling lamp on the roof will be lit when the a coupler is uncoupled.

Perform Either step 5. or 6. below to return the couplers to normal
5. Drive the locomotive is driven away, the coupling of the respective coaches will be released and the Red lamp will be extinguished to signal normal mode.
6. Without driving away, the couplers can be set to normal mode by lowering the voltage to 8 volts, then slowly raise the voltage to 12 volts, both couplers return to normal and the RED roof light will go out.
7. After step 5. or 6., the uncoupling operation has been completed. The coupling hook returns to the normal, original position and the RED roof lamp is extinguished

Note that when a DUO Red light is OFF both couplers are the same as any LGB coupler and can be used to couple to cars as usual. Note also that if the track voltage is above 8 volts the Red lamp show the stauts of the uncouplers, Red on = uncoupled, Red off = normal coupler status. To return the couplers to normal follow Step 6 above.

Optional Items: See our store for details

• ESL-DC-5-SPS-Set Analog Pure DC Throttle - consisting of:
  • SL 5502405 5A Amp Digital High Efficiency Precision Voltage/Amperage Throttle w color display
  • SL 5122406 Regulated SW Power Supply 24 VDC at 6 Amp AC power cord
• ESU 5.0 digital sound decoder with Diesel Loco and standing sounds or user recorded sounds
  • ESU DCC Cab Commander WiFi Android Servo Throttle, base station router and power supply.
• Shourt Line Professional Conversion Services for Decoder

Specifications:

• Mfg: Made in Germany 1993 by LGB
• Engine weight: 1460 grams (3.22 lb.)
• Length over buffers: 240mm (9.5 in.)

Components: Designed for indoor or outdoor use

Photos:

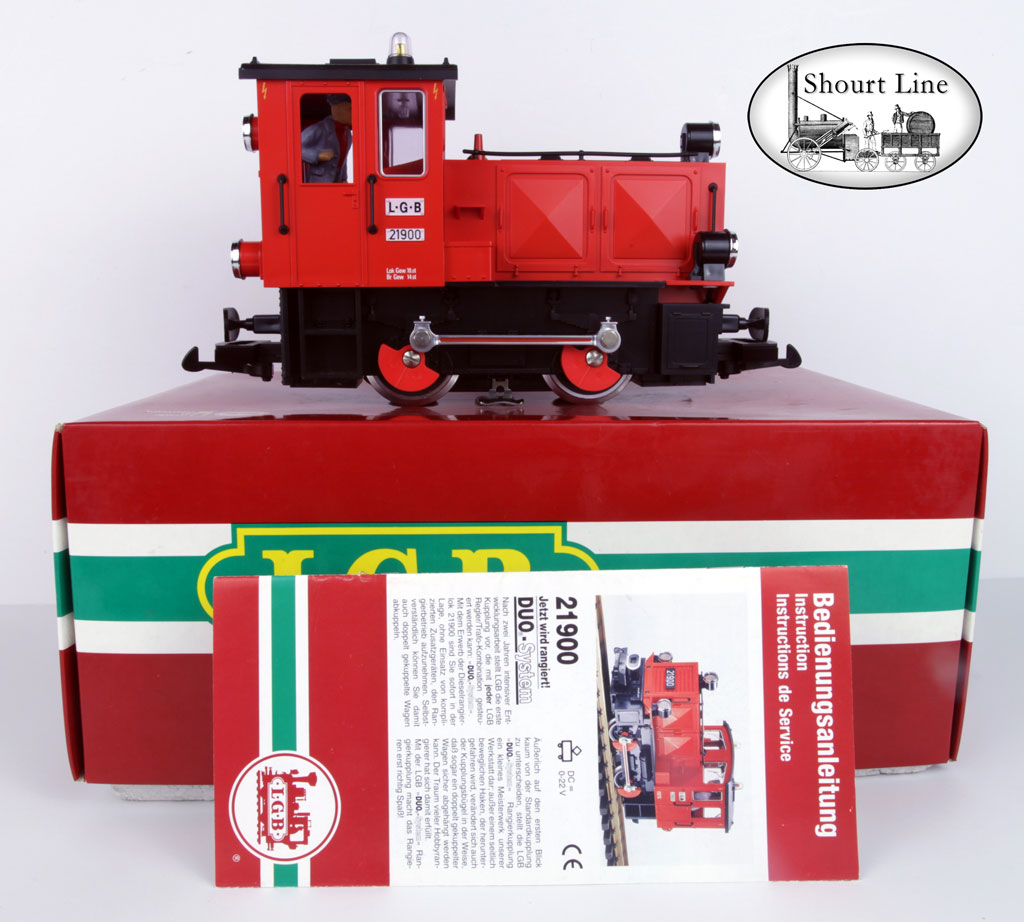

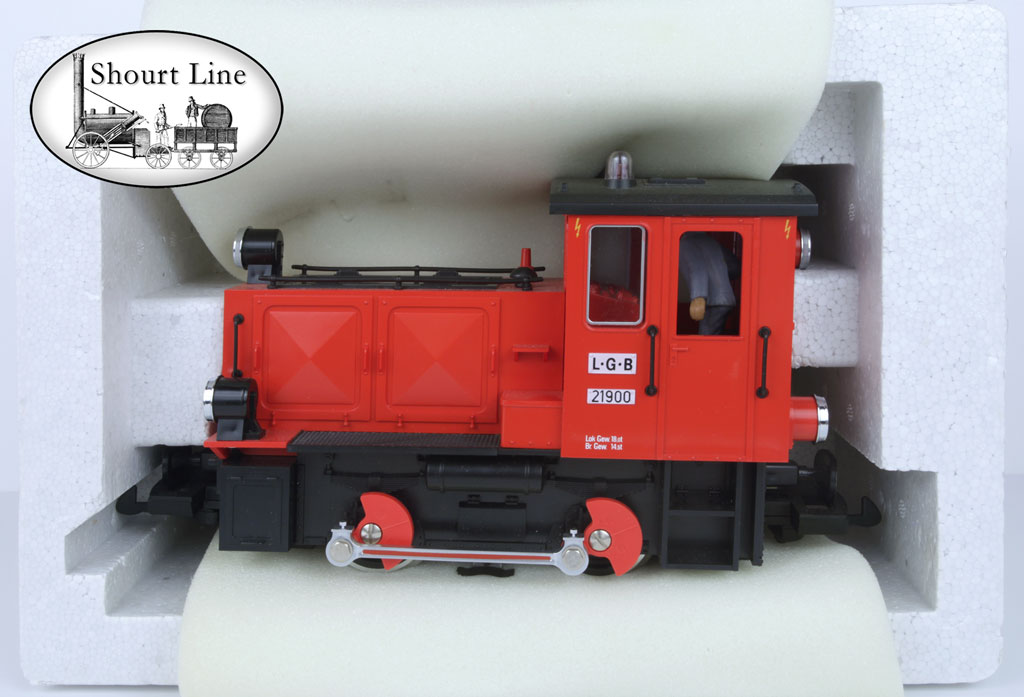

Ordinal LGB box, foam carrier, packing material, and user manual included.

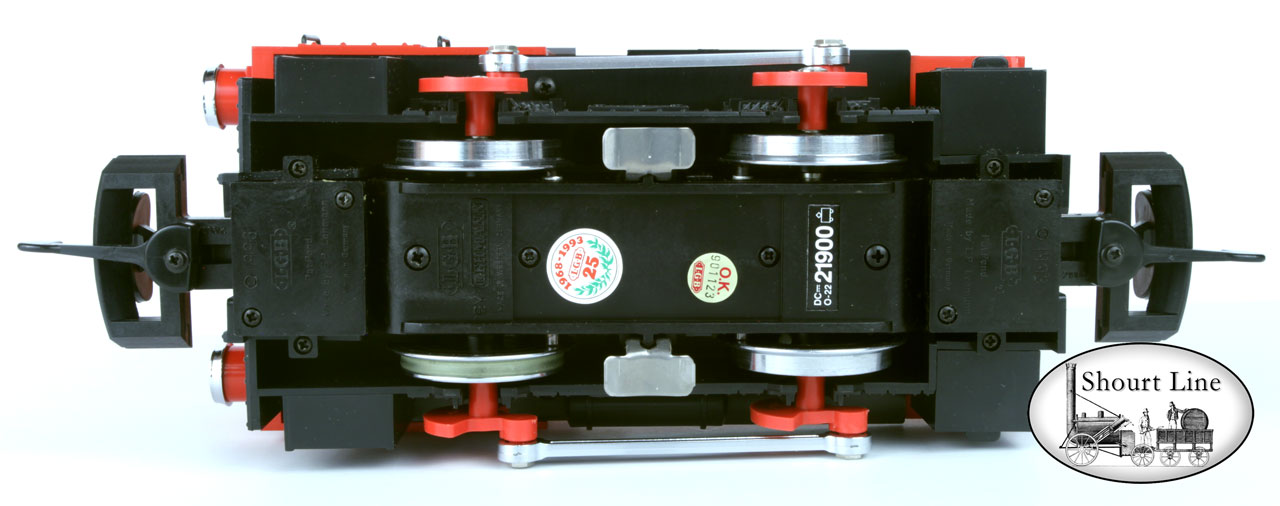

The loco is brand new in the box. Four wheels are driven and one has a traction tire. Six points of power pickup.

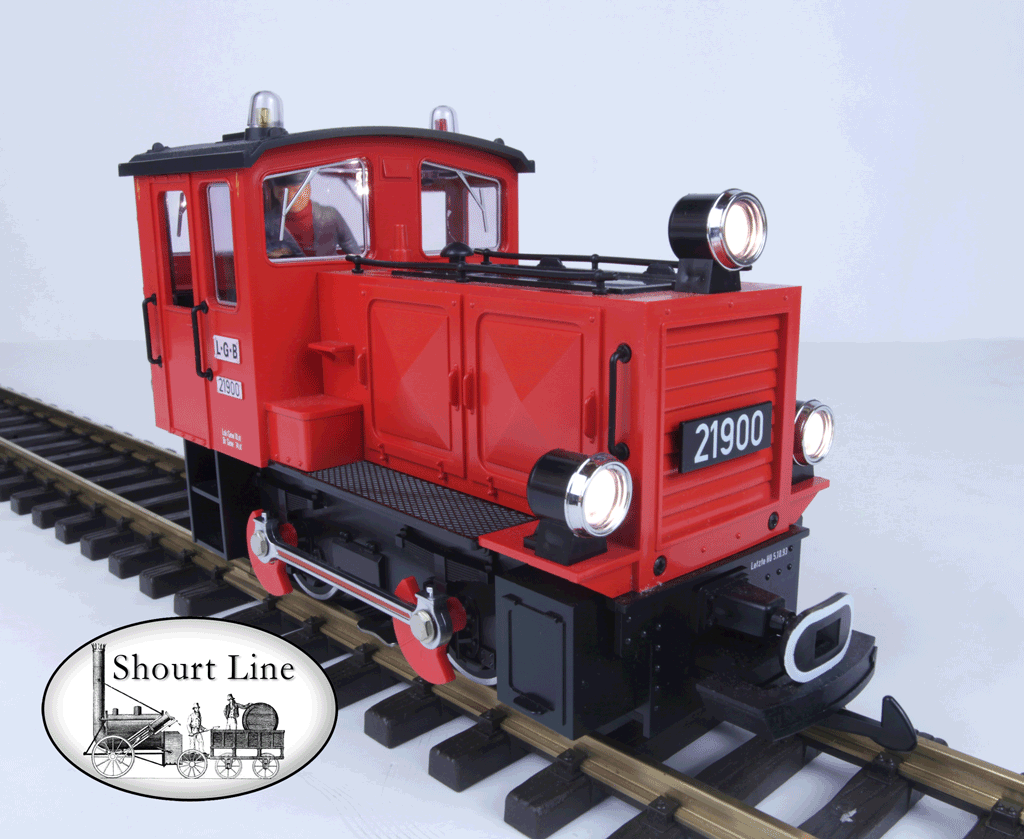

This animated sequence starts with controller set to forward at 12 volts with head lights illuminated, then set to reverse and the voltage is raised to 14 volts to active the front uncoupler, then the voltage is lowered to return the coupler to normal. The action is repeated and then the animation restarts with the head lights on. The the Red roof light is lit when the uncoupler is activated.

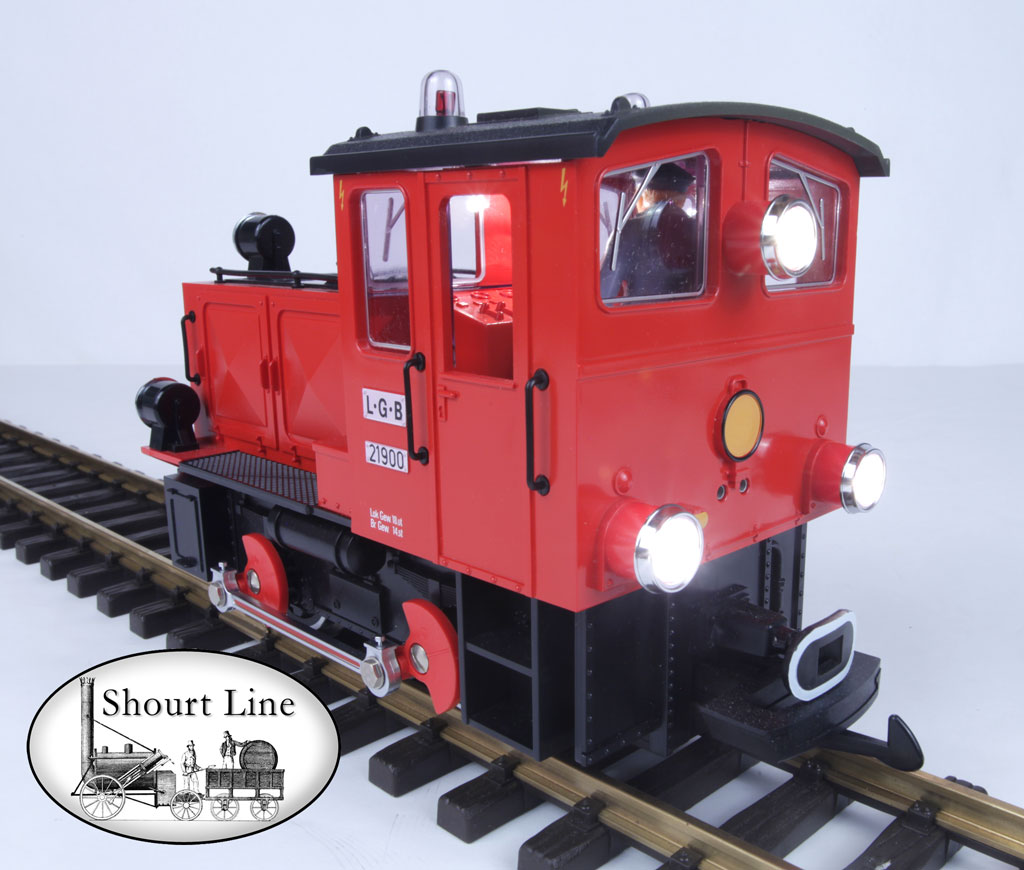

The Locomotive has power jacks on the rear of the cab for powering car lighting or sound systems.

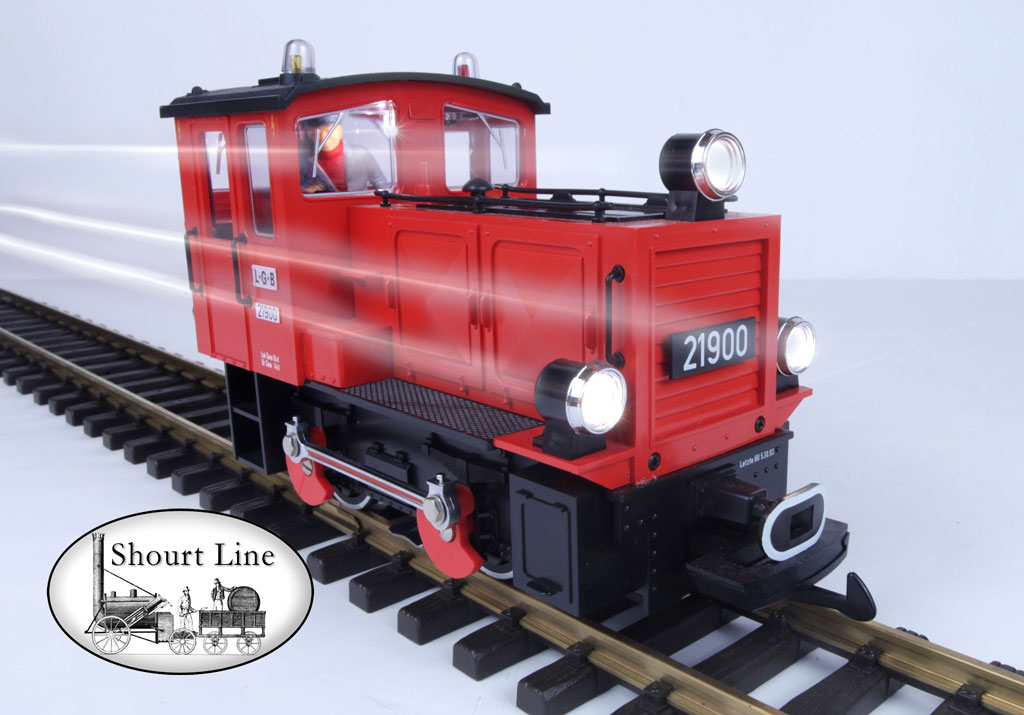

Don't miss loco about to leave the yard!
