G Scale LGB 10345 Automatic Shuttle Train Circuit Set NEW + A Free SL-8452403 3 Amp Precision Throttle and bridge
Adjustable stop duration
Adjustable prototypical smooth start and braking
Adjustable loco speed using the included FREE SL Precision Throttle and bridge (wiring required - see photos below)
Shuttle Power input 10-24 volts DC.
Install the included Shourt Line SL-8452403 Precision Train Throttle and full wave bridge or your own train throttle for speed adjustment. The set includes everything else you need to setup your shuttle.
New in the box.
Shourt Line Direct Discount Price: $159.95 NEW + S&H & CA tax in state
We rate this shuttle set a BEST BUY
To buy by phone call 310-622-4431
Factory sealed from ShourtLine.com, an authorized LGB dealer.
Click here to download the User Manual
For questions Email info@ShourtLine.com
Description:
The shuttle train automatic circuit box allows you have a train shuttle between two stations. An electronic circuit stops the train at the station and reverses the direction to go back. This box set is easy to install and has adjustable stop duration and prototypically smooth start up and braking. It can be connected to 10-24 volts DC.
We recommend this shuttle set above all others due to its low cost, advanced features, included cables & track and the enclosed electronics are hidden and protected inside an LGB end of track bumper that is included. We rate this product a BEST BUY.
Features:
- Made in GERMANY
- LGB Warranty Included
- Weatherproof for Indoor or Outdoor operation
- Prototypically smooth start up and braking
- Adjustable stop duration
- Includes easy to follow instructions
- Includes mounting screws for the electronic circuit board (pre-mounted at factory)
- Includes LGB 51235 1 meter 2 conductor red and blue power cable for input power
- Includes LGB 50160 1.5 meter track power wires for easily connecting power to the shuttle track

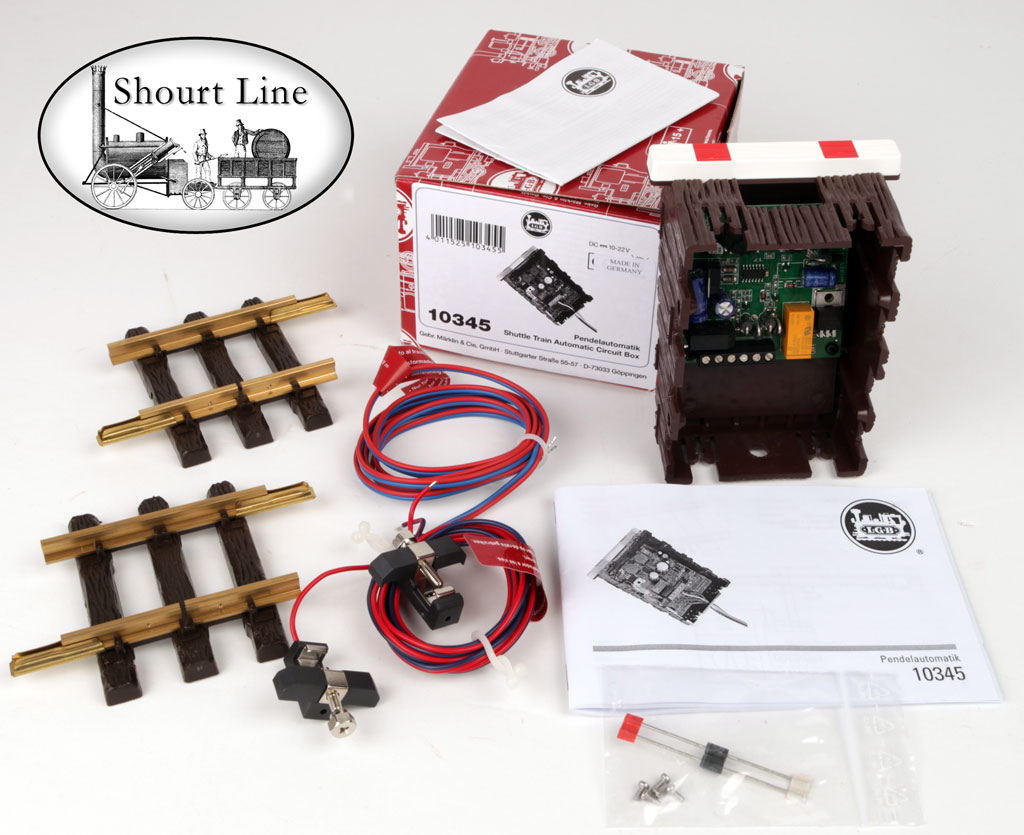

- Includes 2 each LGB 10080 82mm long special isolation straight tracks, with tapped holes for mounting 2 included diodes and mounting bolts for end of track stop control
- Includes an LGB 10310 un-lighted bumper for mounting the shuttle electronics and a FREE SL-8452403 Shourt Line Precision Throttle
- Installs in minutes
- New in a factory sealed package
- Includes a FREE SL-8452403 Shourt Line Precision Throttle and a FREE full wave bridge for speed control
Instructions (click here)
Specifications:
- LGB Shuttle Board Input Voltage Requirement: 10-24 volts DC
- Input Voltage Requirement when using the included SL-8452403 Throttle: 12 - 35 volts AC, DC or DCC
- Maximum output current: 3 Amps.

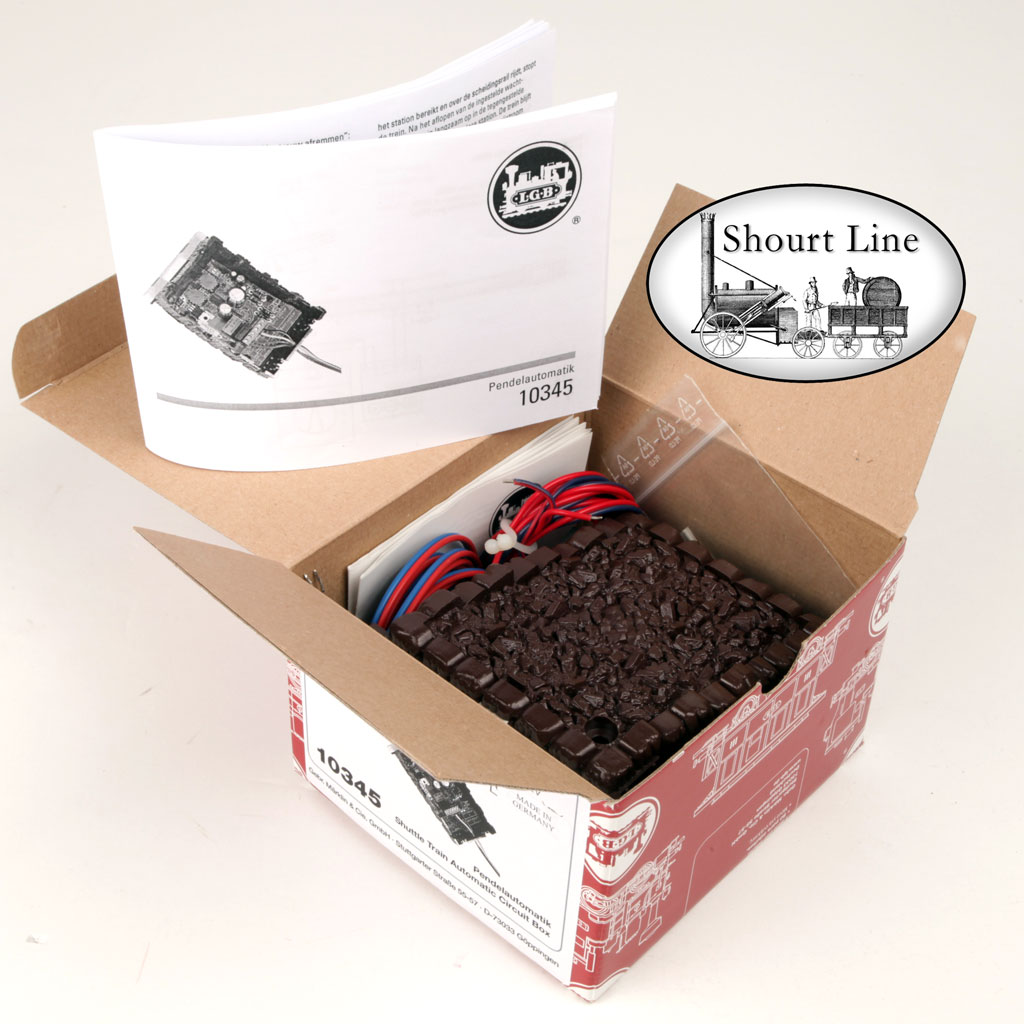

- LGB Shuttle Electronics come mounted in an LGB end of track bumper as shown
Optional Equipment : (not included with set)
- for setting the speed of your loco
- SL8453303 Precision Train Throttle & LED Controller AC,DC or DCC input 10' input, 3" output cables +3M pad (recommended, see photos below)

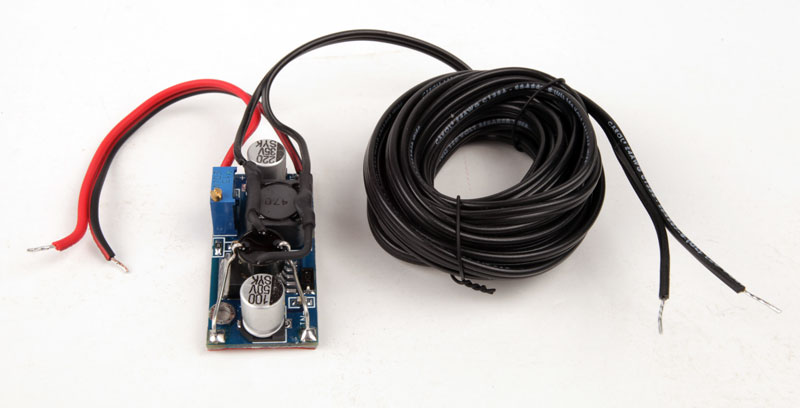

SL8453303 Precision Train Throttle & LED Controller AC,DC or DCC 10 foot black micro input power cable and 3 inch red and black output power cables (optional but recommended as the throttle is hidden inside the included LGB bumper with the LGB shuttle electronics) (Click here for details)The SL8453303 Precision Train Throttle has adjustable regulated output of 1.2 to 24 volts at 3 amps maximum. It matches the input power and voltage requirements of the LGB 10345 Automatic Shuttle Train Circuit Set and can be powered from any AC, DC or DCC voltage up to 30 volts.
Instructions for mounting and wiring the included a FREE SL-8452403 Precision Train Throttle and a full wave bridge or the optional prewired SL8453303 Precision Train Throttle for easy no solder installation, just peel and stick and connect to shuttle terminals using a screw driver:

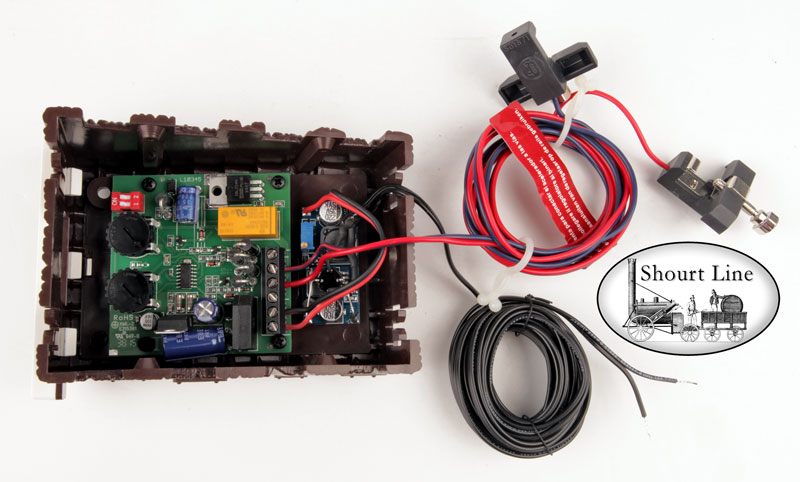

Step 1: Remove the LGB Bumper from the LGB 10345 box and turn it upside down on your work space to show the circuit board inside (see photo below).

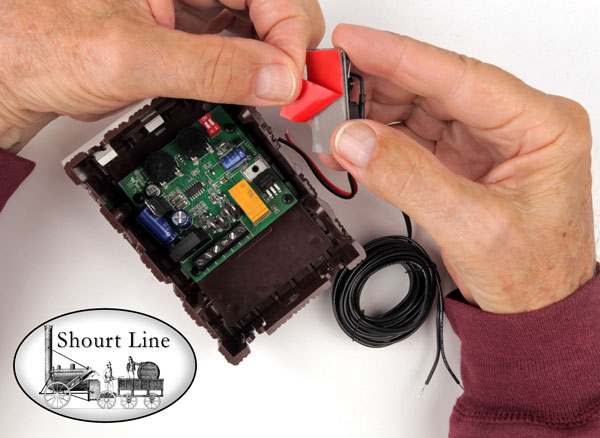

Step 2: Peel off the red backing on the SL8453303 Precision Train Throttle

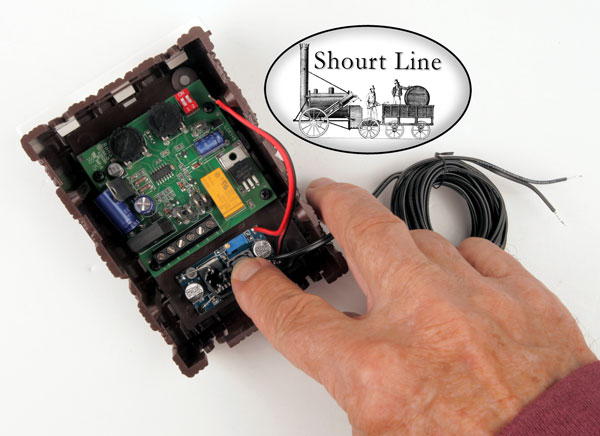

Step 3: mount the SL8453303 as shown above being sure to place in the center of the case so the brass rails will not contact the device when the bumper's mounting slots are snapped onto your track.

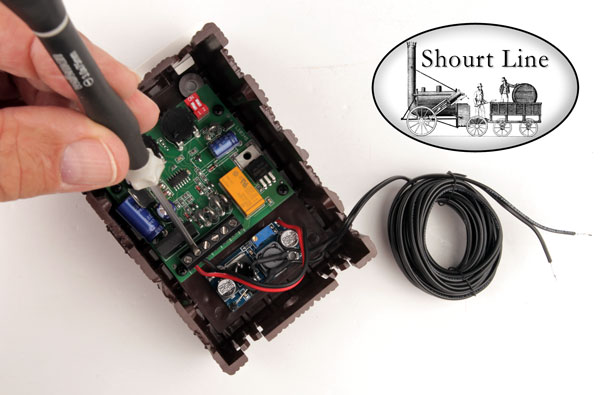

Step 4: use a flat screw driver to secure the red and black 3 inch output power leads as shown above (see the instruction manual if you are not sure of which terminals to use)

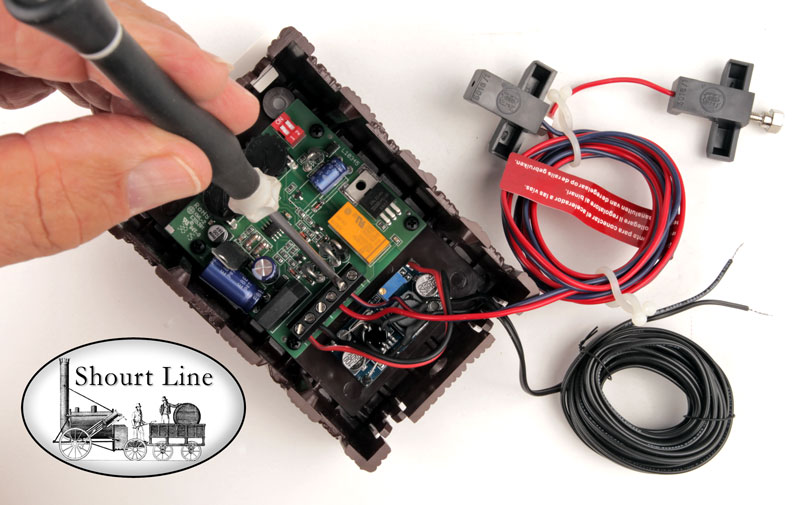

Step 5: Connect the LGB track power clamps that come with the set to the terminals shown above (see the instruction manual if you are not sure of which terminals to use) Hint: route the wires through the center hole at the back of the bumper before attaching.
Step 6: Ensure that your wires can exit the case without being pinched by the track when the bumper is attached. The rear hole at the back of the unit can be used or the wires can be routed down under your track.

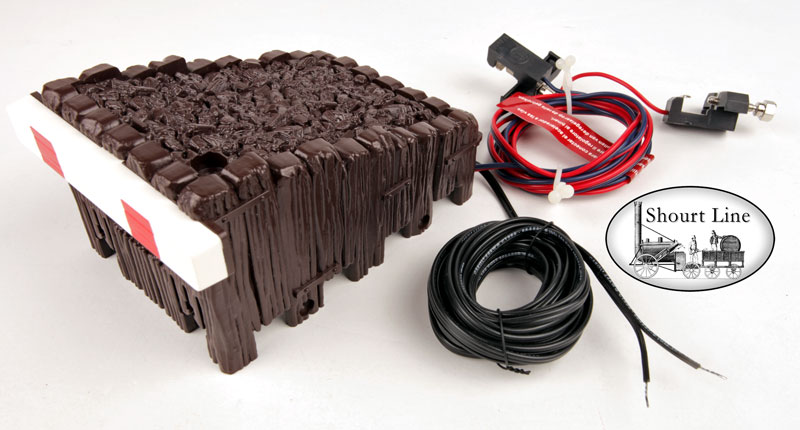

Step 7: Turn the bumper over and route the 10 foot input power connector your choice of power source from 14 to 24 volts AC, DC or DCC. Connect the LGB track clips as shown in the included LGB instructions.
Follow the direction for setting the stop time and acceleration and breaking delays as well as the speed of your loco by use of the 25 turn blue adjustment pot by turning the brass screw (see photos above the SL instruction sheet for details)
All Aboard! Your choice of loco will now shuttle back and for with acceleration on staring and deceleration on breaking as long as power is on. To stop the train turn off your power source.
Photos:

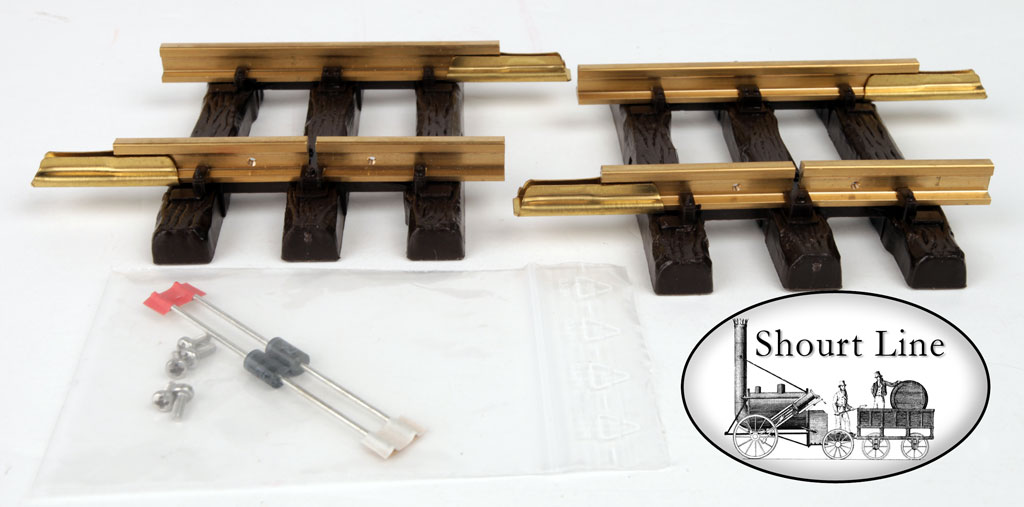

The set comes with two LGB isolated tracks with power diodes and bolts for mounting the diodes across the gaps in each section of track.
Don't forget to order the Shourt Line SL8453303 Precision Train Throttle (shown above) that fits inside the LGB bumper next to the shuttle electronics board (see photos above)
For questions or details on this or any of our over 5000 G Scale items Call 310-622-4431
Thanks for looking - Shourt Line by Soft Works Ltd.
