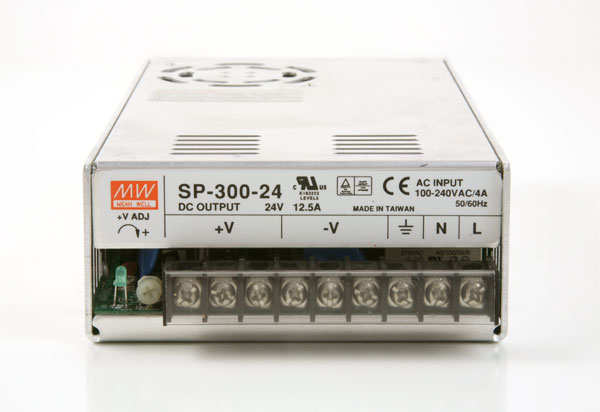

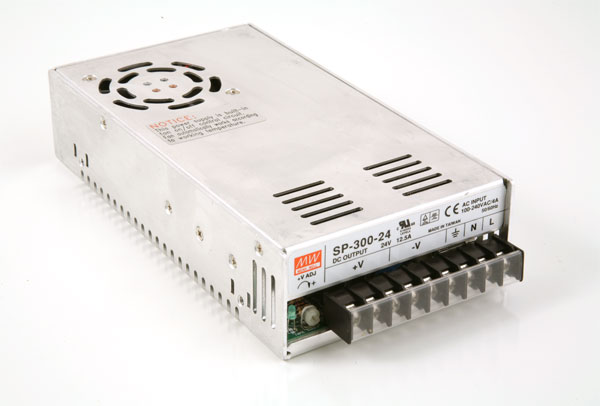

The SL-PS300-1-27F regulated switching power supply outputs 24 volts at 12.5 amps. This supply matches the Digitrax DCS-200 8 amp & the Massoth 1203B 12 amp booster/central stations as well as our analog throttle SL-TLC12F (Click here to view) for DC operation

• Universal AC input / full range with PFC (Power Factor Correction)

• Forced air cooling by built-in DC fan

• Cooling fan ON/OFF auto control

• Over load, over voltage, over temperature & short circuit protection

• 100% full load burn-in test

• 1 year warranty

PFC enabled efficiency: Click here to learn why PFC saves you $$$

Input Voltage: 88 to 264VAC 47 to 63Hz (auto sensing)

Input Current: 12.5 Amps(120VAC) 4 Amps @ 120VAC, 2 Amps @ 230VAC

Output Voltage: 24Volts (Front panel adjustable from 18.4 to 27.4 VDC

Output Current: 12.5 ADC (DC Amps) at 230VAC

Output Current: 300VA (300 watts) at 230VAC

Output Ripple: 150 mv (millivolt) Max. / 2 mv Typical

Dimensions: 215 x 115 x 50 mm

Weight: 2.6 pounds

Specifications:

• Enclosed regulated switching supply.
• Over Voltage protected
• Current protected
• LED output indicator
• Terminal strip In/Out
• PFC - Energy Efficient Switching Supply

M.T.F.B.: > 168K hours ( according to MIL-HDBK-217F at 25°C environment)

Safety approvals: UL, c-UL, TÜV, CB, CE.

Mounting: Bottom; 4 ea. 4-M4 L=5mm & 4ea. 5-m3 L=3mm brass threaded mounted holes. Side; 4 ea. 4-M4 L=6mm brass threaded mounted holes..

Cables: not included. (All cables are included in the SL-PS300-1-27&TLC1cv SET (click her to view)

Easily change the output voltage from the front panel

• Factory Set at 24 Volts

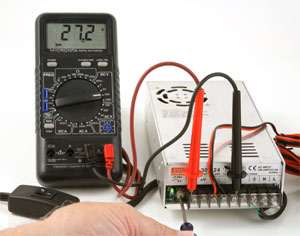

Boost the voltage to compensate for line voltage drops.

• 27.2 Volts Maximum

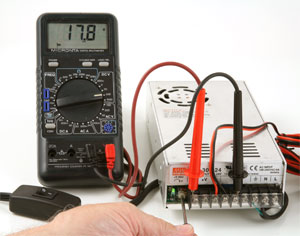

Lower the voltage to match your engines voltage requirements.

• 17.8 Volts Minimum

Protect your train's smoke stack heating element, lighting and electronics by setting the voltage of your choice.

• UL listed
• 10 feet long
• 3 wire cable
• Molded three prong AC plug
• ON/OFF switch located 1 foot from the end of the cable.
• Rated 300 Volts,
• 105 deg. C,
• 18 AWG with a center green ground wire.

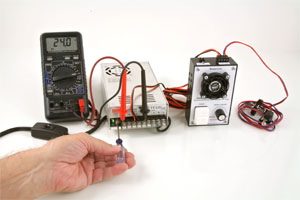

1. Attach an AC grounded power cord to the power supply.
2. Attach 18 gauge wires between the supply and 1 or 2 SL-TLC1cv DC throttle.
3. Attach wires between the SL-TLC1cv and your track.

This combination provides 200VA of power and 24VDC PURE LINEAR POWER at 6 Amps continuous/12.5 amps peak. Maximum power supply output voltage can be adjusted from 17.8 to 27.2 Volts DC by turning the adjustment control on the supply front Panel. (See photo below)

Attach an AC grounded power cord to the power supply.

1. Attach two wires between the supply and your DCC central station or booster (Digitrax DCS 200 shown).
2. Attach wires between the DCC central station or booster and your track.
3. Plug in the power supply

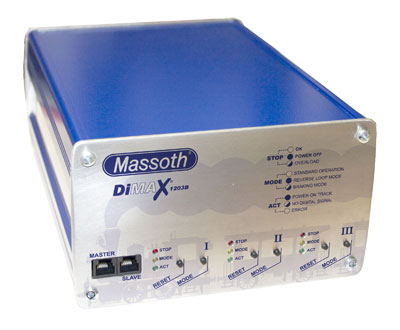

The SL-PS300-1-27 power supply is a perfect match to the Massoth 1203 B 12 amp booster to provide 12 amps of continuous DCC power. The supply may also be used with other manufactures DCC central stations and boosters.

Massoth is the maker of all LGB electronics and Massoth is the only manufacture that makes DCC/MTS products that meet BOTH NMRA DCC standards AND LGB type I, II and III MTS standards. This means this is the only product line guaranteed to operate ALL your old and new LGB locomotives with type I, II and III decoders as well as all NMRA standard DCC products.
