SL-PS200-1-27F New 24 Volt DC, 8.3 Amp, 200 Watt - Pure DC

DC Regulated Switching Power Supply for Any Scale Trains - For Analog DC or MTS DCC

Price: $69.95 New

Features:

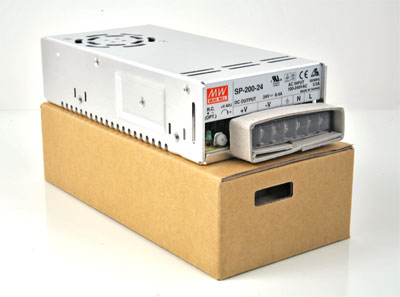

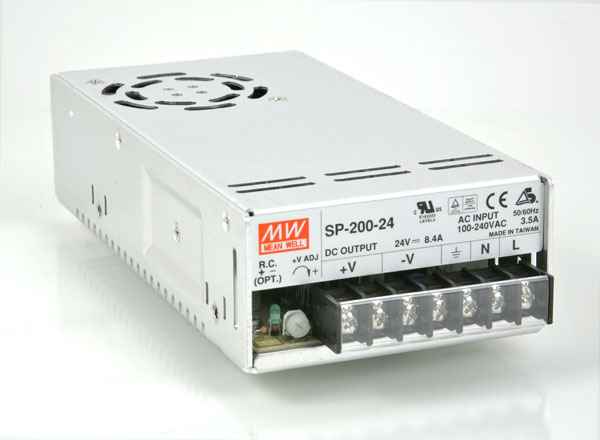

The SL-PS200-1-27F regulated switching power supply with auto speed low noise fan - outputs 24 volts at 8.3 amps. This supply matches the Massoth 800Z 8 amp booster/central station, Digitrax DCS-200 8 amp booster/central station, our analog throttle SL-TLC1F (Click here to view) for DC operation and many other throttles and DCC devices.

PFC enabled efficiency: Click here to learn why PFC saves you energy

Specifications:
Mfg: Made in the Taiwan by Mean Well (click here to view pdf Mfg. Specification Sheet).

Input Voltage: 120/240VAC 50/60Hz (Switch Selected)
Input Current: 5 Amps(120VAX) 3.3 Amps (240VAC)

Output Voltage: 24Volts (Front pannel adjustable from 19.5 to 27.4 VDC typical)
Output Current: 8.3 ADC (DC Amps)
Output Watts: 201.6Watts (201.6VA)
Output Ripple: 150 mv (millivolt) Max. / 2 mv Typical

Efficiency: 84%
Dimensions: 199*99*50mm (L*W*H)
Weight: 24 Oz.

Features:

  • Universal AC input / full range
  • Enclosed regulated switching supply.
  • Built-in cooling fan auto speed control
  • Over Voltage protected
  • Built-in active PFC function, PF>0.95
  • LED output indicator
  • Terminal strip In/Out
  • PFC - Energy Efficient Switching Supply
  • Constant current limiting, recovers automatically after fault condition is removed

Protections: Short circuit/Over load/Over voltage/Over temperature
Safety approvals: ULusa/canada/CE listed.

MTBF (mean time before failure): 183.8K hrs min. MIL-HDBK-217F (25 )

Mounting: left & right side 4 ea. 3-M4 L=6mm mounts.

Cables: not included. (All cables are included in the SL-PS200-1-27F&TLC8F SET ).

Built in auto fan speed control.

  • Very low noise
  • Cools supply
  • Cools DCC boosters also

Front Panel Voltage Adjustment

  • Adjust while running
  • Keeps your exact voltage

Easy to adjust output voltage via front pannel

  • 27.4 Volts Maximum

  • 19.5 Volts Minimum

Low ripple and noise

  • 150 mv Max.
  • 1.8 mv Typical

Options:

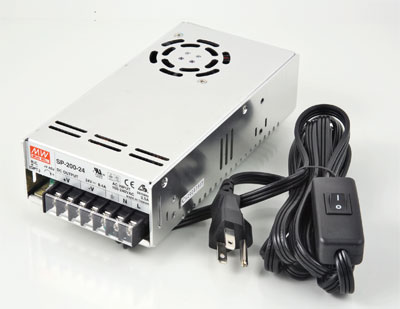

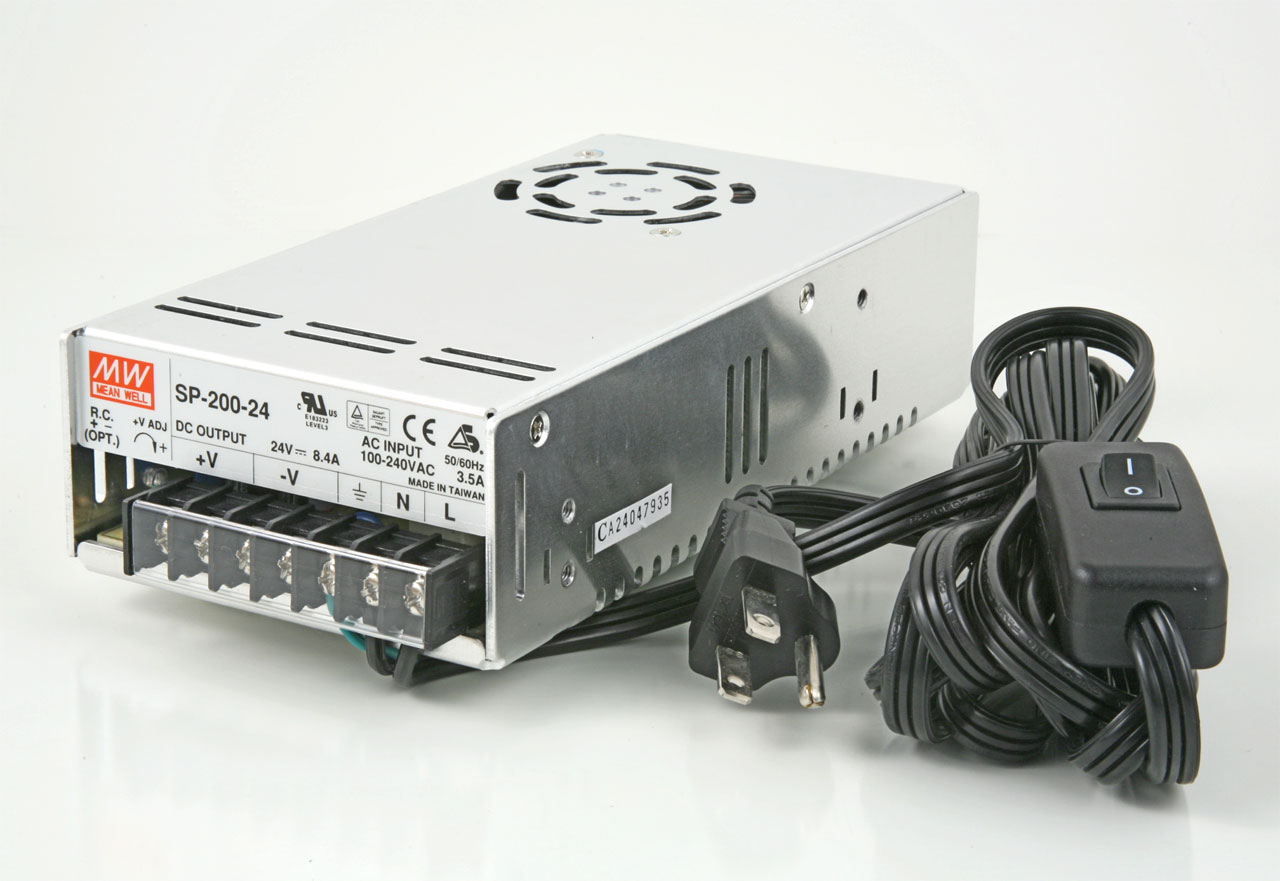

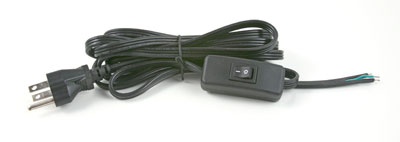

SL-AC-10SW A10' AC Cord & Switch: sold out
  • UL listed
  • 10 feet long
  • 3 wire cable
  • Molded three prong AC plug
  • ON/OFF switch located 1 foot from the end of the cable.
  • Rated 300 Volts,
  • 105 deg. C,
  • 18 AWG with a center green gound wire.

The cable is easly attached to the power supply using only a screw driver.

The ON/OFF switch makes controlling power to the supply very easy.


How to hook up and run your trains:
To Run Trains on DC power:
  1. Attach an AC grounded power cord to the power supply
  2. Attach 18 guage wires between the supply and our SL-TLC8F DC throllte
  3. Attach wires between the SL-TLC1cv and your track.

This combination provides 200VA of power and 24VDC PURE LINEAR POWER at 6 Amps continuous/8.3 amps peak. Maximum power supply output voltage can be adjusted from 18.4 to 27.4 Volts DC by turning the adjustment control on the supplys front pannel. (see photo below)

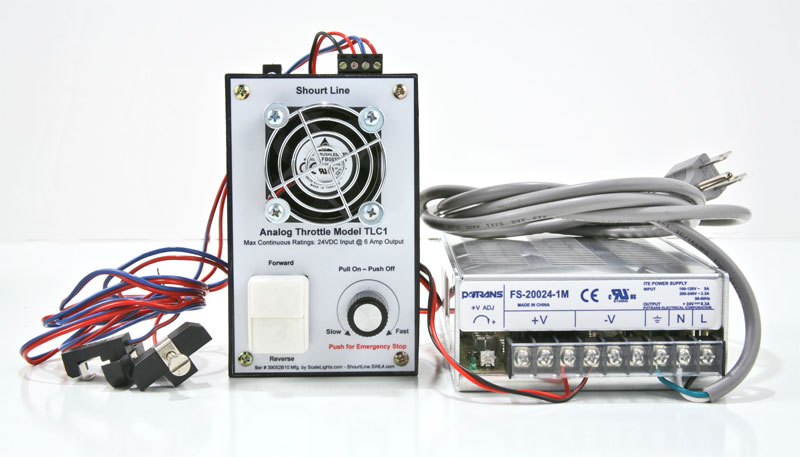

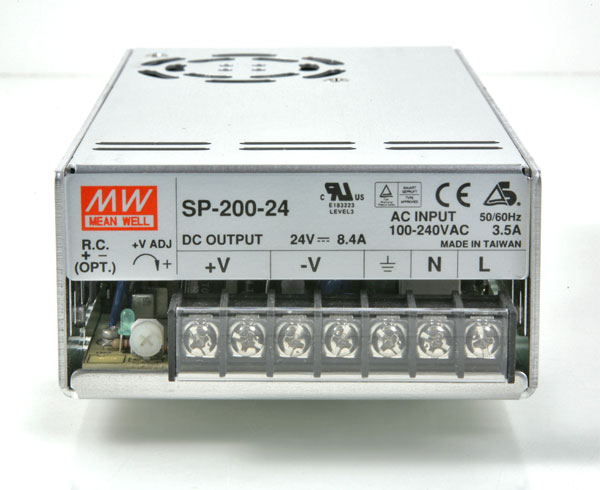

The power supply is perfect for use with our TLC1 Throttle shown above with track clips in our SL-PS200-1-27F&TLC8F SET (click her to view). The +V Adj contol on the font pannel makes this the perfect 8.3 amp 17.4 to 27.4 Volt DC Power supply for DC or DCC (MTS) power.

To Run Trains on Massoth MTS/DDC power:

  1. Attach an AC grounded power cord to the power supply. (see optional cord above)
  2. Attach two wires between the supply and your Massoth DiMAX 800Z DCC central station
  3. Attach wires between the DCC central station or booster and your track. (notice Massoth's cooling fan allowing placement of power supply anywhere)
  4. Plug in the power supply

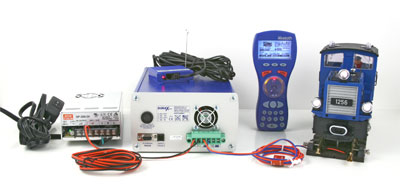

SL-PS200-1-27 + Massoth DiMAX 800Z = ULTIMATE WIRELESS LGB MTS & DCC TRAIN CONTROL

To Run Trains on Digitrax DDC power:

  1. Attach an AC grounded power cord to the power supply. (see optional cord above)
  2. Attach two wires between the supply and your DCC central station or booster (Massoth DiMAX 800Z shown).
  3. Attach wires between the DCC central station or booster and your track.

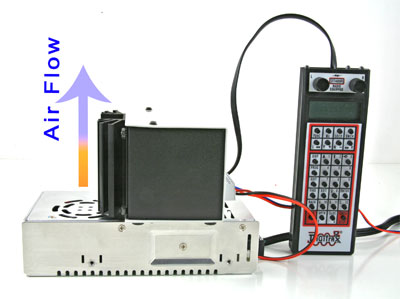

  4. Place Digitrax booster or station on power supply so Digitrax heat sink is over fax exaust (this allows colling of Digitrax which has no fan and should have one for 8 amp output)
  5. Plug in the power supply

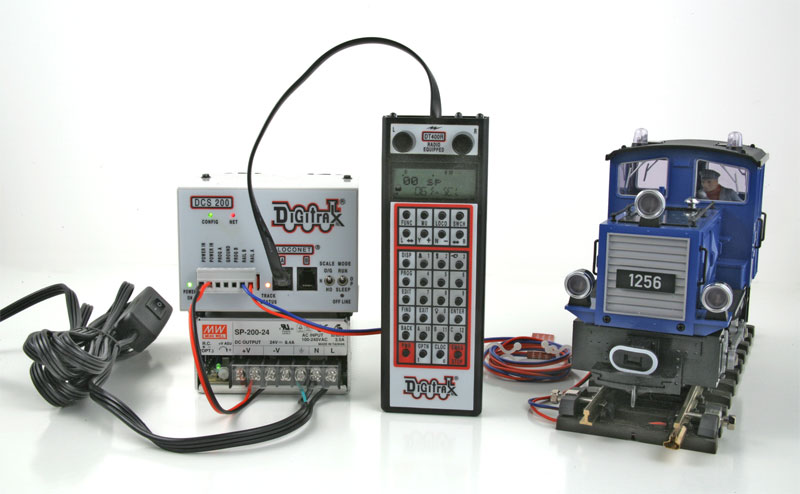

SL-PS200-1-27F (8.3A) + Digitrax DCS 200 = Wireless DCC Train Control
