G Scale DC Wireless Train Controller Starter Set

SL-PIKO-DC-5-PS-Kit Including

  • PIKO 35002 DC Analog G Controller 5 Amps
  • PIKO 35021 Wireless Navigator Remote for DCC, MTS or DC
  • PIKO 35022 Wireless Receiver for DCC, MTS or DC
  • Shourt Line 5112406 SL 6.5 Amp 24V Power Supply (adjustable)
  • AC and DC power cords

Complete Wireless Analog G Scale Train Control System

PIKO SL-PIKO-DC-5-PS-Kit DC Wireless Starter Set 5 Amps
New in PIKO factory sealed boxes

Click here for more product details and larger photos

For questions or details on our professional sound and DCC conversion services
Call 3
10-622-4431 or email us at info@ShourtLine.com

Features:

Complete Wireless DC Controler for loco speed & direction operation locally on the controller or wireless control from the PIKO Navigator that is DiMAX bus compatible.

Set Features:

  • All PIKO Items Made in GERMANY
  • 2 year guarantee by PIKO America
  • PIKO components are weather resistant for Indoor and Outdoor operation
  • Easy Setup
  • Easy Operation

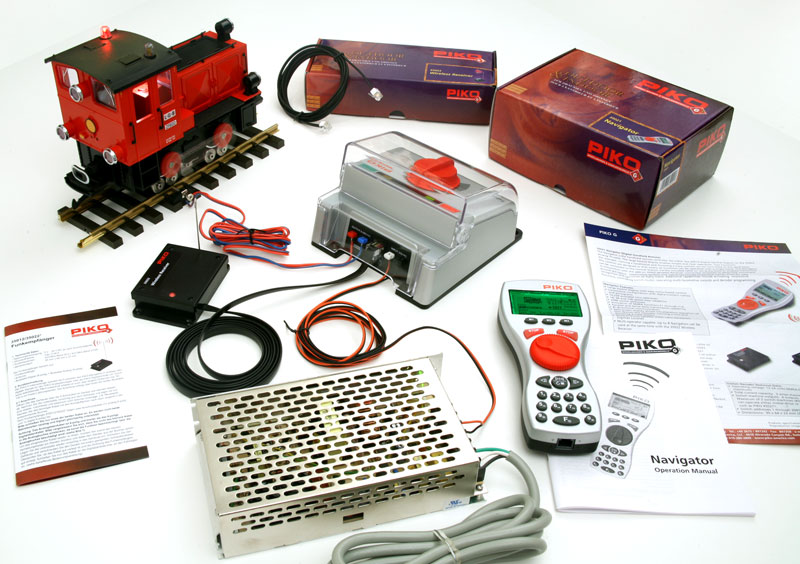

PIKO SL-PIKO-DC-5-PS-Kit DC Wireless Starter Set 5 Amps

PIKO SL-PIKO-DC-5-PS-Kit DC Wireless Starter Set 5 Amps
Complete set as shown above (track, track clips and loco available separately)

Features:

  • Up to 5 Amps track current
  • Loco control via controller rotary dial or PIKO wireless Navigator
  • Thermal overload control / automatic overheat protection
  • Automatic short circuit protection
  • Operational control light
  • Power control Indicator
  • Emergency STOP indication
  • Push button Emergency STOP
  • 1 connector on Controller for Analog Bus
  • Special plastic coverer on front and rear for water resistance
  • For Indoor and Outdoor use

PIKO 35002 DC Analog G Controller 5 Amps

35002 DC Analog G Controller 5 Amps

Easy to Operate
Works with or without the wireless PIKO Navigator supplied with this set.

Controls: The rotary speed control is intuitive with a center off detent, rotate the control knob to smoothly control the speed and direction of your trains. For emergency stop; push the large red button for quickly but smoothly stoping your train, this smooth stopping avoids derailments due to instantaneous stops. In the event of a short-circuit or overload the throttle will shut itself off; to re-start the throttle return the throttle to the center position, wait for the LED to show blinking red and push the red button to restart.

Indicator Lights: Next to the stop button is the status LED; blinking red = emergency stop, green = running, solid red = overheated. Next to the green boost button is an amber LED indicating the voltage output level of the controller.

35002 DC Analog G Controller

List of properties:

  • 5 amps of DC (Analog) track power
  • Easy to Operate
  • Rotary Speed Control
  • Emergency Stop Button
  • Boost Button
  • LED Status Indicator
  • LED Power/Voltage Indicator
  • Quick connect power and track connectors
  • 8 Pin Analog Data Port for wirelss operation
  • Automatic Short-Circut and Overload Protection
  • Automatic Over Temerature Protection
  • Mounting holes on base for permant placement
  • Indoor/Outdoor Operation

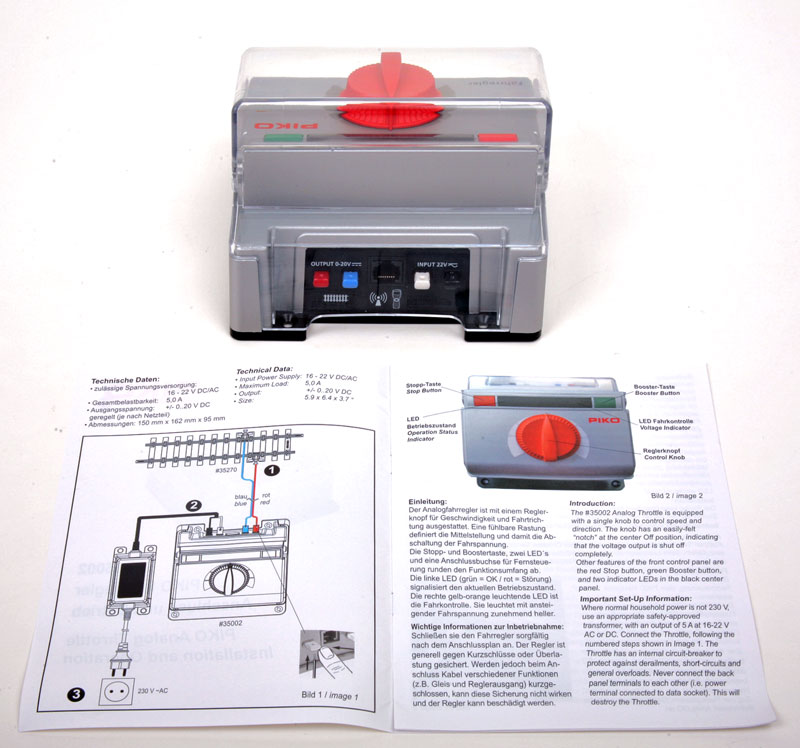

35002 DC Analog G Controller

Indoor/Outdoor Operation:

The control panel and rear connector feature clear hinged covers that protect the controller from the dirt, dust and weather for outdoor operation.

35002 DC Analog G Controller

The PIKO Controller includes:

  • PIKO 35002 DC Analog G Controller
  • Instructions
  • Factory box to hold all items

PIKO 35021 Wireless Navigator Remote for DCC, MTS or DC

PIKO 35021 Wireless Navigator Remote for DCC, MTS or DCPIKO 35021 Wireless Navigator Remote for DCC, MTS or DC

PIKO DiMAX Navigator
Now you can enjoy the never ending liberty of controlling your model railroad utilizing the PIKO DiMAX bus compatible Navigator. This wireless hand held control offers a variety of enhanced features no other remote control offers. For either DC (analog) or DCC contoller.

No limits
The PIKO DiMAX navigator provides wireless remote control. The wireless system is working bidirectional on FM and it is fail-safe. You may roam freely in or around your layout. You may rechargeable or alkline batteries for days of use. The range is up to 1000 feet outdoors.

Illumination
The DiMAX navigator is one of the few hand held controllers on the market that feature a back lighted graphical display and back lighted emergency stop buttons. The dial type throttle is easy and intuitive to use and the stop keys provide emergency stop and release of emergency stop wirelessly.

Ergonomic design
The housing is ergonomically designed with the weight being perfectly balanced. The symmetric design serves both left and right hand control.

High resolution graphic display
The large crystal display with its white back light shows the exact operating situation of your locomotives as well as your layout. More than 100 locomotive pictures are stored. Every locomotive is displayed with a real picture on the crystal screen and you may name your locomotives individually. This enables you to distinguish between locomotives of the same type. The display also shows the state of the 16 functions of your locomotive, light symbol, the driving direction and the speed as a numeric value and as a progressive bar

List of properties:

  • Operates on only 3 AAA batteries for days (rechargeable or alkaline)
  • 10239 locomotive addresses with DCC operation
  • 14, 28, and 128 speed steps with DCC operation
  • Functions F1 to F16 + light function (as key) with DCC operation
  • Locomotive pictures of all commonly used models in G-Scale (all LGB models integrated)
  • locomotive name (alphanumeric)
  • parallel and serial data processing with DCC operation
  • two operation modes at the same time (with DCC operation): 2x locomotive driving mode or 1x locomotive driving mode + 1x switch control mode or switch routes,...
  • easy to use control menu
  • programmable STOP keys
  • 16 x 4-fold consist operation with DCC operation
  • 16 switch routes with 15 switches each with DCC operation
  • 2048 switch addresses with DCC operation
  • 2048 feedback addresses with DCC operation
  • 32 automatic functions for driving and switching with DCC operation
  • System display
  • Blocking function (mode with limited functions, e.g. as a child protection) with DCC operation

Programming
The DiMAX Navigator (with DCC operation) supports all common programming procedures. The programming procedures depends on the DCC system used.

- CV programming ( direct and indirect ) now with MZS III too
- CV reading
- register programming
- POM Program on Main (program on the main driving track)
- Locomotive address programming (direct input of the desired address)

Language selection
The Navigator can to either German or English.

DiMAX and MZS III
The PIKO DiMAX Navigator is designed to be used with a cable connection or wireless and it is compatible to the LGB© MTS III system. If you use the DiMAX Navigator with the LGB© MTS III system the PIKO DiMAX Navigator can only perform within the limited capabilities of the LGB© MTS III system but is unlimited with the PIKO Central Station.

The PIKO DiMAX bus compatible Navigator includes:

  • DiMAX Wireless Navigator for US
  • 20' bus cord for connecting to throttles, accessories and/or receivers
  • Instructions
  • Factory box to hold all items

PIKO 35022 Wireless Receiver for DCC, MTS or DC

PIKO 35022 Wireless Receiver for DCC, MTS or DCPIKO 35022 Wireless Receiver for DCC, MTS or DC

The PIKO DiMAX compatible Receiver enables you to wirelessly operate the PIKO Navigator with a PIKO DC Controller, DCC central station or Massoth or LGB MTS III central station without wires at up to 1000 feet. The PIKO Receiver facilitates the operation of a maximum of 8 PIKO Navigators or Massoth Navigators at the same time.

Charging power is provided by the digital bus. A range of up to 1000 ft facilitates a safe operation at all times. 4 frequencies are available to ensure an operation without interferences by other devices. An activity LED reports the current operating status of the receiver at all times.

The PIKO Multi Receiver is equipped with the latest state-of-the-art technology is sealed for Indoor and Outdoor operation.

The DiMAX receiver includes:

  • DiMAX Wireless Receiver for US
  • Analog and Digital cords for connecting via Analog port on a DC controller or Digital port on a central station
  • Instructions
  • Factory box to hold all items

Shourt Line 5112406 SL 6.5 Amp 24V Power Supply (adjustable)

Shourt Line 5112406 Regulated 24V 6.5A power supply

Shourt Line 5112406 Regulated 24V 6.5A power supply adjustment animation

Easy to use full feature regulated power supply with regulated pure DC power a superior power source and direct replacement for hard to find LGB 50111.

Features:

  • High efficiency
  • High reliability
  • Silent Operation - No Fan required
  • Protections:
    • Over-voltage
    • Over-current
    • Over-power
    • Short-circuit
  • UL & CE certified
  • Output reverse protection
  • VAC input range selected by switch
  • 100% full load burn-in test
  • EMI/RFI: FCC Part 15J, Class A & CISPR 22 Class A
  • DC adjust range
  • Free air cooling convection
  • LED Power on indication
  • Mfg. Warranty: 3 years
  • 199* 110* 50 mm
  • Weight: 0.73kgs/

Shourt Line AC and DC power cords

Features:

  • Grounded 6 foot AC cord
  • DC 6 foot power cord for connecting the power supply to the central station

How to hookup the NEW SL-PIKO-DDC-5-PS-Kit - Complete MTS/DCC system for wired or wireless control:

The SL-PS150-1-24 if a perfect fit to power the new PIKO MTS/DCC 5 amp central station and PIKO 5 amp boosters.

Gain complete MTS II, III (Serial and Parallel) as well as NRMR DCC control and programming with the new PIKO central station, PIKO Wireless Navigator and optional PIKO Wireless Receiver (shown below - available at our store.)


1) Connect the Power supply + and - terminals outputs to your central station's input terminals

PIKO 5 Amp Central Station Rear connectors

2) Connect track to the central station outputs

PIKO 5 Amp Central Station Rear connectors

3) Plug your choice of PIKO DiMAX Navigator or Massoth Navigator into the central station or use the New PIKO wireless Receiver shown below for wireless control and decoder programming.

PIKO SL-PIKO-DC-5-PS-Kit DC Wireless Starter Set 5 Amps
Complete wireless DC (analog) control kit: SL-PIKO-DC-5-PS-Kit (see store for price) includes the following items; PIKO 35002 DC Analog G Throttle/Controller 5 Amps (see store for price),  PIKO Wireless Receiver (Transceiver)(see store for price), PIKO Navigator bi-directional wireless throttle (see store for price), SL-PS150-1-24 G Scale Regulated Power Supply (see store for price) and DC and AC power cables (PIKO quick connect track clips are also available). See our store for details

4) Connect AC power and run your trains

Click here for more product details and larger photos

Questions? Email info@ShourtLine.com by clicking here
