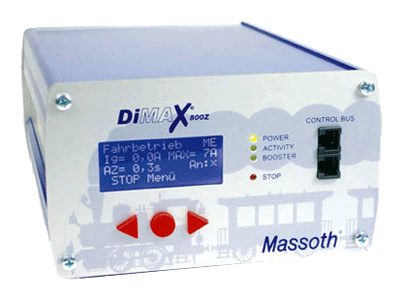

SL-Massoth-DiMAX 800 Z

MTS/DCC 8 amp Central Station for digital control of all scale trains

DiMAX 800 Z for DCC NMRA Standard and LGB MTS I, II and III Standards with any scale train

Features:

The DiMAX 800Z Digital Central Station is a favorable alternative since it is built on the same technical properties as the DiMAX 1200Z. Up to 8 Amps driving current without an integrated transformer allows using the 800Z for all scales from Z to G. Operating Voltage: 16 to 24 Volts DC or 12 to 18 Volts AC. The current output can be adjusted to 2, 4, or 8 Amps. This option is desirable for smaller scales.

Since July 2005 the 800Z features a voltage limitation of 23.5 V which is the optimum for garden layouts which often suffer of voltage drops. This should not be a problem for decoders that are in compliance with the NMRA standard. This standard requires decoders to be able to handle voltages up to 27 V. Decoders of Massoth and LGB are tested for max 30V to be able to guarantee a stable and consistent operation.

A separate programming track outlet, booster connection and a user friendly PC Programming interface are integrated as well. The 800Z provides a connector for LGB or DiMAX boosters on the back of the unit. Other NMRA compatible boosters may be used.

Properties:

  • Up to 8 Amps track current
  • Adjustable max track current: 2 Amps, 4 Amps, or 8 Amps ;according to the needs of the layout
  • External power supply with max. 18 Volts AC, or max. 24 Volts DC
    (Gauge N to G)
  • Output current at 22-24 V : max. 8 Amps (only for G-Scale recommended)
  • Easy to read display with blue background lighting
  • Selectable parallel or serial data processing (may be defined individually for each locomotive)
  • Thermal overload control / automatic overheat protection
  • Temperature controlled fan
  • Automatic short circuit protection (cut off time adjustable)
  • Additional program track outlet ( 2 Amps max.)
  • Operation control light
  • Activity control light
  • Booster control light
  • STOP control light (supports MTS blinking emergency stop light)
  • Push button with STOP function
  • Easy to use menu control by 3 push buttons
  • 2 connectors for peripheral units
  • 1 booster connector for DiMAX and LGB boosters
  • 1 booster connector for NMRA DCC
  • 2 Amp control bus for 8 input devices and 30 control units
  • Selectable control bus protocol: DiMAX Massoth or LGB MTS II
  • Operational control by DiMAX Navigator or LGB MTS components ( Loco Remote, Universal Remote, etc..)
  • PC Interface (RS 232) for firmware updates of all DiMAX bus components (central station, Navigator, etc.)
  • Free firmware update downloads
  • Massoth bus protocol 100% compatible to NMRA DCC Standard
  • Top quality aluminum housing
  • Explicit operation manual, available as PDF download too
  • CE certified

.Dimensions: 170 x 100 x 245 mm

Click here to view the manual:

Click here to view the details at Massoth's web site

The DiMAX 800 Z Central Station includes:

  • DiMAX 800Z 8 amp Central Station
  • 20' bus cord for connecting to throttles, accessories and/or receivers
  • Removeable power plug for easy station set up
  • Instructions
  • Factory box and foam insert to hold all items
  • 3 year warrentee by Massoth USA

SL Discount Price: Contact us for current pricing

Photos:

Massoth - DiMAX 800Z 8 amp MTS/DCC central station, Navigator Wireless Bidirectional Throttle, DiMAX RC Receiver.

The 800Z dispalay shows your input voltage, output current and maximum output current so it is easy to set the desired input voltage and output current to match your system needs. NO PROGRAMMING is required to run your trains!
Rear view: removeable power connector for input and track and programming outputs. RS232 serial interface and booster connectors shown above allow computer control and unlimited expansion of your railraod.
Easy setup: Add one of our pure power DC supplies, and a throttle (Massoth DiMax Navigator shown above with wireless receiver) and you are ready to power your track, train and accessories. Visit our listings or our eBay store for see all these items.
Front view of a running system: All you need is a screw drive to connect power and you can run all you G scale and LGB vintage MTS as well as DCC equiped locos and accessories. The DiMAX 800Z shows the input voltage so it is easy to adjust the voltage to match your system needs and the 800Z LCD dispaly also shows the current running throught your locos as well.
Test drive the 800Z system today! For fastest delivery we ship all Massoth items directly from Massoth USA - factory sealed
