G Scale LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires - requires an SL LED controller

Ready to run; pre-wired - ready to run with an optional SL LED controller

Shourt Line Product Number: No. SL-8201550 Prewired ready to install

Mount to any vertical wall or building in seconds

Direct From Manufacturer- Made in the USA USA flag

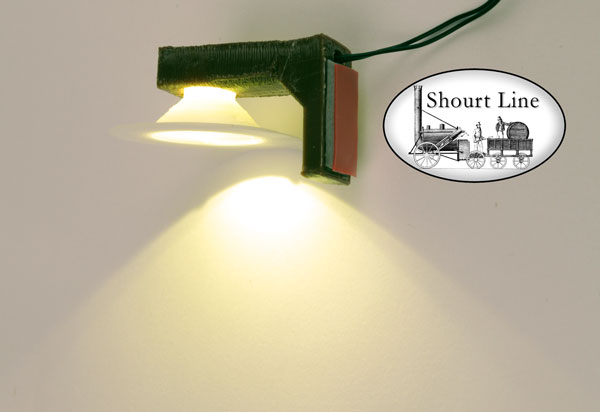

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
(building & LED controller not included but available at our store.

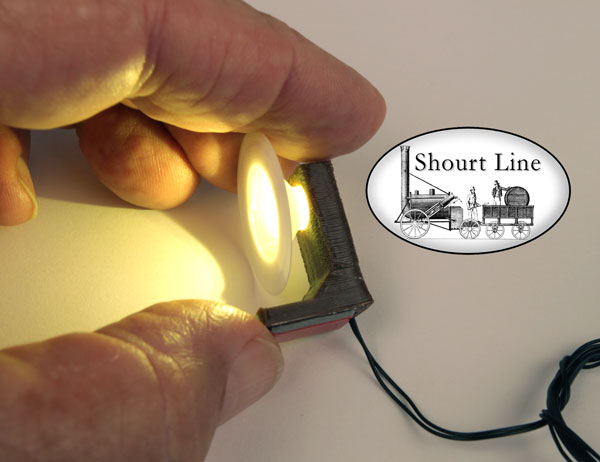

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
Mounts on any wall or building, perfect for exterior or interior lighting. (building & LED controller not included but available at our store.


This video shows exterior 1 LED Opal Wall Mount Light fixture mounted on a PIKO cabin (not included)
To replay the video click the replay icon on the bottom left of the screen above or refresh this page.
(building & LED controller not included but available at our store.

Shourt Line Direct Discount Price: $6.95 New

Description:

This new, easy to use Tiffany style white opal lamp fixture with simulated wood right angle mounting bracket and peel-and-stick 3M mounting pad uses a high intensity warm white LED. This is one of the second series of G scale prototypical light fixtures available from the shourt line. The first used simulated oil lamp fixtures. This one spans the period spanning gas to electric illumination. It has a Tiffany style opal lamp shade for period design and a special wall mounting bracket so it can be used on any vertical wall or building.

This 1 LED fixture does requires the use of a Shourt Line LED controller dimmer for safe and efficient operation and works without the use of dropping resistors or complicated formulas. The SL LED controllers are available with solder and screw type terminals for in car wall and ceiling mounts as well as under car mounting on any G scale short or long cars.

The SL LED controller is up to 94% efficient so that even the LGB starter set power pack will power a loco, its lights and 12 LED lamps plus additional car lighting for future expansion. The newest SL LED controller is unique in operating at 1/6th the power of any other available and it also works at the lowest track voltage or no track voltage, it fact it operates 8 LEDs up to 5 minutes without any track power!

Features:

  • SL-82913230
    • High Output
    • Warm White LED color for matching bulb color temperature
      • Warm Warm White (WWW) and Yellow Warm White (YWW) color also available on request.
    • Opal Lamp shade for diffused lighting
    • Prototypical Appearance
    • Right angle mounting bracket permits mounting on any vertical surface
    • Simulated wood mounting bracket with 3M adhesive
    • Peel and Stick Installation
    • Hidden wiring
    • Dimensions:
      • Lamp diameter: 16mm (1.1")
      • Fixture height: 20mm (.78")
      • Depth distance from wall: 35mm (1.38")
      • Fixture mounting pad dimensions: 11mm (.43") x 20mm (.78")
      • Wire: 2 each 30 AWG solid copper plated with black jacket each 18 inches long
    • Default color temperature is Warm White which is matched for 3,200 degrees Kelvin that matches LGB two pin bulbs in color temperature. Use the Incandescent setting on your camera from proper color temperature in your photos.
    • At the time of order you can request the Yellow Warm White or the Warm Warm White but we recommend using the Warm White standard unless you want to simulate a yellow outdoor bug light (YWW) or candle flame (WWW) see the photos below to compare.

    G Scale SL-8291230 1 LED Tiffany Opal Lamp Fixture - Low Profile Flat peel and stick 3M mount - 18 inch micro black wires
    You will receive the recommended Warm White LED lamp fixture shown on the right side of the photo above unless you request the WWW or the YWW color temperature LEDS with your order. Note the difference in color temperature in the pools of light from each fixture. The Warm White is recommended but the other color temperatures are available upon request.

Instructions: The photos shown below are for examples of use, wiring and placement. Only a single Tiffany style Opal LED fixture with simulated wood mounting bracket and pre wired with 18 inch leads come with this item.

This item requires an SL LED controller for safe and efficient operation. We install lighting products an all makes of G scale cars if you do not want to do it yourself. SL LED controllers area available in both solder and screw terminal types. We will set up the controller of your choice when requested so you do not have to adjust the voltage per the instructions that comes with each controller. A volt/amp meter is required to set the safe operating voltage on our SL LED controllers. Other makes and models of controllers may not work with direct parallel wiring of LEDs. If you want to use another controller be sure to use dropping resistors on each LED as they usually will not provide proper operation without them. All our controller work without dropping resistors.

  1. Adjust your SL Lighting controller using the instructions provided with your controller
  2. Do not use a voltage above 3.1 volts
  3. Test the fixture by connecting the long stripped wire to + and the shorter stripped wire to - output of a Shour Line LED controller that has been previously set to the proper voltage
  4. Check to see the lamp turn on, if not reverse the leads and retest - mark the + and - leads of the lamp for later wiring to the controller
  5. If the lamps fails to light contract us at the ShourtLine.com
  6. Clean the surface where you want to mount the fixture with an alcohol wipe
  7. Peel off the read tape to reveal the 3M adhesive pad
  8. Hold the fixture above the mounting surface to check the correct position before it touches the mounting surface.
  9. Apply gentle pressure by pushing the 3M pad mounting bracket firmly.
  10. Route the wires to an an existing SL lighting fixture and SL LED controller or a separate SL LED Controller of your choice

Use only with an SL LED controller; damage to your led fixture is not covered with other controllers or if instructions are not followed.

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
Each fixture comes with 18 inch micro cable leads for installation any vertical surface or building. The lighting fixtures provides wide angle illumination as shown above.

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
To install, clean the surface you want to mount to with an alcohol wipe, peel off the read tape to reveal the 3M adhesive pad and apply.

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
This photo shows a SL-8201550 fixture mounted to the wall of a PIKO cabin. Optionally drill a hole for wires prior to mouting to conceil wiring. (building & LED controller not included but available at our store.

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
The lamp is wired to an SL-8452403 Micro Size Train Throttle & LED controller DC with an SL-6453003 5 Side Snap On Enclosed Case and powered by a 9 volt battery inside the cabin. (building & LED controller not included but available at our store.

SL8453003	Precision Train Throttle & LED controller for power over 200 LEDs from AC,DC or DCC at 4 to 35 volts and includes anti-flicker circuitry

To power from AC DC or DCC track power use the Shourt Line SL-8453003 Precision Train Throttle & LED controller shown above. The controller can power and dim over 300 LEDs at up to 94% efficiency from AC,DC or DCC at 4 to 35 volts. It uses 1/6 the power of all other lighting systems available.(building & LED controller not included but available at our store.

It is easy to wire the this LED lighting fixtures to any existing SL lighting fixture connected to an SL LED controller as ALL LEDs are wired in parallel, + to + and - to -. No dropping resistors are needed or complicated formulas. Up to 300 LEDs can be powered from each SL LED controller.

Photos:

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
(building & LED controller not included but available at our store.

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
(building & LED controller not included but available at our store.
Easy to use peel and stick single LED Tiffany style Opal Lamp Fixture. (building & LED controller not included but available at our store.

G Scale SL-8201550 LED Wall Mount Tiffany Opal Lamp Fixture - Peel & Stick 3M mount - 18 inch micro black wires
Add exterior lighting to your track side buildings! Use these single LED Lamp fixtures where ever you need light.
(building & LED controller not included but available at our store.
