G Scale Ultimate Lighting System, Under Car Case, LED Ctrl-dimmer, UPS Super Cap Buffer, Always on & Aux on Outputs when the train stops

Run full train lighting with low or no track voltage for 5 minutes per 8 LEDs, with an Always On Output plus an Automatic Lighting Aux Output that slowly goes on when the train stops all powered by a UPS 2.5F 11V Super Cap Buffer

SL-6525911 Ultimate Lighting System - Made in the USA

Operate up to 300 LEDs or other load up to 3 amps and 15 watts maximum output.

G Scale SL-6525911 Lighting System, Under Car Case, LED Ctrl-dimmer, UPS Super Cap Buffer, Always on & Aux on Outputs when the train stops Case photo top side not wired
The SL-6525911 lighting system provides; LED control/dimmer functions, a UPS circuit with a DC to DC changer and super capacitor bank for powering all 12 LEDs up to 3 minutes without track power, an Aux Out circuit as shown above can be wired to the exterior lamps so they automatically, slowly turn on when the train stops and go off when the train starts. The Automatic circuit has a special feature that smoothly brings the lamps to full brightness regardless of how fast the train stops.

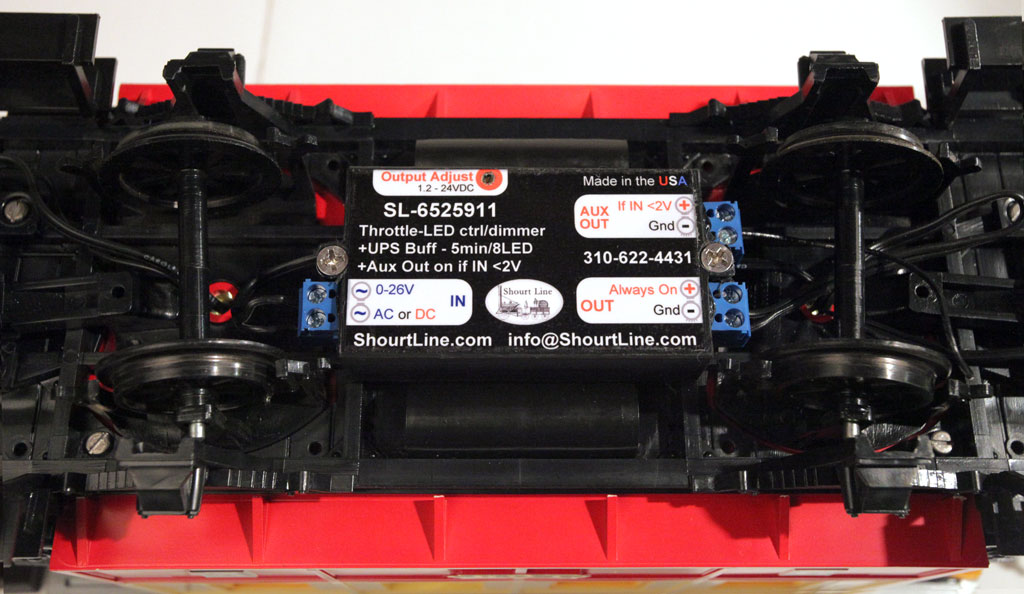

G Scale SL-6525911 Lighting System, Under Car Case, LED Ctrl-dimmer, UPS Super Cap Buffer, Always on & Aux on Outputs when the train stops mounted and wired on LGB short car
Mount on the bottom any short car (LGB passenger car shown above - sold separately.

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System
This photo shows a train with track power off and 12 lamps (LEDs) at full brightness for 3 minutes using the SL-6525911 lighting system mounted on the bottom of the red car. The video below shows the UPS powering the interior lighting without track power and also the automatic slow turn on and off of exterior lighting when the train stops and starts. (Power connectors and train with track not included)


To replay the video click the replay icon on the bottom left of the screen above or refresh the page.

Click here for video, more product details and larger photos

Shourt Line Direct Discount Price: $79.95 New

Description:

This is ultimate lighting system for analog or PWM track powered trains designed and made in the USA by the Shourt Line. This is the only lighting system to provide 5 minutes of full lighting per 8 LEDs at low track voltage or no track voltage, automatically turns on lights of your choice when the train stops and hides all the electronics inside a weatherproof case that looks like a breakman's box under any short car.

The system includes the following: SL under car weatherproof case with the following functions; a 3 Amp throttle & LED controller/dimmer, a UPS (Uninterruptible Power Source) with super capacitor buffer for 3 minutes of lighting at at low or no track power, an always on output and auxiliary output that automatically slowly comes on when the train stops (track power < ~2 volts) and goes off when the train starts (track power > ~2 volts), input for DC (analog) or PWM track power or any source of power DC, PWM, DCC or Battery power up to 30 volts, All input and outputs have screw terminals for easy installation. The lighting system operates with the included LGB train controller or any other type of train controller; analog (DC), PWM DC, AC or DCC.

Use the Always On Outputs for interior lighting and the Aux. Output that slowly goes on when the train stops for the exterior lighting so that passengers can safely enter and exit the train. The Automatic Auxiliary Output adds a unique animated lighting effect that works every time the train stops and starts!

The lighting system is up to 94% efficient so that even the LGB starter set power pack can power a loco and two cars with 12 LEDs plus additional car lighting for future expansion of your railroad. The lighting system is also unique in not only operating at 1/6th the power of any other available type but it also works at the lowest track voltage or no track voltage, it fact it operates up to 3 minutes without any track power! Power up to 300 LEDs with the Shourt Line lighting system, that is over 40 cars with 6 LEDs in each car!

The SL-6525911 Case comes with 2 screws for mounting on an LGB short car in minutes. It also can be used with other cars using the supplied mounting screws. For long length cars use the SL-8525911 version that has the same features and a case with terminals on the long side for easily wiring on long cars.

The SL LED controller includes a dimmer to adjust your choice of lighting level and works at full brightness at slow loco speeds (low track voltage) or no track power for up to 3 minutes via the built in UPS (Uninterrupted Power Source) that utilizes a DC to DC converter for charging a Super Capacitor Bank at up to 94% efficiency. No more dark passenger cars when you stop at the station.

Features:

  • SL-6525911 LED lighting system
    • Power and dimming control over 300 LEDs
    • Weatherproof black case with mounting screws, screw terminals for power in, LED Out and Aux Out
    • SL 8453003 Precision Train Throttle & LED controller
      • Powers, controls and dims the LEDs in the cars (optionally power up to 288 LEDs in additional cars)
      • Up to 94% efficient
      • Very low heat output (less than 1 LGB bulb when powering over 200 LEDs!)
      • High Efficiency at any track voltage
      • Works on any track polarity (forward or reverse train operation)
      • Works with analog (DC), AC, or DCC track power or Battery Power 4-35VDC
    • OUT Always On: keeps cars interior LEDs on with low or no track power
    • AUX OUT: automatic circuit slowly turns on exterior lights when the trains stops and turns off when the train starts
    • UPS Gold Cap Power Buffer to supply all 12 LEDs power for 3 minutes
      • 2.5F 11V Super Capacitor Buffer
        • 3 Amp output
        • > 1,000,000 power cycle life
        • 5min/8 LEDs capacity
      • DC to DC 94% efficient charging circuit
      • Automatic UPS Operation
    • Made in the USA

SL-6525911 Mounting and Wiring:

G Scale SL-6525911 Lighting System, Under Car Case, LED Ctrl-dimmer, UPS Super Cap Buffer, Always on & Aux on Outputs when the train stops Case photo top side not wired
Note that the SL-6525911 fits on the bottom of LGB short cars between the air tanks and terminals at each end allow easy wiring car lighting, wheel or loco power pickups and to additional cars for control and dimming of car lighting. (Power connectors and train with track not included)

G Scale SL-6525911 Lighting System, Under Car Case, LED Ctrl-dimmer, UPS Super Cap Buffer, Always on & Aux on Outputs when the train stops Case photo top side not wired
Mount on the bottom any short car (LGB passenger car shown above - sold separately) in minutes using the mounting screws and mounting holes found on LGB short cars. For non-LGB cars drill a pilot hole in the bottom of the car after placing the SL-6525911 in the center of the bottom as shown above. Test the movement of the trucks to ensure the wheel do not touch the controller case. To dim the LED brightness, place the care on its side as shown above and use a small screw driver to turn the SL-6525911's LED dimmer control (see red circle in photos) counter-clockwise as shown above. See the instructions included in the set for before turning the control clockwise to make the LEDs brighter. (Power connectors and train with track not included)

G Scale SL-6525911 Lighting System, Under Car Case, LED Ctrl-dimmer, UPS Super Cap Buffer, Always on & Aux on Outputs when the train stops Case photo top side not wired
The Case has screw terminal blocks for easy solderless wiring. The case also has pass through slots so SL twin micro cables can be routed through the case to the other side of the car when required. The case is weather proof and the terminals wire connectors are have waterproof connections to the electronics mounted inside. The case lid is on top of the case when mounted to a car and can be made waterproof in minutes using silicon on the weather proof seal built into the lid and on the dimmer adjustment hole on the face of the case.

SL8453003	Precision Train Throttle & LED controller for power over 200 LEDs from AC,DC or DCC at 4 to 35 volts and includes anti-flicker circuitry
The lighting fixtures LED's control and dimming is provided by the miniature SL 8453003 Precision Train Throttle & LED controller mounted inside the SL-6525911 case. The controller can power and dim over 300 LEDs at up to 94% efficiency from AC,DC or DCC at 4 to 35 volts.

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System
This a an example of the SL Interior 4 LED Tiffany style Opal Lamp fixture and two of the SL Exterior 1 LED Tiffany style Opal Lamp fixtures mounted over the exterior platforms. The interior lights are wired to the Always ON output and the exterior lights are wired to the Aux on stop output terminals. (Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System with SL connectors
LED car to car lighting can be done with the SL 3 pin LED connector as shown above. The three connectors provide both Interior and automatic Exterior lighting for up to 40 cars using only one controller. The connectors have a fast release feature in case of derailment so wires can not be damaged. (Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System showing SL Opal Lamp Fixtures Installed
(Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System SL LED Connectors on car
SL 3 pin power connectors provide power and control for the interior and exterior auto on lighting. This photo shows the 3 pin connector at the front of the blue 2nd car. Additional cars with lighting can be added by using the supplied 3 pin connector at the rear of each car as shown below. (Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System using SL LED connectors
The bottom view above shows the SL female 3 pin the rear (right) connector and the SL male 3 pin connector (left) connector. Note the mounting holes at the center of LGB short cars that provide an excellent place to mount the SL-6525911 lighting system on a car (see photo above). (Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System with SL and LGB power connectors
The SL female 3 Pin LED power connector at the rear of the car can be routed low for a prototypical appearance. (Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System shoing LGB power plugs on front of a passenger car
Note that all wiring is low on the car for a prototypical appearance. This view of the car with the SL mounted lighting controller shows the LGB power plugs at the front of the car for lighting power. (Power connectors and train with track not included)

G Scale LGB 20301 Passenger Train Ultimate Starter Set with SL-6525911 Lighting System power plugs connected into loco jacks
This photo shows the SL lighting controller receiving power from the rear of a loco. Power can also come from the track using the SL power pickup with an LGB or PIKO metal wheel or ball bearing power pickup wheel. (Power connectors and train with track not included)


Don't leave you passengers in the dark! Keep the lighting on and turn on the outside lighting automatically with the SL Train Lighting System that can power up to 300 LEDs and 5 min tues per 8 LEDs without any track power!
