SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

SL-6102104 Mini Gold Cap Buffer Price: $69.95 NEW List Price: $99.95
SL-6102104 Mini Gold Cap Buffer Price: $69.95 NEW List Price: $99.95

The SL-6102104 Mini Gold Cap Buffer is perfect with all Shourt Line LED lighting products.

Power one or more SL LED drop ceiling lighting fixtures with Analog and/or DCC power including:

SL 8103210 3 LED drop ceiling lighting for LGB 2 axle trolley DC $19.55
SL 8103220 3 LED drop ceiling lighting for LGB 2 axle trolley DCC $19.55
SL 8104210 4 LED drop ceiling lighting for LGB 2 axle cars DCC $29.95
SL 8104220 4 LED drop ceiling lighting for LGB 2 axle cars DCC $26.95
SL 8104230 4 LED drop ceiling lighting for LGB 2 axle cars DC&DCC SL requires an SL LED Controller $18.46
SL 9104210 Kit 4 LED drop ceiling lighting LGB 2 axle cars DC $14.98
SL 9104220 Kit 4 LED drop ceiling lighting LGB 2 axle cars DCC $14.98
SL 9104230 Kit 4 LED drop ceiling lighting for LGB 2 axle cars DC&DCC SL requires an SL LED Controller $9.98
SL 8108210 8 LED drop ceiling lighting for LGB 4 axle cars DC $69.95
SL 8108220 8 LED drop ceiling lighting for LGB 4 axle cars DCC $59.95
SL 8108230 8 LED drop ceiling lighting for LGB 4 axle cars DC&DCC SL requires an SL LED Controller $39.95
SL 9108210 Kit 8 LED drop ceiling lighting LGB 4 axle cars DC $31.95
SL 9108220 Kit 8 LED drop ceiling lighting LGB 4 axle cars DCC $31.95
SL 9108230 Kit 8 LED drop ceiling lighting for LGB 4 axle cars DC&DCC SL requires an SL LED Controller $19.95
SL 8144210 12 LED 3 Drop Ceiling Lighting + 2 Ext LEDs LGB Coupola Caboose DC $119.95
SL 8144220 12 LED 3 Drop Ceiling Lighting + 2 Ext LEDs LGB Coupola Caboose DCC $109.95
SL 8144230 12 LED 3 Drop Ceiling Lighting + 2 Ext LEDs LGB Coupola Caboose DCC requiresan SL LED Controller$79.95
SL 9124220 Kit 12 LED 6 Fixture Drop Ceiling Lighting kit for 4 axle 6 compartment DCC cars $93.25
SL 9124230 Kit 12 LED 6 Drop Ceiling Lighting 4 axle 6 compartment DC&DCC requires an SL LED Controller $59.25
SL 8133230 31 LED 3 Drop Ceiling Lighting + 2 Red LEDs PIKO Long Pass DC&DCC requires SL 8453003 $169.95
SL 9133230 Kit 31 LED 3 Drop Ceiling Lighting + 2 Red LEDs PIKO Long Pass DC&DCC requires SL 8453003 $94.95

Our new low cost drop ceiling boards require an SL LED Controller and parallel LED wiring power and dim from 1 to 300 LEDs. This makes it possible to both power and dim the lighting in multiple cars, so adding and removing cars from your passenger train is as simple as pluging and unpluging your cars power connectors, no adjustments are required. The are also short cirucit protected in case of wiring mistakes.

How to choose an SL LED Controller

Use the weatherproof SL 8552403 LED controller when mounting to the bottom or exterior of a car.

SL	8552403	Weatherproof Precision Train Throttle & LED controller $39.95

SL 8552403 Weatherproof Precision Train Throttle & LED controller $39.95

Connect the output of the an SL-6102104 Mini Gold Cap Buffer to the input Gnd and + HV terminals on the SL 8452403 to powering and dimming the lighting in dozens of cars or up to 300 LEDs.

Use an SL 8452403 LED controller when mounting inside a car; floor, wall, roof (between the roof and SL drop ceiling lighitng board)


SL 8452403 Precision Train Throttle & LED controller $ 6.29
SL 8452403 Precision Train Throttle & LED controller $ 6.29

Connect the output of the SL-6102104 Mini Gold Cap Buffer to the input of SL 8452403 Precision Train Throttle & LED controller $ 6.29. Power and dim the lighting in dozens of cars or up to 300 LEDs with or without track power using theSL-6102104 Mini Gold Cap Buffer & SL 8452403 Precision Train Throttle & LED controller.

Use the SL 8453003 LED controller when mounting inside a car and when not using the SL-6102104 Mini Gold Cap Buffer or to add battery power in additon to the Mini Gold Cap Buffer.

SL	8453003	Precision Train Throttle & LED controller $8.49

SL 8453003 Precision Train Throttle & LED controller $8.49

Connect the output of the SL-6102104 Mini Gold Cap Buffer (if used) to the + and - input of SL 8453003 Precision Train Throttle & LED controller. When the Mini buffer is not used connect track power to the ~ AC, DCC, Track inputs shown above. Power and dim the lighting in dozens of cars or up to 300 LEDs with or without track power using theSL-6102104 Mini Gold Cap Buffer & SL 8452403 Precision Train Throttle & LED controller.

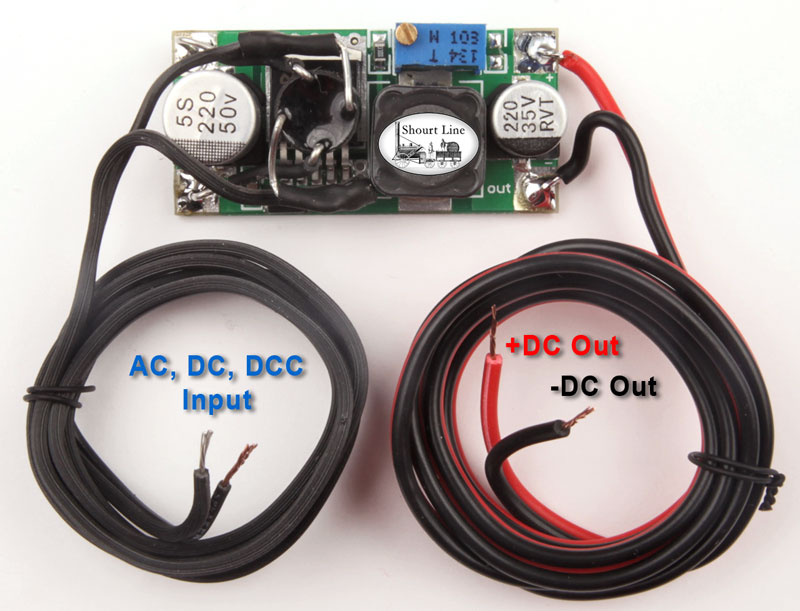

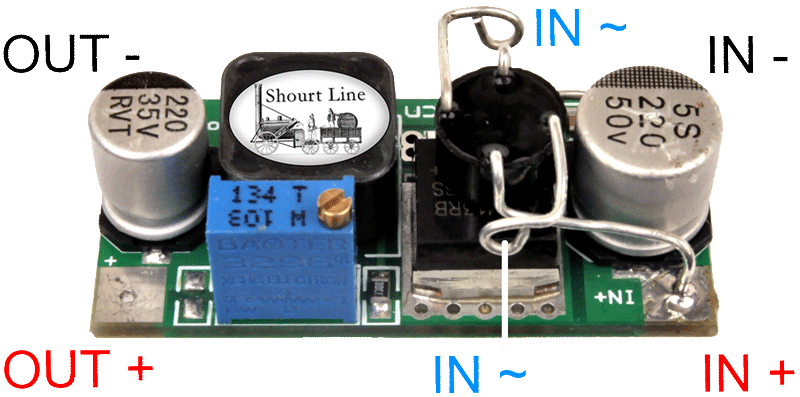

Use the SL 8453203 prewired LED controller when mounting inside a car and powering from track power. Also use when not using the SL-6102104 Mini Gold Cap Buffer or to add battery power in additon to the Mini Gold Cap Buffer.

SL-8453203

SL-8453203 Precision Train Throttle & LED controller AC-DC-DCC or Track Input with 3M mounting pad $9.95

Click here to view all the Shourt Line Precision Train Throttle & LED controllers



SL-6102104 Mini Gold Cap Buffer Photos and features

A UPS to keep your train LED lights and other functions on full power when track power is off.

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

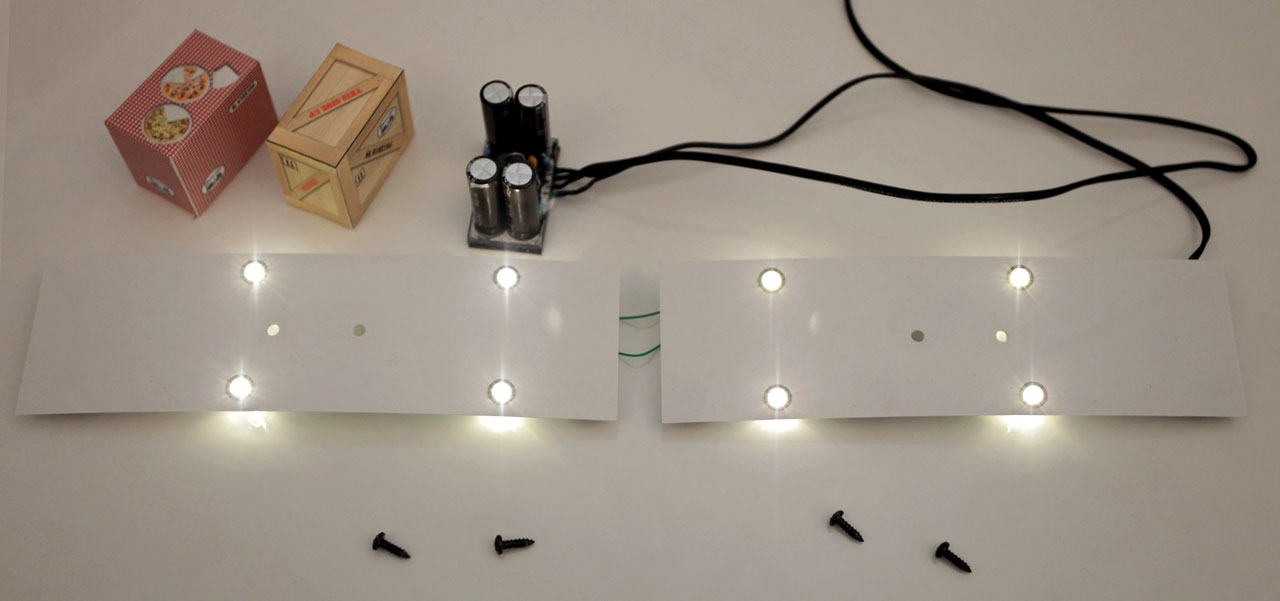

SL lighting board shown above not included with power buffer - light dozens of cars with one SL Precision Train Throttle & LED controller even without track power!

SL-6102104 Mini Gold Cap Buffer Price: $69.95 NEW List Price: $99.95

Features:

Easy install - Works with any LED SL analog lighting board.

  • Powers 16 LEDs over 4 minutes, 32 LEDs over 2 minutes, 64 leds over 1 minutes or 128 LEDs over 30 seconds!
  • Automatic charging from track power at 400ma max.
  • Includes two skins; shipping crate and pizza cart for placement in cargo area or passenger areas
  • Superior charge/discharge cycles; over 10,000 X greater than battery, over 1000 X greater than capacitor device
  • Easy hookup
  • Use with a Shourt LineSL Precision Train Throttle & LED controller for both dimming and power up to 300 LEDs without track power!

Without the SL-6102104 Mini Gold Cap Buffer, your lights dim and die when your loco slows and stops. No more lighting flicker when your train passes over the bad track or switch frogs, the buffer continues to supply power to lights and other devices even without track power!

Specifications:

  • Manufactured in the USA
  • No switches or CV programming needed
  • Stores up to 10.8 Volts at 2.5 Farads of power for over 4 minutes of lighting power
  • Maximum charge current is 400 ma ( .4 amp)
  • Maximum output current is up to 2 amps
  • Maximum track voltage 24 Volts AC or DC
  • Operates with DC (analog) or AC, DCC or MTS track power
  • Small size for interior placement in G Scale passenger isle, vestibule or cargo space
  • Size: 1.65"(42mm)L X .95"(24mm)W X 1.4"(36mm)H = 2.2 Sq. In (36 Cu Cm)
  • 2 each Pre-wired 24 AWG twin lead mini size black power cables, 24 inch long
  • 2 each color skins included to cover the power buffer circuit (assembly required)
    • Wood crate skin (for cargo or vestibule placement)
    • Pizza cart skin (for passenger placement)
  • Made in the USA by the Shourt Line

What is a Gold Cap capacitor?

Gold Cap capacitors a new type of device that are actually are a cross between a capacitor and storage battery. Like a battery they have extremely large power storage capacity but unlike rechargeable batteries have no 'memory' and feature nearly unlimited charge/discharge cycles. In addition they have very large storage capacity for their size and can discharge up to 2 amps of continuous current.

Photos:

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

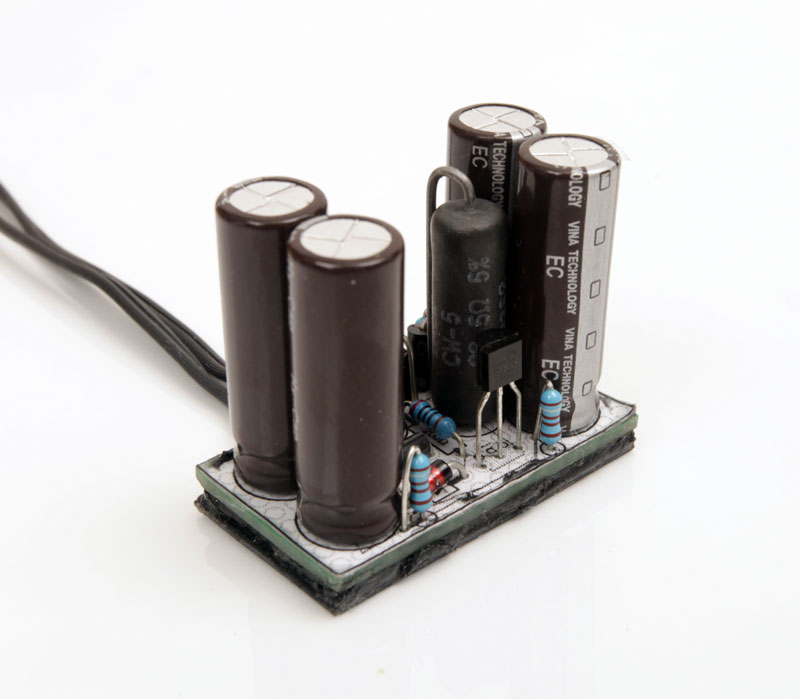

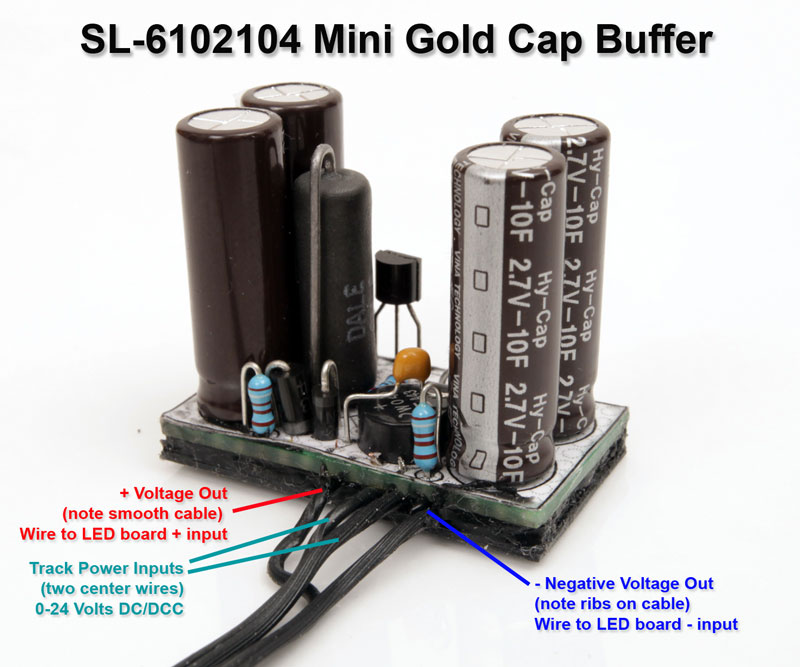

Easy Install: Connect power in cable to track power and output wires to LED lighting board(s)


Buffer to Track Power Wiring Instructions: Hook up the center two wires to a source of track power - polarity is not important - 400ma max current draw for buffer + LED current (loco power plug, wheel power pickups or ball bearing wheels with power pickup)

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Buffer to LED board Wiring Instructions: Hook up the output wires to your LED boards DC inputs being careful to observe polarity. Buffer outside cables are output power; negative power wire is ribbed, Positive power wire is smooth. (Shourt Line SL 8108214 8 LED drop ceiling lighting fixture for passenger car shown above)

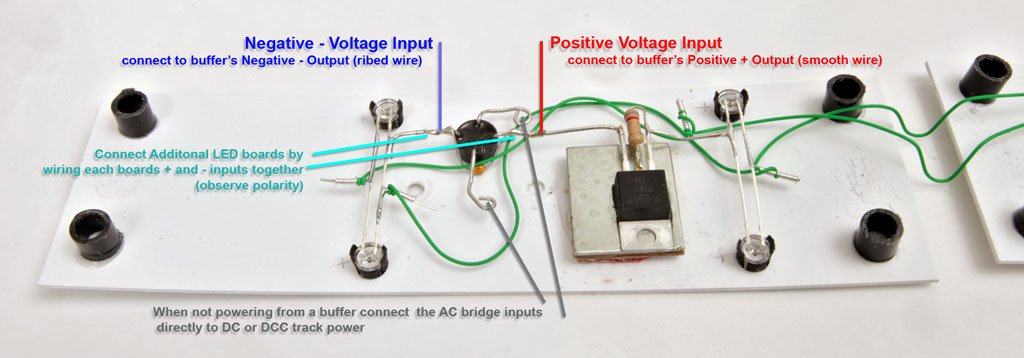

Wiring instructions for additional LED boards: Hook up additional LED boards DC inputs to the Negative and Positive input of each lighting board's AC bridge. Note that the positive side of the bridge is connected to the IC

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Shourt Line SL 8108214 8 LED drop ceiling lighting fixture shown above is powered over 2 minutes without track power from one SL-6102104 Mini Gold Cap Buffer, over 4 minutes with 2 buffers.

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

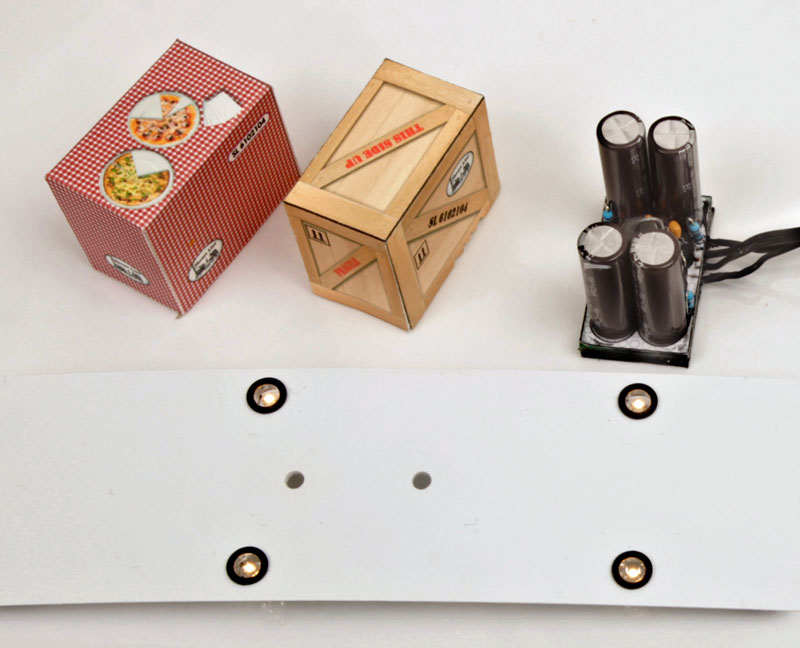

Each buffer comes with 2 cover skins (shown above and below) to cover the mini power buffer for cargo area or passenger area placement.

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

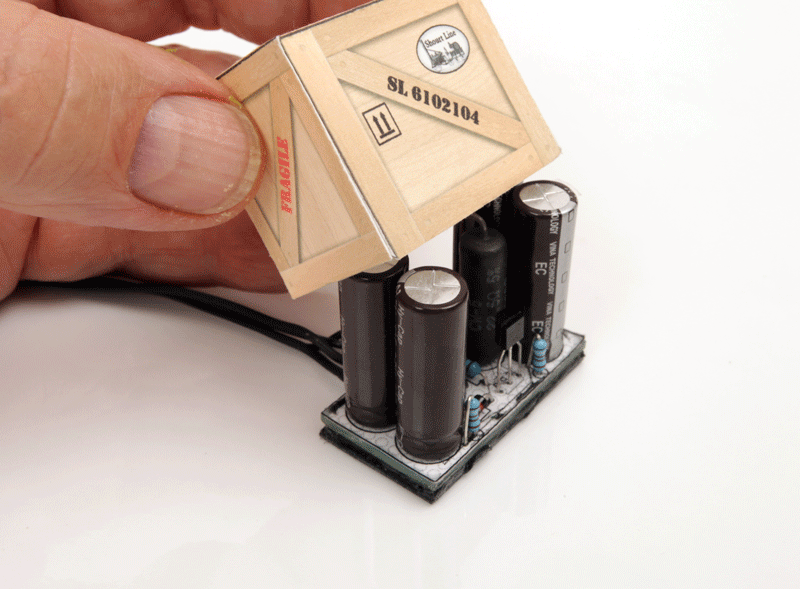

Cut out, assemble one of the two cover skins included with your buffer

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Slide the skin cover of choice over the buffer

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Power Buffer electronics circuit is now hidden in plain sight!

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Place Power Buffer into your car

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Wire input power cable to track power, and the output power to 1 to 16 cars with SL LED lighting boards

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights
Use 2 each SL-6102104 Mini Gold Cap Buffers for 2X power for over 4 minutes for 8-16 LEDs

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

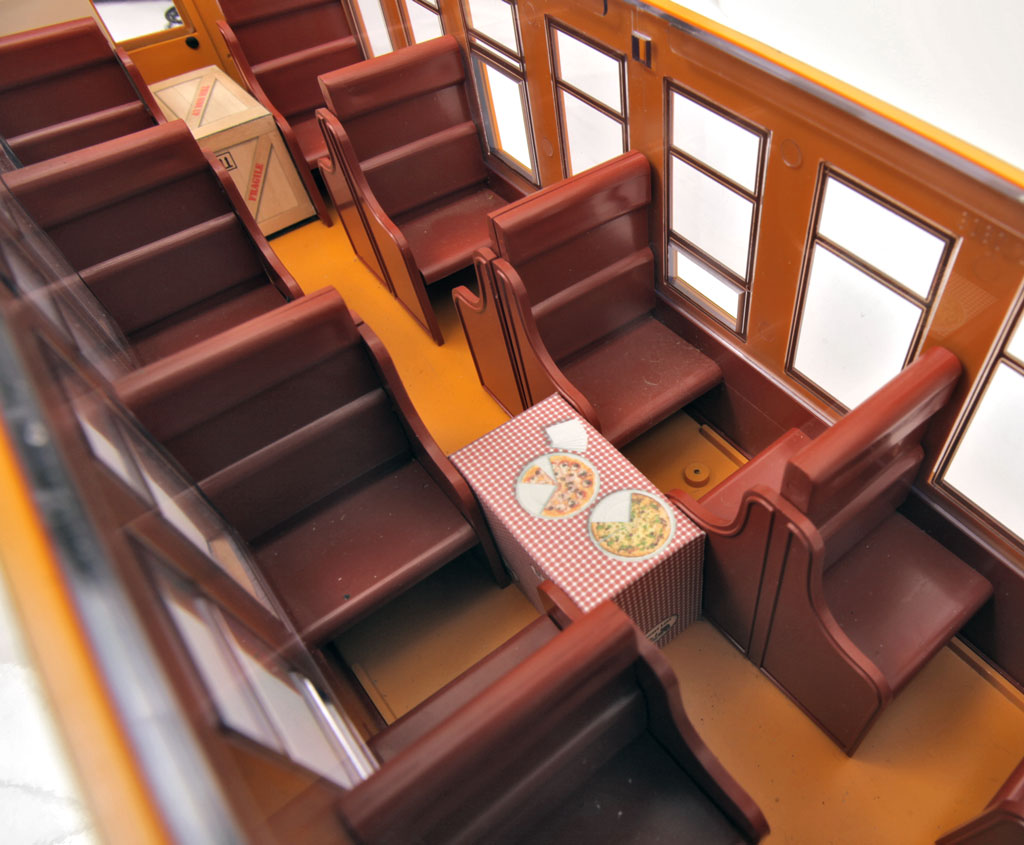

Use the included Pizza cart skin for placement inside your passenger car.

SL-6102104 Mini Gold Cap Buffer 2.5 Farad 10.7 Volt - UPS for analog train LED lights

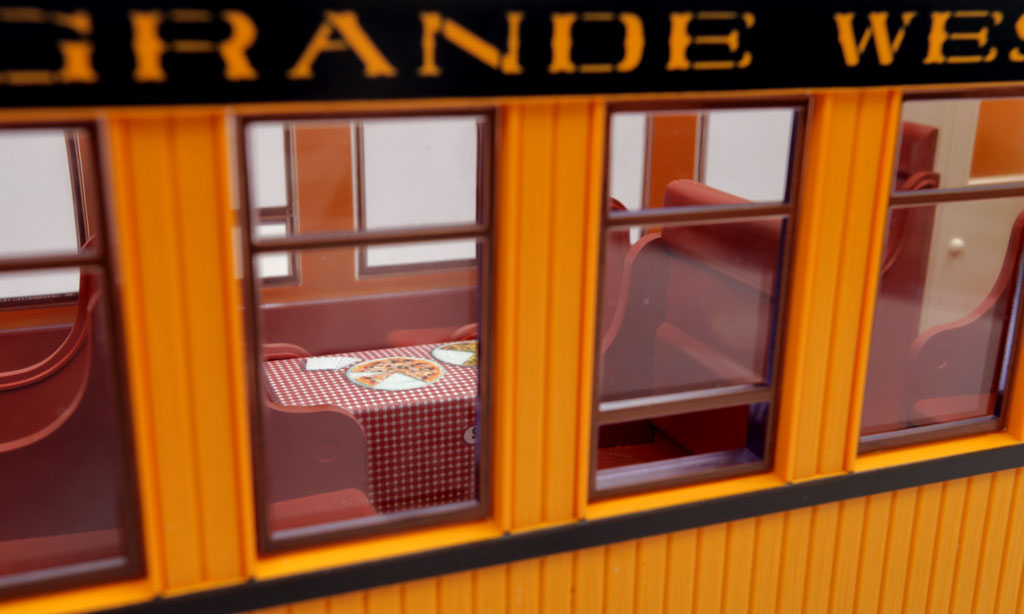

The SL-6102104 Mini Gold Cap Buffer easily hides inside your car using the cover skins included.

Made in the USA: Includes Shourt Line 5 year warranty.

Don't put your passengers in the dark, use our Gold Cap Buffer.

For indoor or outdoor use - Pat. Pend. all rights reserved
