G SCALE LGB OK PIKO Brass Switch & Track Station Set

PIKO 35300 Station Track Set

13 Piece Solid Brass G Scale Track Set

  • LGB* Compatible
  • LGB* G-Scale Narrow Gauge Design
  • LGB* Rail Profile
  • LGB* Code 323 Solid Brass Formula

Made In Germany

PIKO 35300 Station Track Set
New in PIKO factory sealed box

Shourt Line Direct Discount Price: $143.99 NEW

Click here to view our Complete Shourt Line Discount PIKO Price List

For questions or details on our professional sound and DCC conversion services
Call 3
10-622-4431 or email us at info@ShourtLine.com

Included in Set:

  • PIKO 35300 Station Track Set
    • 1 PIKO 35231 G-WLR1 Left Switch Track
    • 1 PIKO 35221 G-WRR1 Right Switch Track
    • 2 PIKO 35211 G-R1 Curve Tracks (R1 600mm)
    • 2 PIKO 35200 G320 Straight Tracks (320mm Length)
    • 7 PIKO 35201 G280 Straight Tracks (280mm Length)
    • Instructions
    • Foam storage tray and factory sealed box

PIKO 35300 Station Track Set track contents label

Specifications:

  • Recommended Age: 8 yrs. to Adult
  • Set Size: 16 X 16 X 4 in.
  • Set Weight: 7 Lb (2.3Kg)
  • Set Rating: Indoor or Outdoor
  • Track size when added to R1 Circle of track: 278 X 130 cm
  • Track scale: G Scale
  • Track Width: 45mm track
  • Track Code: 232"
  • Track Material:
    • Rail: Solid Brass (same as LGB* Brass Formula)
    • Tie: UV-stabilized and made for outdoor use
  • Switch Tracks (Points):
    • Material - Same as track above
    • Manual Operation (LGB* EPL Switch Motor compatible)
    • Optional PIKO 35271 Electric Switch Machine - waterproof electric EPL type actuator (see ShourtLine.com store for details)
    • Optional PIKO 35266 Switch Lantern - automated lighted switch lantern (see ShourtLine.com store for details)
    • Optional PIKO 35265 Relay Contacts DPDT - Auxiliary 2P2T waterproof electrical switch contacts for automaton (see ShourtLine.com store for details)

Features:

This Solid Brass Set turns any circle of track into an oval of track and a station siding with two working switch tracks making a a G Scale Layout.

  • Made in GERMANY
  • 2 year guarantee by PIKO America
  • Weather resistant for Indoor and Outdoor operation
  • Easy Setup
  • Works with any G scale track
  • Installs in seconds
  • LGB Compatible and interchangeable

The Secret is the System: PIKO G-TRACK

The 600 mm Module – The Starting Point
The basis for the design of the PIKO G-Track is a 600 x 160 mm (23.62” x 6.33”) unit. These measurements were not chosen at random. They are the result of extensive computer-aided engineering to satisfy the requirements of beginners and advanced hobbyists alike.

With this module, almost all track designs can be constructed very simply with no need for small adapter pieces: elegant turnouts on the straight or on curves, various crossovers from one parallel track to another and the possibility of incorporating existing accessories such as platforms, etc.

This simple system makes complicated design charts superfluous. The layouts can be drawn on ordinary graph paper to work out the track elements required.

The Track Design. The outstanding feature of the PIKO G-Track design is that it requires only a small number of elements and the modeler needs no extra adapter pieces at switches or crossings (which can often lead to uneven running and poor electrical contact).

For straight track the module length of 600 mm (23.62”) is made up using two different lengths, 320 mm (12.66”) and 280 mm (10.96”). This is what makes it possible to have parallel tracks with two turnouts without any need for extra pieces.

The Track PIKO G-Track rails are made from a high quality, pure brass alloy. The ample “Code 332” rail cross-section allows for minimal voltage loss, even over long distances. The brass rail joiners connect the rails securely and ensure good electrical conductivity at the joints in the rails.

The ties are made of ultra-violet stabilized HDPE plastic, which is characterized in particular by its high impact resistance, noise reduction properties and resistance to cracking under stress. The shape, color and texture model the appearance of real wood railroad ties.

Track Identification In addition to the item number, the PIKO G-Track uses a track identification such as G-G320. This is used to identify the parts in the various track diagrams. In addition to this identification, each track section is represented in PIKO track diagrams by its own color which is also used in brochures, catalogs and on the boxes. This makes it easy to tell which piece of track is required.

Geometry

PIKO_Track_Geometry

Straight Track The PIKO G-Track system normally requires only two straight track sections, the G-G320 and G-G280. When these two tracks are put together they form the 600 mm module length. The other straight track sections, such as G-G160 and G-G140, can be used anywhere but are only necessary when creating more complex track layouts. The G-G95 straight track is only required as a parallel track when using 60° crossings.

Flexible track For construction of smooth flowing curves with any desired radius, the PIKO G-track system also includes flexible track, made up of individual rails and tie strips. Using the G-SB280 and G-SB320 tie strips together with the G-P1500 or G-P3000 rail sections, you can build your own flex track.

A rail bending tool is important for making accurate bends in the rails, but long straight tracks can be built easily without any tools.

The Basic Radius The PIKO G-Track offers 3 basic radii with a parallel spacing of 321.54 mm (12.66’‘) (nominally 320 mm).

G-R1 curved track 30°, r = 600 mm (23.62”)
G-R3 curved track 30°, r = 921.54 mm (36.28”)
G-R5 curved track 15°, r = 1,243.08 mm (48.94”)

To form a complete circle (360°), 12 curved tracks are required for radius G-R1 and G-R3. 24 pieces are required for radius G-R5. The 320 mm (12.66”) distance between tracks ensures that even on radius G-R1 and G-R3 long rolling stock can pass without touching.

Curved Track for Switches To get from a switch to a parallel track (such as on a passing siding track) while maintaining the distance of 160 mm (6.34”) all that is needed is the G-R1 curved track.

Switches All PIKO G-Track switches can be installed as manual or electric switches. An electric switch machine (in preparation) can be screwed onto any switch to convert it to electrical operation.

Details The finely reproduced spike and bolt details which fix the rails to the ties in the original are designed so that all standard wheel sets can run smoothly over all elements of the PIKO G-Track.

Joining Track Sections The sturdy brass rail joiners ensure that PIKO G-Track can be laid on almost any
surface, even on household carpet or across a lawn.

Connection The simplest power connection for the PIKO G-Track is the Power Clamp (Item 35270 available at the ShourtLine.com store). This can be screwed onto any track.

PIKO Track Examples

Frequently Asked Questions about PIKO-G-Track

1. Does PIKO G-Track rail have the same height and strength as LGB*?
The PIKO G-Track rail matches the LGB* rail profile exactly.  The brass alloy is the same as LGB*.  PIKO G-Track is fully compatible with LGB* and Aristo-Craft** brass rail track.

2. Are the measurements of the ties similar to LGB*?
The PIKO G-Track ties are comparable to LGB* ties.  The wood-grain detailing of the ties is more realistic than that of LGB* ties.

3. Is the track weatherproof?
PIKO G-Track is fully UV-stabilized and made for outdoor use.

4. Are the tie colors of PIKO G-Track and LGB* the same?
The brown of PIKO G-Track ties is a subtle shade more intense than LGB* ties.  The color is RAL 8017.  As with the prototype, ties can be different colors.

5. Do I need curved switches?
Two new curved switch tracks available from PIKO. However, through the sophisticated geometry of PIKO G-Track, one can easily make layouts with transitions to all curve radii, using the standard switches. (see diagram above).

6. Is PIKO G-Track modeled after narrow gauge or standard gauge track?
PIKO G-Track is patterned after 1,000mm narrow gauge track, same as with LGB*.

*LGB is a trademark of Gebr. Märklin & Cie. GmbH, Germany
**Aristo-Craft is a trademark of Aristo-Craft Trains, Irvington NJ  USA

How to hookup PIKO G Scale Track to your Power Clamps:

Easy to set-up in seconds to connect a DC (analog), MTS/DCC controller or booster to PIKO G Scale Track. LGB color coded cables of the PIKO Power Clamps allow easy connection with LGB, Massoth or PIKO products.

1) Connect the PIKO Power Clamps wires to the track output terminals of your DC or DCC/MTS controller and the power input terminals of the controller to your power supply.

PIKO 5 Amp Central Station Rear connectors

2) Connect track clamps to your track, one on each rail

PIKO Power Clamps connected to PIKO Track with PIKO Digital System

PIKO 5 Amp Central Station Rear connectors
(track, power supply, controller and loco available separately)

3) Optionally plug your choice of PIKO DiMAX Navigator or Massoth Navigator into your PIKO or other central station or Shourt Line or PIKO G scale controller DC throttle.

PIKO SL-PIKO-DC-5-PS-Kit DC Wireless Starter Set 5 Amps

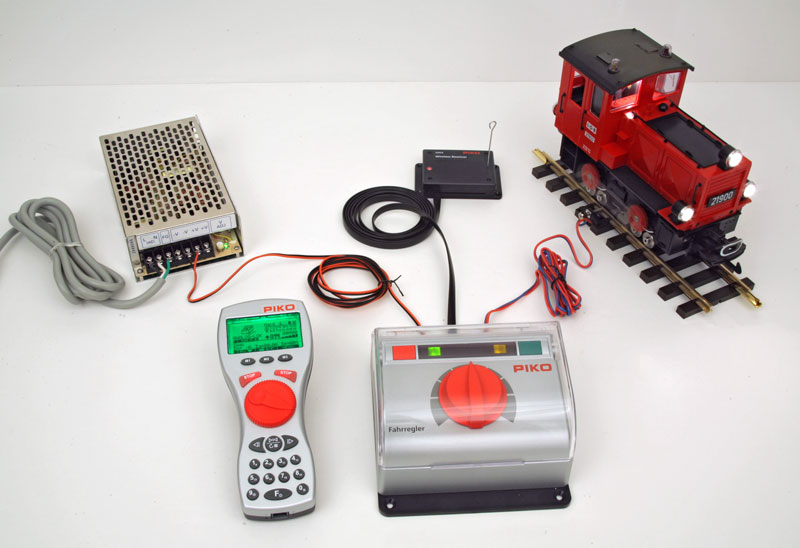

OPTIONAL Complete wireless DC (analog) control kit: SL-PIKO-DC-5-PS-Kit (see store for price) includes the following items; PIKO 35002 DC Analog G Throttle/Controller 5 Amps (see store for price),  PIKO Wireless Receiver (Transceiver)(see store for price), PIKO Navigator bi-directional wireless throttle (see store for price), SL-PS150-1-24 G Scale Regulated Power Supply (see store for price) and DC and AC power cables (PIKO quick connect track clips are also available). See our store for details

4) Connect AC power and run your trains

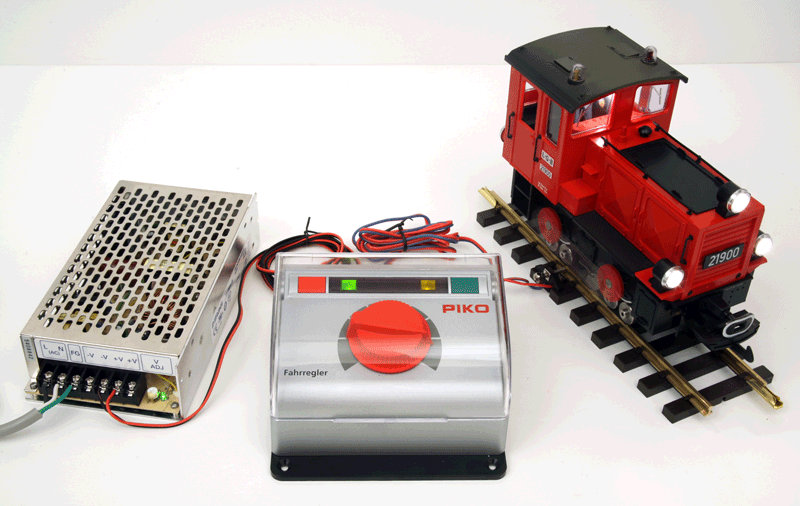

35002 DC Analog G Controller


Track Set Photos:

PIKO 35300 Station Track Set

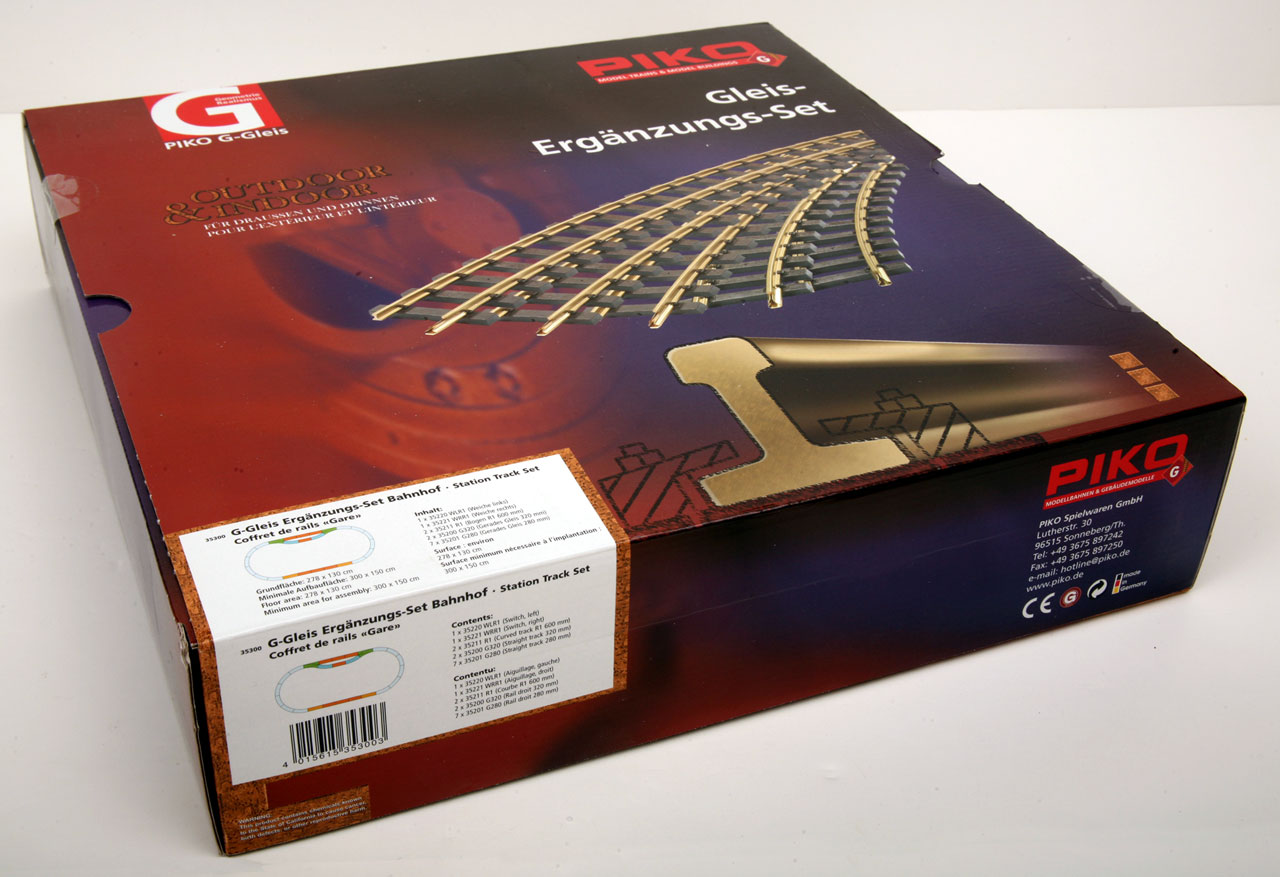

PIKO 35300 Station Track Set box


Complete with 13 Piece Solid Brass Track Set:
Turn any starter set circle of track into an oval with a station siding.

PIKO 35300 Station Track Set
Easy to follow instructions or use your imagination to create other layout designs.

PIKO 35300 Station Track Set

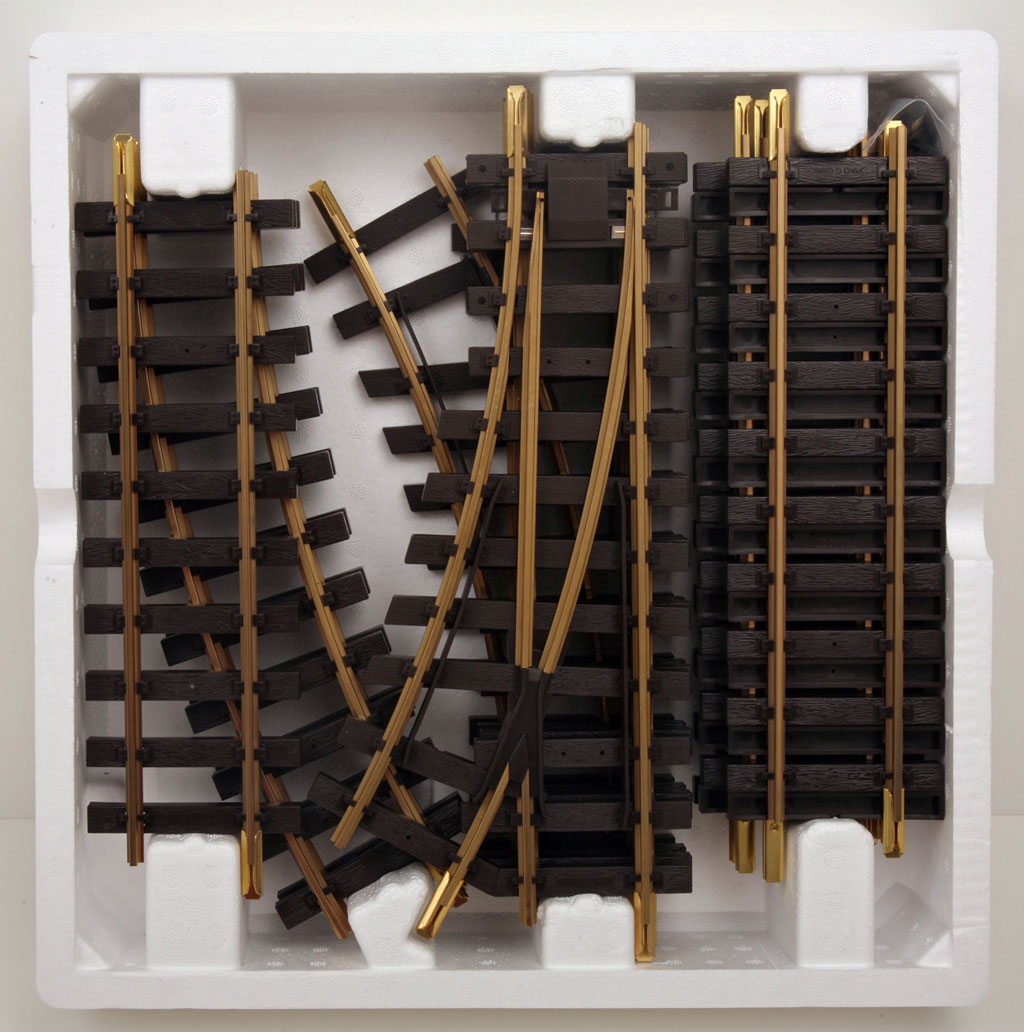

Set includes a foam carrier to hold all items.

PIKO 35300 Station Track Set
