PIKO 37622 LGB G SCALE DB IV Silver Coin Coach 2st Class, City-Bahn Coach

New 8 Wheel Passenger Coach

From a PIKO Factory Authorized Dealer

Track Powered LED Lighting Ready (optional): Easy Metal Wheel (optional) and LED lighting Kit (optional) installation

Available as Part No.: P 37622 (2st class coach) & P 37623 (1st and 2nd class coach)

Made in Germany

PIKO 37622 LGB G SCALE DB IV Silver Coin Coach 1 Class, CityBahn Coach
(PIKO 37623 LGB G SCALE DB IV Silver Coin Coach 1 & 2 Class, CityBahn Coach with optional metal wheels and PIKO LED Kit shown above)

Shourt Line direct discount price: $ 183.99 New

For questions on this item or details on our professional layout design and installation services Call 310-622-4431 or email us at info@ShourtLine.com

Description:

Catalog Item No: 37622 PIKO G SCALE 2nd Class Passenger Coach

actory sealed box

This a brand new G Scale PIKO coach. This robust and weather-resistant model was manufactured in Germany with UV and weather resistant materials for indoor and outdoor use. The model is extremely well detailed. .

The original .

Features:

Highlights:

  • Detailed Interior
  • Directional lighting
  • Can be easily fitted with LED lighting (Order PIKO P 36132 Interior LED Lighting kit)
  • Metal Wheels available for track powering LED lighting (Order PIKO 36163 Metal Wheels 1.3 each/coach)
  • Loop and hook coupler are fully compatible with LGB system
  • Detailed Instruction Manual & Exploded Parts Diagram

Specifications:

Mfg: Made in Germany

  • R1 Radius (600mm ~ 2 foot radius) curved or larger radius track OK
  • Scale: G - 22.5:1 (LGB scale)
  • Length (over buffers): 817mm (32.16 inches)
  • Nominal PIKO LED Voltage: 5 - 24 DC (DCC, AC or DC with installation of PIKO Metal wheels and LED lighting kit)

Options: (see our store for details at link below)

  • PIKO P PIKO 36163 Metal Wheels (easy install in minutes for track powered lighting)
  • PIKO LED llighting PC board, and wiring kit:
    • PIKO P 36132 Interior LED Lighting kit ( power from DCC, DC analog, and LGB MTS track PIKO Metal Wheels required)
  • Shourt Line custom lighting kit available for interior lighting and running light
    • SL 8453003 Precision Train Throttle & LED controller Click here to view deatals
    • Choose between two SL products: both have the 3 Drop Ceiling Lighting Fixture, 35 LEDs and setup parts or the Kit with all parts for making own
      • SL 8137230 35 LED 3 Drop Ceiling Lighting + 2 Red LEDs PIKO Long Pass DC&DCC requires
      • SL 8453003 SL 9137230 Kit 35 LED 3 Drop Ceiling Lighting + 2 Red LEDs PIKO Long Pass DC&DCC requires SL 8453003s

Photos:

PIKO 37622 LGB G SCALE DB IV Silver Coin Coach 1 Class, CityBahn Coach
(PIKO 37623 LGB G SCALE DB IV Silver Coin Coach 1 & 2 Class, CityBahn Coach with optional metal wheels and PIKO LED Kit shown above)

PIKO 37622 LGB G SCALE DB IV Silver Coin Coach 1 Class, CityBahn Coach close up
(PIKO 37623 LGB G SCALE DB IV Silver Coin Coach 1 & 2 Class, CityBahn Coach with optional metal wheels and PIKO LED Kit shown above)
Detailed graphics and interior (LED lighting and metal wheel options shown above).

Contact us for installation of the PIKO Metal Wheels and PIKO LED Lighting kit or the Shourt Line LED and running lights.

Do it yourself installation instructions for PIKO Metal Wheels and PIKO LED Lighting Kit.

  1. Use 1 each PIKO LED Lighting Kit PIKO 36132 (1 each per coach) Not included with coach

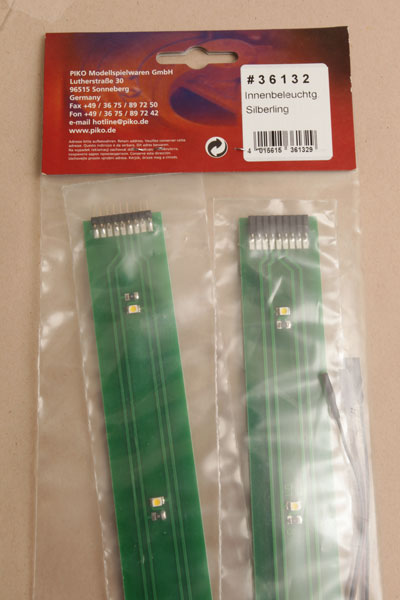

    PIKO LED Lighting Kit PIKO 36132 back view

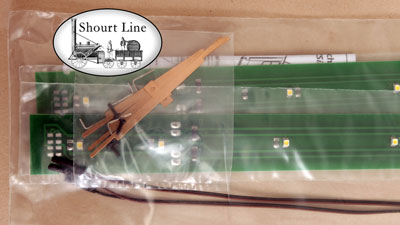

    PIKO LED Lighting Kit PIKO 36132 front view close up

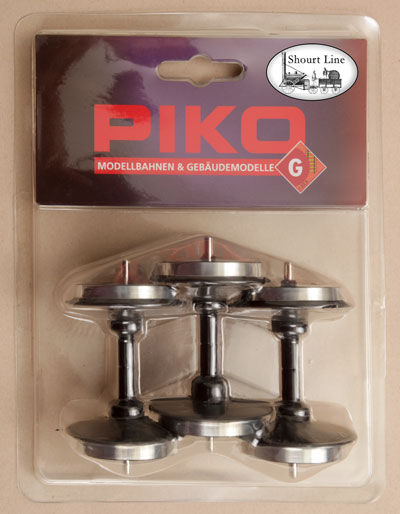

  2. Use 1 and 1/3 each PIKO Metal wheel sets P 36163 (4 axles needed per coach) Not included with coach

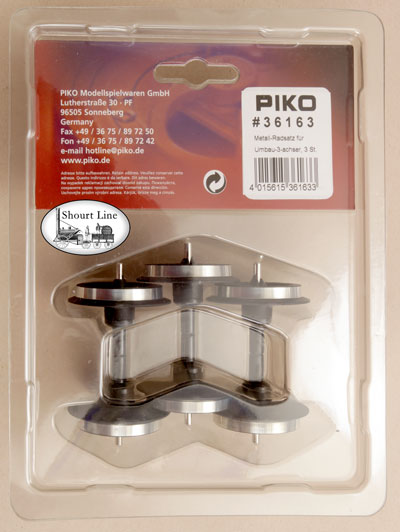

    PIKO Metal wheel sets P 36163  back viewPIKO Metal wheel sets P 36163 back view

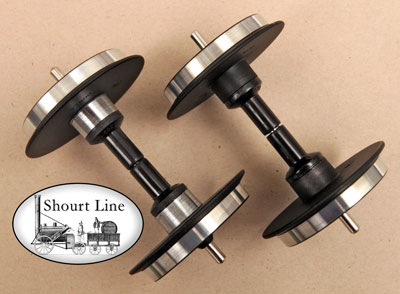

  3. Sand the inside flange on each wheel as shown on the left axle shown below
    PIKO Metal wheel sets P 36163 after sanding for LED tack power

    This allows current to flow from each rail to the LED circuit
  4. Open the LED lighting kit and read directions before continuing assembly.

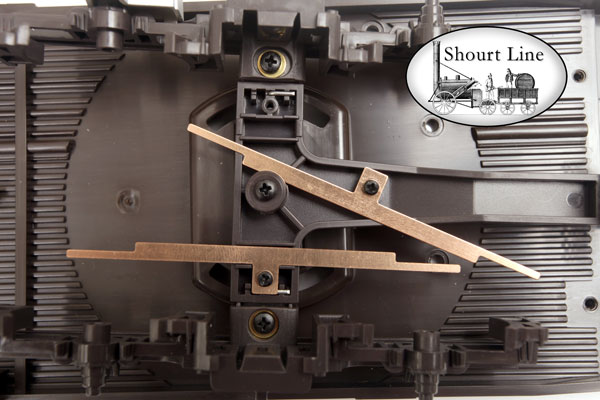

  5. Remove the plastic wheels that come with the coach and insert the L shaped power pins into each side of the truck and secure with brass power pickup bars and screws.
    PIKO Silver Coin Coarch & PIKO Metal wheel sets P 36163  & PIKO LED Lighting Kit PIKO 36132 installation

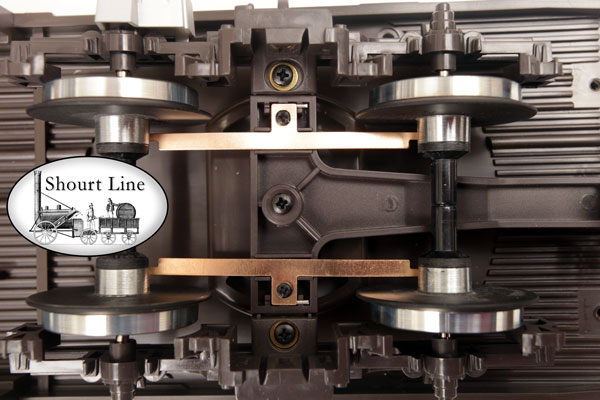

  6. Insert PIKO metal wheels (part P 36163) noting the power pickup bars touch the sanded bare metal of each wheel.
    PIKO Silver Coin Coarch & PIKO Metal wheel sets P 36163  & PIKO LED Lighting Kit PIKO 36132 installation

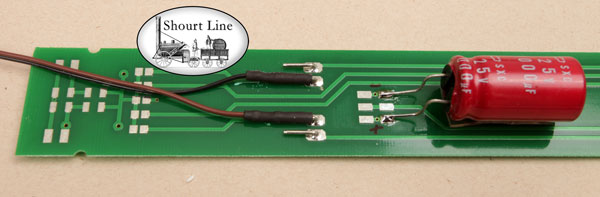

  7. Optionally install a 1000uF to 3,300uF 35 volt electrolytic capacitor on the PIKO LED circuit board as shown below for anti-flicker with dirty rails and frogs on switch points (tracks). Included with Shourt Line installation.
    PIKO Silver Coin Coarch & PIKO Metal wheel sets P 36163  & PIKO LED Lighting Kit PIKO 36132 installation
  8. Insert the supplied wire with connectors at each end of the circuit board as shown above and note that the brown wires must be on the same side of the circuit board at each end of the board.
  9. Follow instructions to remove screws from bottom of the coach and remove the floor and the two interior seating sections to expose the inside roof of the coach.

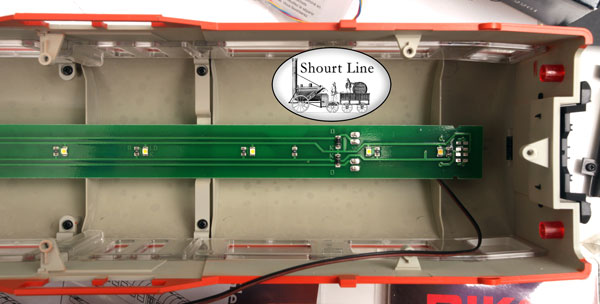

  10. Place the PIKO LED strip inside the roof of the car as shown below
    PIKO Silver Coin Coarch & PIKO Metal wheel sets P 36163  & PIKO LED Lighting Kit PIKO 36132 installation

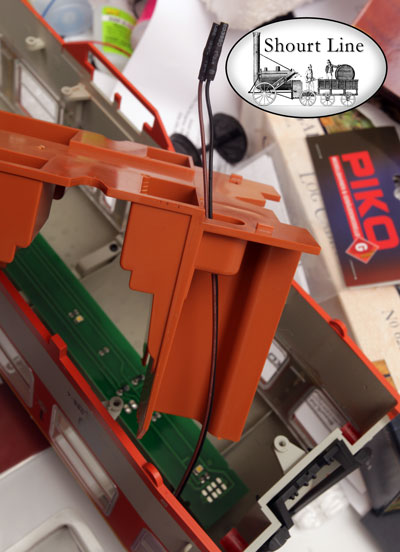

  11. Route the wires through the hole in to bottom of each interior seat section as shown below.
    PIKO Silver Coin Coarch & PIKO Metal wheel sets P 36163  & PIKO LED Lighting Kit PIKO 36132 installation

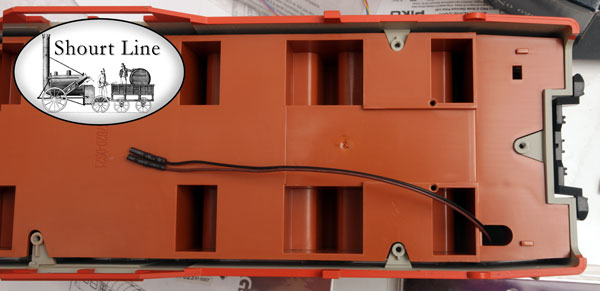

  12. Place each section back into the coach noting that the LED circuit board is held in place by the seating section and that the power leads come out of the hole in the plastic and that they reach nearly the lettering on embossed on the bottom of the section as shown below.

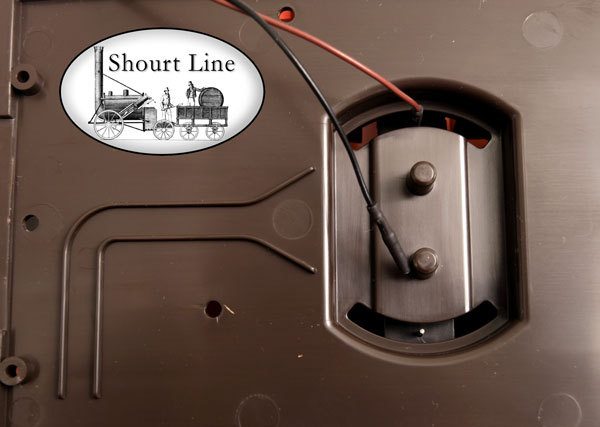

  13. Connect the wires to the pins assembled in step 4 above being sure to place the brown wires on the same side of the coach as shown below
    PIKO Silver Coin Coarch & PIKO Metal wheel sets P 36163  & PIKO LED Lighting Kit PIKO 36132 installation
  14. Route the wires into the embossed channel shown above and secure with small pieces of tape
  15. Replace the bottom of the coach and note that it sets properly on the coach shell and interior sections. Replace the screws and test the coach on your track for lighting when power is applied to the rails.
  16. Enjoy your LED tack powered coach!

PIKO 37622 LGB G SCALE DB IV Silver Coin Coach 1 Class, CityBahn Coach
(PIKO 37623 LGB G SCALE DB IV Silver Coin Coach 1 & 2 Class, CityBahn Coach with optional metal wheels and PIKO LED Kit shown above)

Don't miss the train.

Questions? Call 310-622-4431 on this or any of the over 6000 G Scale Items stocked at the Shourt LIne.

Thanks for looking - Shourt Line by Soft Works Ltd.
