PIKO 36190 Sound Kit with SUSI bus for Taurus
Prototypical Digital Sounds; Motor, Brakes, start-up and standing sound generation.
A Motor Decoder's SUSI bus is required to power and control the sound board (The PIKO 36120 decoder is recomended for use with Taurus Locomotive)
Smart Start; Stops Loco movement until after motor starting sounds and loco sounds are ready to starting movement.
Multi-Protocol DCC, MTS and Motorola Data Format, Analog AC or DC Power via a Motor Decoder's SUSI bus
Pre wired for plug and play via a decoder SUSI port
Part No.: P 36190
Made in Germany
Shourt Line Discount Price: $135.99 New
For questions on this item or details on our professional decoder installation services
Call 310-622-4431 or email us at info@ShourtLine.com
Description:
Intelligent sound control coordinated to the operation situation (i.e., speed, starting stopping etc. of the loco) Automatically generates operating (motor) sound of the locomotive, "squealing' breaks, standing sounds such as air pumps etc.
Sound changes as engine load changes for prototypical operation under such as up/down grade operation; reaction to load change can be adjusted.
The "Smart-Start" functions when starting the loco, the sound module stops the decoder from operating until actual starting of the vehicle synchronizes with the e sound of the motor. The loco does not move unit the very starting sound begins ensuring perfect synchronization.
Adjustable volume and audio muting: the sound can be faded or turned off by function key, e.g. when the train travels into and away from a shadow station or tunnel.
Up to three modules can be connect to a loco motive decoder.
Features:
- Made in Germany
- Preloaded sounds for prototypical operation of a Tarurs Locomotive when connected to a motor decoder with a SUSI port
- Visaton 8 Ohm Speaker with a rare earth magnet for high power output
- Speaker fits perfectly into Taurus mounting studs with supplied hardware
- Downloadable sounds at www.uhlenbrock.de
- 3 ranges of CV address range can be set by user
- Function keys are assignable by user via CV settings
- All sounds are volume and remote controllable via Function Keys
- 3 Sound synthesizers for overlayrd sound playback
- Kit includes all mounting hardware
- Easy install in minutes - no soldering required
- Plug and Play out of the box operation
- 2 Year PIKO America warrantee
- Detailed Instruction Manual
Specifications:
Mfg: Made in Germany
- Large Scale Sound Decoder
- 8 ohm Visaton Speaker
- Sound board dimensions: 15mm L X 25mm W X 5mm H
- Sounds downloadable by user from www.uhlenbrock.de
Options: (see our store for details at link below)
- PIKO Digital Sound Module P 36190 (SUSI bus easy install in minutes for remote & automatic sounds)
- Massoth and Shourt Line custom lighting kits available
Photos:

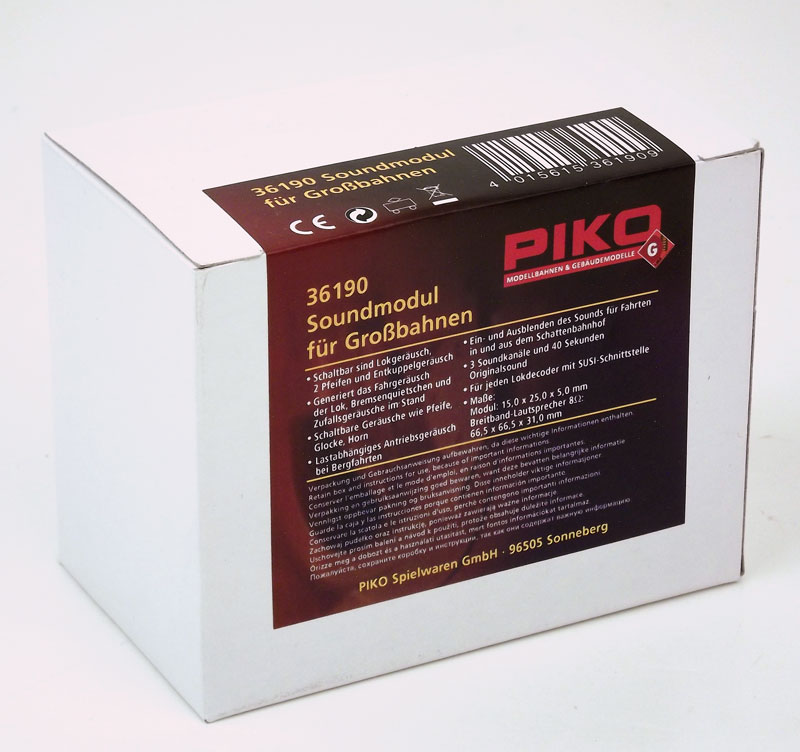

Comes in a factor sealed box with a 2 year warrantee

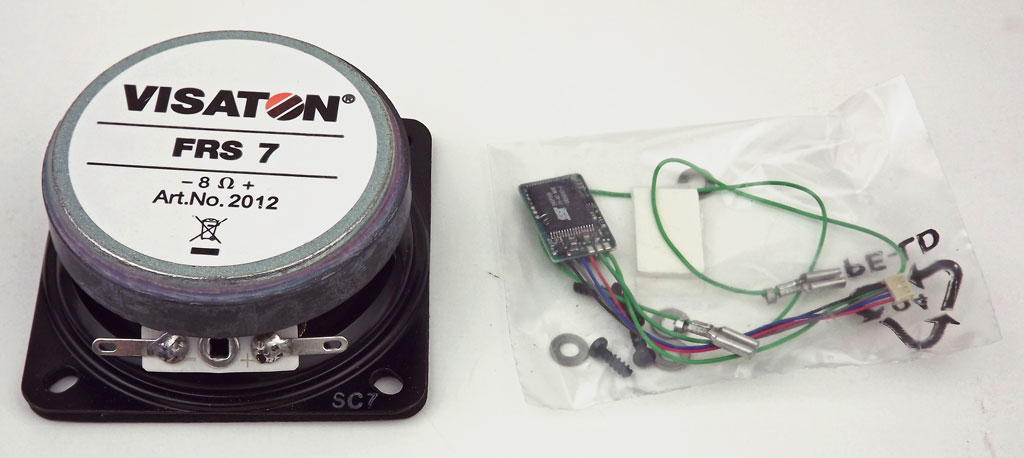

Sound Decoder comes with a powerful Visaton 8 ohm speaker and a pre wired harness with slip on connectors for speaker connection and SUSI cable and connector for Motor Decoder SUSI port and all required mounting hardware.
The sound decoder is micro size yet powerful, with a SUSI cable and plug and speaker cable with slip on speaker connectors quick and easy solder less connections.
The Decoders SUSI bus port allows a plug and play connection to sound decoder board (shown above), pulse smoker, RC servo and other SUSI bus devices. (Loco decoder not included with the sound kit) The SUSI bus delivers power and bi-directional communication for up to 3 external devices. Check here for the NMRA approved SUSI bus Specification.

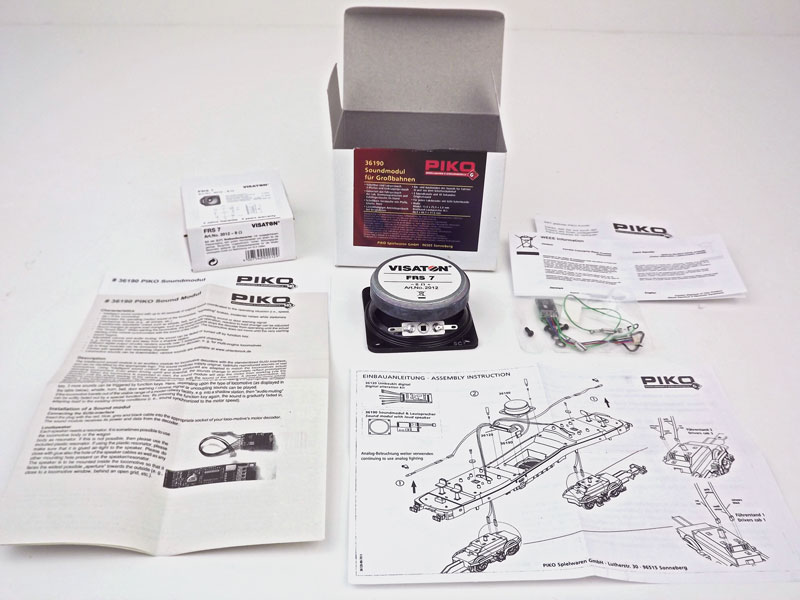

Decoder includes detailed instructions and assembly diagrams.
Easy Decoder and Digital Sound System Installation in minutes.
Only a small philips head screw driver is required for installation:

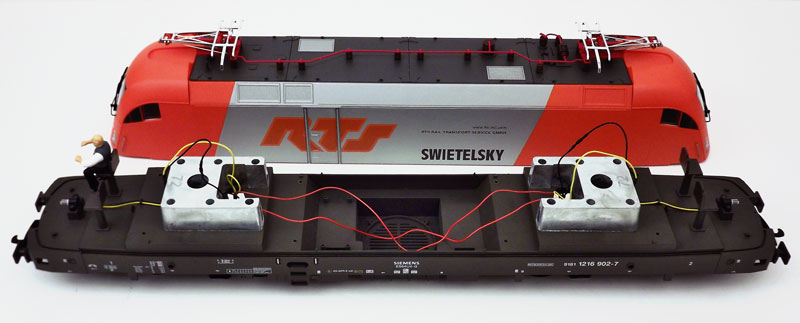

- Remove the screws on the bottom of the loco and lift off the top of the loco:

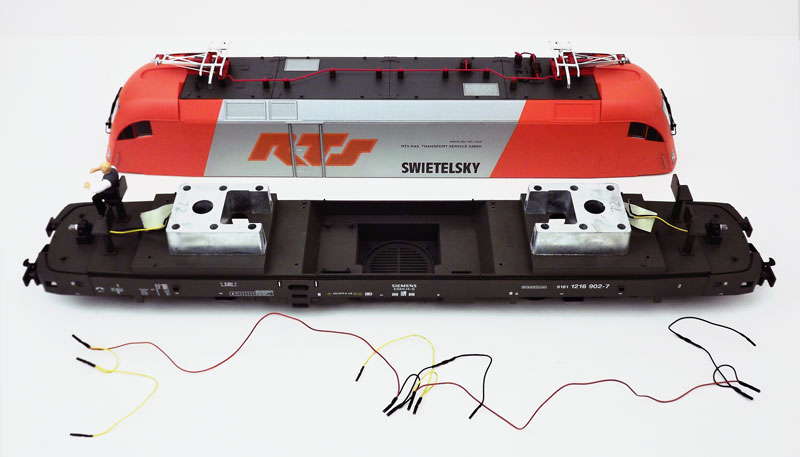

- Remove the factory installed analog wiring harness:
- Plug the sound boards SUSI bus cable into the decoder (required for sound board to work) and connect the speaker to the sound boards speaker connectors:
- Install the decoder and speaker on the mounting posts provided on the base of the loco and mount the sound board as shown below:

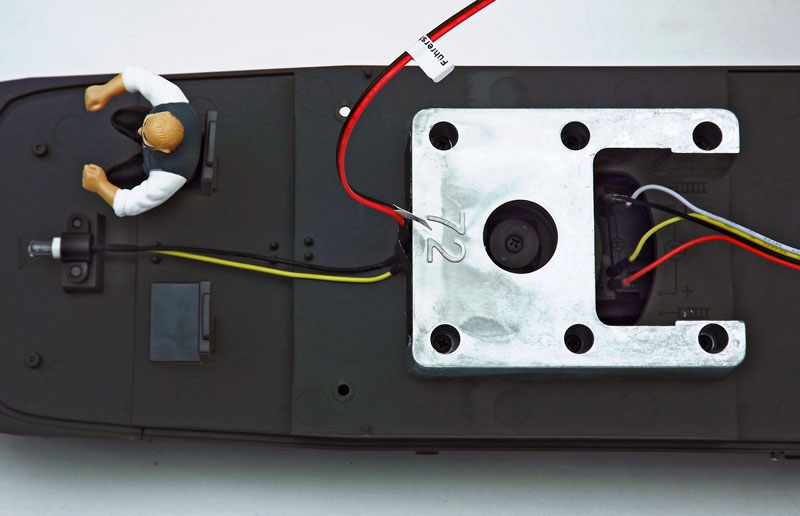

- Plug the connectors to the front motor block and front light being sure to route the bulb wires between the guides at the center of the loco base:
- Plug the connectors to the rear motor block and rear light being sure to route the bulb wires between the guides at the center of the loco base:
- Replace the top of the loco and the 10 screws removed previously:
- Run you loco!
PIKO Locos are DCC ready with built in mounting studs for the PIKO 3 Amp decoder, sound board and Visaton speaker.

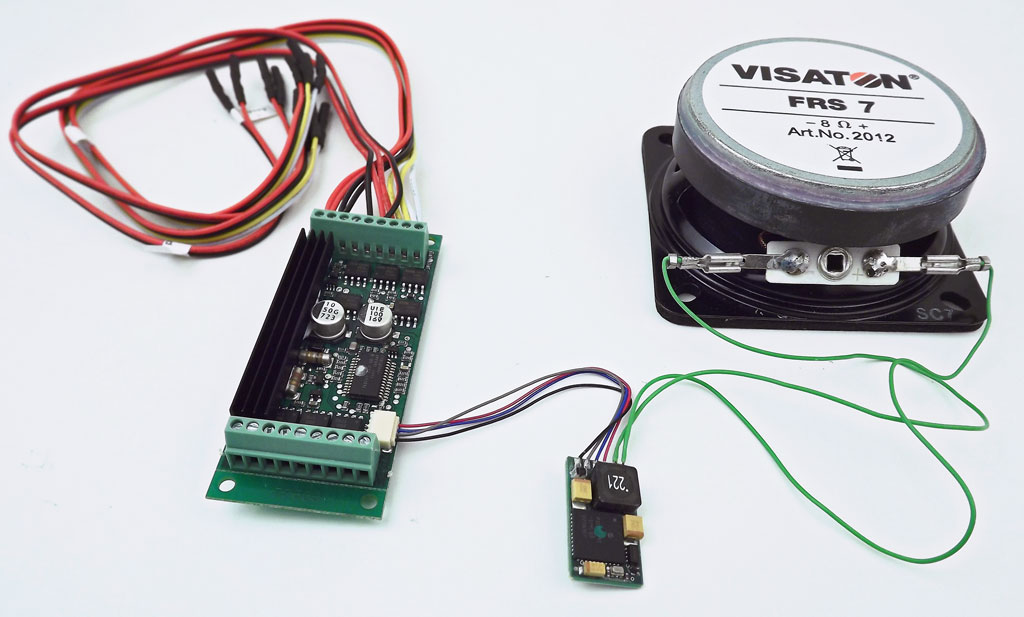

Easy connection to a loco decoder via the SUSI bus cable and to the included speaker via slip on connectors. No soldering required for install. (motor decoder shown on left is required but is not included with the sound decoder kit)
A Motor Decoder's SUSI bus is required to power and control the sound board (The PIKO 36120 decoder is recomended for use with Taurus Locomotive)
