PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup

Standard size wheels for PIKO, LGB, Hartland Locomotive Works and other G Scales

Hard-Chrome Plated Tread, Flange and Inside Flange w LGB type pins & PIKO screws for power pickup from both rails.

PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup
Chrome Plated and ball bearings for low friction, low drag, low maintenance and best appearance of any power pickup wheel set available

PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup  package front
Fits LGB, PIKO and all other G Scale cars

Shourt Line Direct Discount Price: $33.59 NEW

Factory sealed from ShourtLine.com, an authorized PIKO Dealer, PLUS a free G-Scale surprise with every order and every item is on sale every day!

For questions or details on this or any of our over 400 PIKO, in stock, new factory sealed items Call 310-622-4431

Description:

Hard-plated metal ball bearing wheels with power pickup connectors for LGB pin or PIKO screw eyelet connectors. 100% compatible with the PIKO, LGB, Hartland and other G scale cars

Features:

  • For Indoor or Outdoor operation
  • Hard-Chrome plated tread, flange, inside flange face
  • Two power pins & screw terminals on each axle, one for electrically connecting to each power rail
  • Weighted wheels for superior low center of gravity
  • Low drag for Ball Bearing performance
  • High reliability
  • Low maintenance (unlike carbon brush track power pickups)
  • Easy Install in seconds
  • Made by PIKO GERMANY
  • 2 year guarantee by PIKO America

Specifications:

  • 30mm Diameter Standard G Scale Size
  • Standard Flange Depth

Optional Equipment: PIKO does not supply electrical connectors with the wheelset and must be purchased separately. The Shourt Line has connector kits and full cabled power sets for use with LGB or PIKO power pickup wheels.

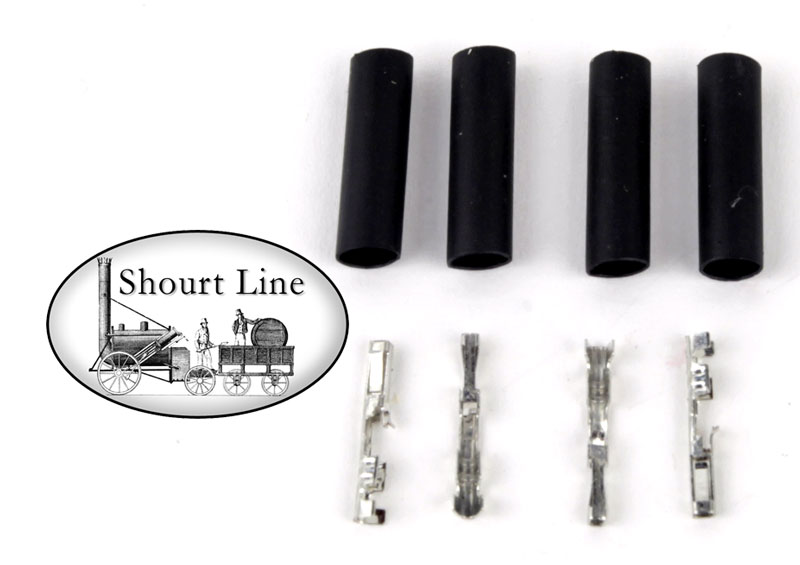

  • Shourt Line SL 4128410 connector kit $4.85 :
    • 4 each phosphor bronze connector 1 amp sockets - rated for over 10,000 insertion cycles (Female for 30 to 22 AWG wire)
    • 4 heat shrink tube for making a water proof connection
  • SL 4128410 LGB/PIKO BB wheel power connector kit: 4 socket (F), 4 heat shrink tubes
    SL 4128410 LGB/PIKO BB wheel power connector kit: 4 socket (F), 4 heat shrink tubes

    SL 4128410 LGB/PIKO BB wheel power connector kit: 4 socket (F), 4 heat shrink tubes

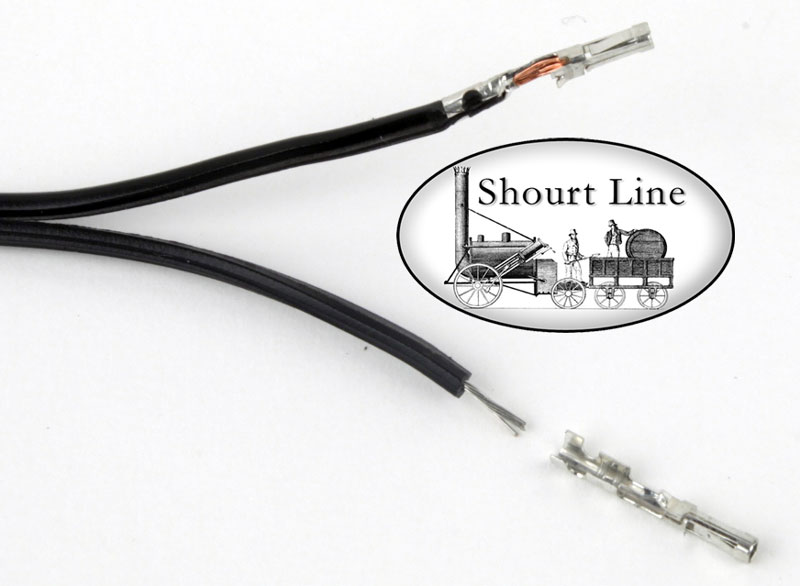

    Use Shourt Line Micro Black Cable for wiring to the connectors. Use a crimp tool or hand crimp with pliers and solder then seal with included heat shrink tubing. Note the two sets of crimps on each connector; the outer set for cable insulation/wire and the inner for the stripped wire.

  • Shourt Line SL 4128510 $9.95 pre-wired cable connector set:
    • 18 inch two conductor 24 AWG black micro power cable
    • 2 each SL 4128410 phosphor bronze power connectors for LGB/PIKO BB power pickup wheels (crimped to power cable assembled using a crimping tool)
    • 2 each heat shrink tubes sealed on the connector and micro cable for a weather proof assembly.
  • Installs in seconds and comes with 18 inch power cables and phosphor bronze 1 amp power connectors rated for over 10,000 insertion cycles.

    Shourt Line SL 4128510 pre-wired cable connector set: Installs in seconds and comes with 18 inch power cables and phospher bronze 1 amp power connectors rated for over 10,000 insertion cycles.
    Shourt Line SL 4128510 LGB/PIKO BB wheel power cable connector set shown above: 18in 24AWG micro black cable 2 conductor w SL-4128510 connectors and heat shrink weather proofing.

    Shourt Line SL 4128510 pre-wired cable connector set: Installs in seconds and comes with 18 inch power cables and phospher bronze 1 amp power connectors rated for over 10,000 insertion cycles.
    The SL 4128510 works with LGB or PIKO BB wheel sets, connector slides on power pins and connection is rated at 1 amp via phosphor bronze contacts and weather proof heat shrink tubing.

    Shourt Line SL 4128510 pre-wired cable connector set: Installs in seconds and comes with 18 inch power cables and phospher bronze 1 amp power connectors rated for over 10,000 insertion cycles.
    The SL 4128510 connectors have smaller diameter that the LGB power clamps for easy insertion in the floor of your car.

    Shourt Line SL 4128510 pre-wired cable connector set: Installs in seconds and comes with 18 inch power cables and phospher bronze 1 amp power connectors rated for over 10,000 insertion cycles.
    The SL 4128510 set installs in seconds and connectors easily fit thru holes in the car floor.

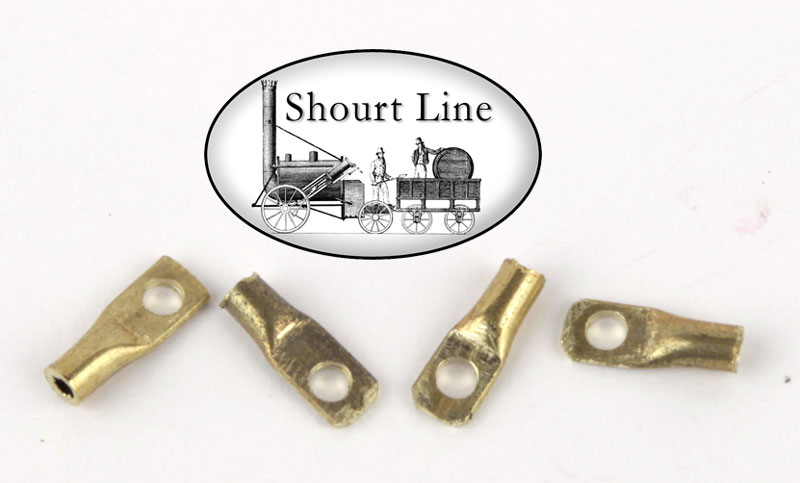

  • Shourt Line SL 4128440 $14.95 connector kit:
    • 4 brass 6 amp eye sockets (Female for 18 to 30 AWG wire)
    • Heat shrink tube (for weatherproofing)
  • Requires crimping or soldering wiring and comes with hear shrink tube for weather proofing, made from brass and rated at 6 amps of current.

    Shourt Line SL 4128440 connector kit: Requires crimping or soldering wiring and comes with hear shrink tube for weather proofing, made from brass and rated at 6 amps of current.
    Requires crimping or soldering wiring and rated at 6 amps of current.

    Shourt Line SL 4128440 connector kit: Requires crimping or soldering wiring and comes with hear shrink tube for weather proofing, made from brass and rated at 6 amps of current.

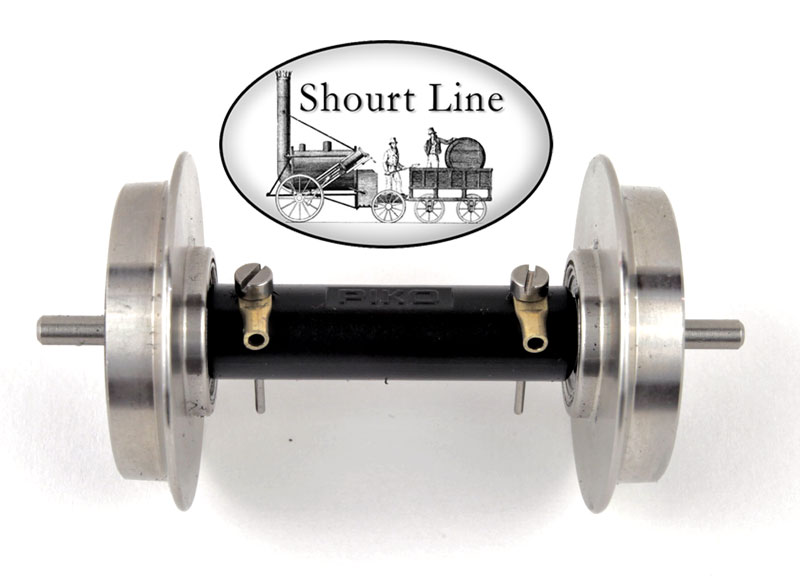

    Install wiring (not included) prior to installing on PIKO wheel set by removing screw and placing the screw thru the connector eyelet and tighten.

    Shourt Line SL 4128440 connector kit: Requires crimping or soldering wiring and comes with hear shrink tube for weather proofing, made from brass and rated at 6 amps of current.
    Use wire of your choice from 18 to 26 AWG size. Shourt Line Micro 24 AWG black micro cable is recommended..



  • Shourt Line SL 4128520 $19.95 pre-wired cable brass connector set:
  • 18 inch two conductor 24 AWG black micro power cable
  • 2 each SL 4128440 brass 6 amp eye socket power connectors soldered to power cable
  • 2 each heat shrink tubes sealed on the connector and micro cable for a weather proof assembly.


Installs in seconds on PIKO Ball Bearing Wheels for indoor or outdoor use


Easy install; remove screws, insert into brass eyelets and replace on axle, connect 18 inch power cable to lighting or sound system

  • Shourt Line Complete 4 LED Lighting Set for high efficiency lighting with analog and/or MTS/DCC systems

Consisting of the following items:

  • SL 8104230 4 LED drop ceiling lighting for LGB 2 axle cars DC&DCC SL requires SL 8453003 LED controller $19.71
  • SL 8453003 Precision Train Throttle & LED controller AC,DC or DCC - solder connections $8.49
  • SL 6111047 4,700uF Anti-flicker Buffer 2 wire 18 inch micro power cable for SL LED controllers $7.95
  • SL 4128510 LGB/PIKO BB wheel power cable connector set: 18in 24AWG micro black cable 2 conductor w SL-4128510 connectors and heat shrink weather proofing $9.95
  • 1/2 PIKO 36167 BB Metal Wheelsets w/Pickups, 30mm, 2 Pcs $16.79


Note, additional 4 LED boards or up to 200 more LEDs may added to the LED controller/buffer/power pickup wheel set above.

For analog train power, use our new low cost Gold Cap Super Capacitor buffer for over 4 minutes of full lighting per 4 LED board without any track power. This allows 2 min. for 8 LEDs, 1 min. for 16 LEDs or 30 seconds power for 32 LEDs which allows a 4 car passenger train with 4 LEDs in each car to have full lighting without any track power.

Photos:

PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup
New in PIKO factory sealed package

PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup
Power connectors are no supplied by PIKO and must be purchased separately. See above for connectors and cabling options.

PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup
The PIKO ball bearing power pickup wheels work with either 4 axle or 2 axle LGB/PIKO or other G scale cars. Photos shows the SL 4128510 LGB/PIKO BB wheel power cable connector set .

PIKO 36167 LGB G SCALE Hard-Chrome Plated 30mm Ball Bearing 30mm Metal Wheels w Power Pickup
One package can power the lighting for two multi car trains or two separate cars when using Shourt Line LED car lighting products.

For questions or details on this or any of our over 1200 new items Call 310-622-4431

Thanks for looking - Shourt Line by Soft Works Ltd.
