G SCALE PIKO P36220 DC-DCC-Analog American Steam Sound/Motor Decoder Kit LGB NEW

  • Automatic operation on either Analog (DC) or DCC or MTS track power
  • Authentic full-featured digital American steam locomotive sounds
  • Over 10 sound effects
  • 3 Watt Audio Output with Volume Control PC board
  • 3 Amp capacity Motor Controller Automatic Analog/DCC switch over
  • 5 Volt Smoker Output
  • 5 Volt Regulated Output for Front/Rear LED Lights
  • Large Screw Terminal Strip for Easy Wire Connections
  • Complete Kit: Sound/Motor Decoder, Speaker, Volume & Smoker Switch board, Bell and Whistle Trigger board
  • Easy CV Programming via PIKO Central Station & Navigator
  • Easy install in any PIKO Steam Loco or other Large Scale one or two motor locomotive

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit box label

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit box
New in PIKO factory sealed box

Click here for all PIKO Products

Shourt Line Direct Discount Price: $175.99 NEW MSRP $219.99

BEST BUY for American Steam Locomotive Digital Sound for Analog & DCC

Order from ShourtLine.com where every item is on sale every day and receive a free G-Scale surprise with every order!

For questions or details on this or any of our over >600 PIKO, in stock, new factory sealed items Call 310-622-4431

Kit Details:

Fantastic Digital Sound - Click here to hear sound

Ideal for PIKO G Mogul and 0-6-0 Loco with Tender.

This sound kit is made for easy installation into PIKO steam locomotives, such as the Mogul or 0-6-0 with Tender.
These locos have been factory-prepared for this sound kit. This sound kit can also be installed in other PIKO locos,
as well as other brands of steam locos, with varying degrees of ease.

The heart of this kit is a state-of-the-art high-quality digital steam sound decoder (circuit board) developed
exclusively for PIKO by SoundTraxx®. This sound decoder is “dual mode”, enabling enjoyment of the model’s
numerous sophisticated features on either Analog DC or Digital / DCC operation. The sound decoder senses which
kind of power is being supplied to it and responds automatically, with no switches to throw or connections to change

Steam Sound Effects:

The sound decoder includes over ten sound effects. Depending on the effect, these are generated either
continuously, automatically, or as controlled by the user

  • Steam Exhaust (Chuff)
  • Whistle
  • Short Whistle
  • Bell
  • Air Pump (Compressor)
  • Blower
  • Brake Release
  • Dynamo
  • Steam Release
  • Coal Shoveling (factory default is set to “on”, but can be turned off using a Digital system, for both Analog DC
    and Digital / DCC operation)

Documents included with the kit:

Use the CV table for decoder configuration via PIKO or Massoth Central Station & Navigator or other DCC programmer such as the SPROG II or SPROG III programmer/central station.

Technical Summary:

  • The steam sound decoder performs numerous functions, on both Analog DC and Digital / DCC:
  • Motor control – All power to the motor goes through the sound decoder, enabling proper coordination of the
    locomotive’s movement with other operating features.
  • Lighting – The sound decoder provides a regulated supply of 5 volts for directional front and rear headlights.
    The “forward” light illuminates automatically, according to the direction of travel.
  • Smoke – The sound decoder provides a regulated supply of 5 volts to the smoke unit for excellent operation
    even when the loco is standing still or moving slowly.
  • Sound – The authentic sounds of a real steam locomotive are digitally reproduced through the powerful 3-watt
    audio amplifier. All sounds are polyphonic; one sound will never interrupt another.

Features:

  • Made by Sound-Trax (USA) for PIKO-America
  • 2 year guarantee by PIKO America
  • Easy install
  • Operates automatically on either Analog DC or Digital/DCC power
  • Authentic full-featured digital steam sound
  • 3 Watt Audio Output w/Volume Control
  • 3 Amp Capacity Motor Controller
  • 5 Volt Output for Smoke Unit
  • 5 Volt Outputs for Front & Rear Headlights
  • Screw-terminals for easy connection
  • Kit includes Sound Decoder Board, Volume, Control,
    Speaker & Bell/Whistle Trigger
  • Easy CV Programming via PIKO Central Station & Navigator
  • Easy install in any PIKO Steam Loco or other Large Scale one or two motor locomotive

Specifications:

Sound Decoder - Physical Dimensions

  • Length: 69 mm / 2.72”
  • Width: 32 mm / 1.26”
  • Height: 12 mm / 0.48”

Sound Decoder - Electrical Ratings

  • Maximum Operating Voltage: 27 V DC
  • Motor Current Capacity: 2.5 A Continuous, 4.0 A Peak
  • Lighting Output Current: Maximum 500 mA at 5 V DC
  • Smoke Unit Output: Maximum 500 mA at 5 V DC
  • Audio Amplifier Power: 3 Watts at 8 Ohms

Speaker

  • Nominal Size: 6.5 cm / 2.5”
  • Rating: 8 Watts
  • Impedance: 8 Ohms
  • Frequency Range: 20-20K Hz Waterproof Cone Construction

Note: If choosing a different speaker (for example, to
fit a smaller installation space), ensure that the speaker
is of 8 Ohms impedance to avoid damaging the audio
amplifier. Choose a speaker of adequate wattage rating
to avoid damaging the speaker.

DCC User Function Settings:

The sound decoder is factory-set with the following “default” function assignments for user control via PIKO/Massoth Navigator or other DCC control system:

Function # / Default Setting

  • F0 Headlight On/Off (FO is activated with the #9/Light button on a PIKO or Massoth Navigator, Higher functions use keys 1-8 and 1-8 shifted [9-16])
  • F1 Bell On/Off
  • F2 Whistle On/Off
  • F3 Short Whistle
  • F4 Steam Release (Hiss)
  • F5 (Not used)
  • F6 Smoke Unit On/Off
  • F7 Headlight Dimmer On/Off
  • F8 Mute
  • F9 Inertia Override (temporarily overrides momentum settings)
  • F10 Half Speed (for switching/shunting operations)
  • F11 Brake Squeal (when moving) Brake Release

See CV table and instructions for automatic operation of over 10 sounds including CV115 which selects desired Whistle type (select 0, 1 or 2) Factory default = 0

DC Analog power User Settings:

The sound decoder is factory-set for automatic DC Analog train operations of sounds and sound effect but can be changed by user - see instruction manual link above.

Kit Contents:

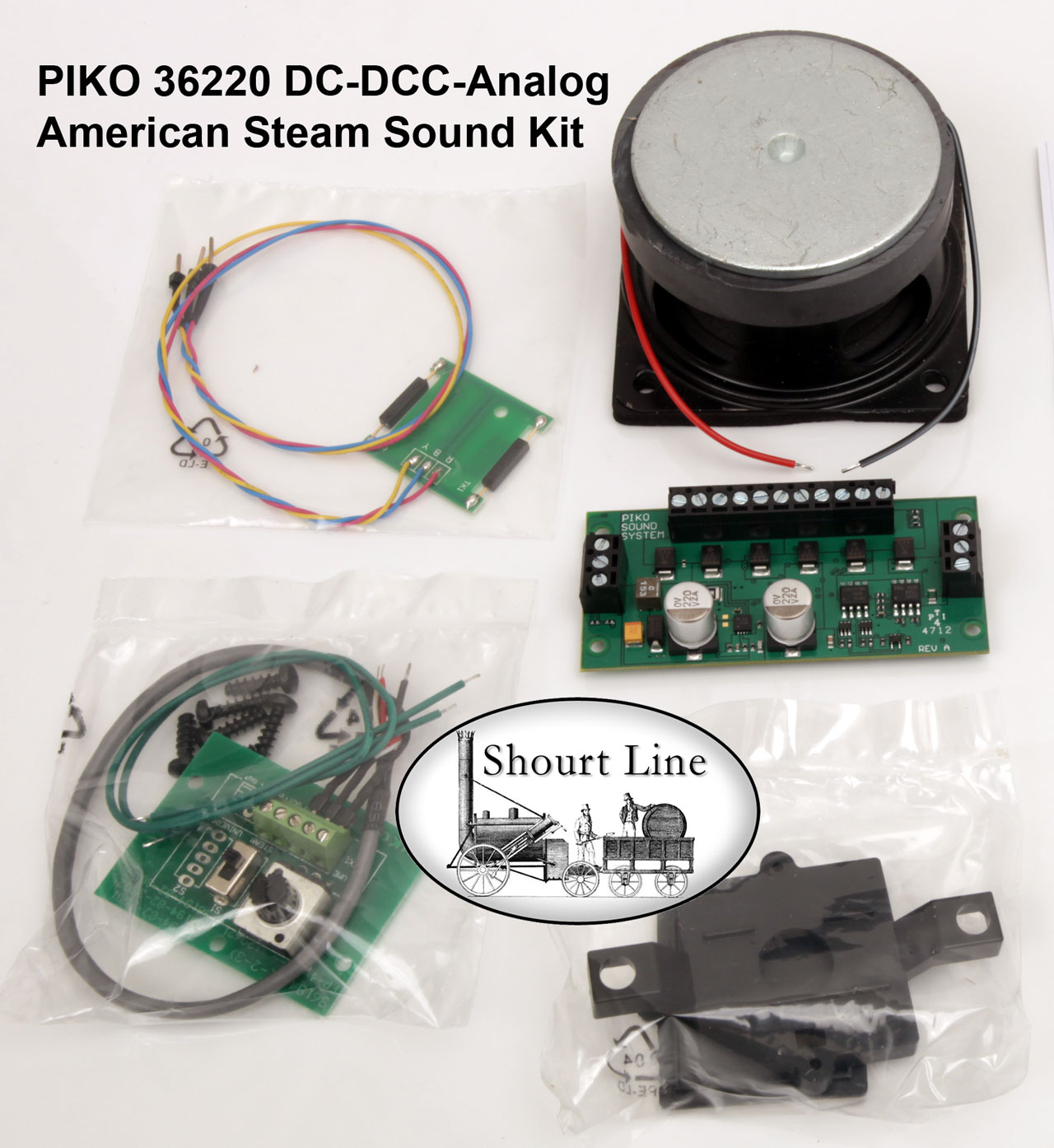

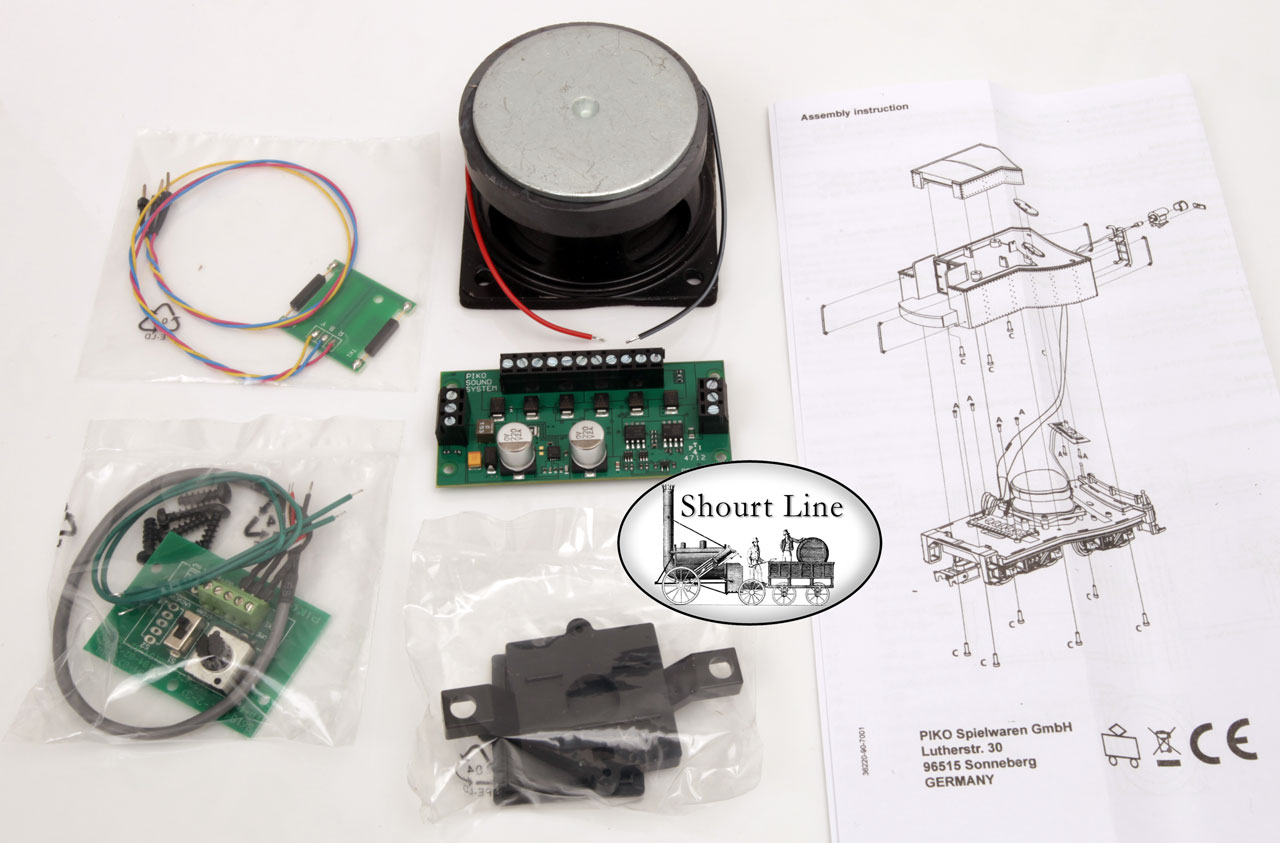

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit parts of kits

Complete easy to follow instructions are provided for easy installation

PIKO 36330 Steam Sound Kit for DC Analog & DCC power and control

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit instructions with decoder top

Photos:

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit decoder top

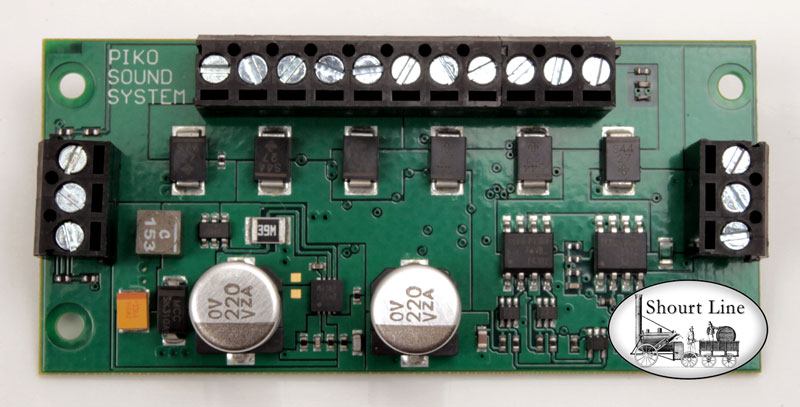

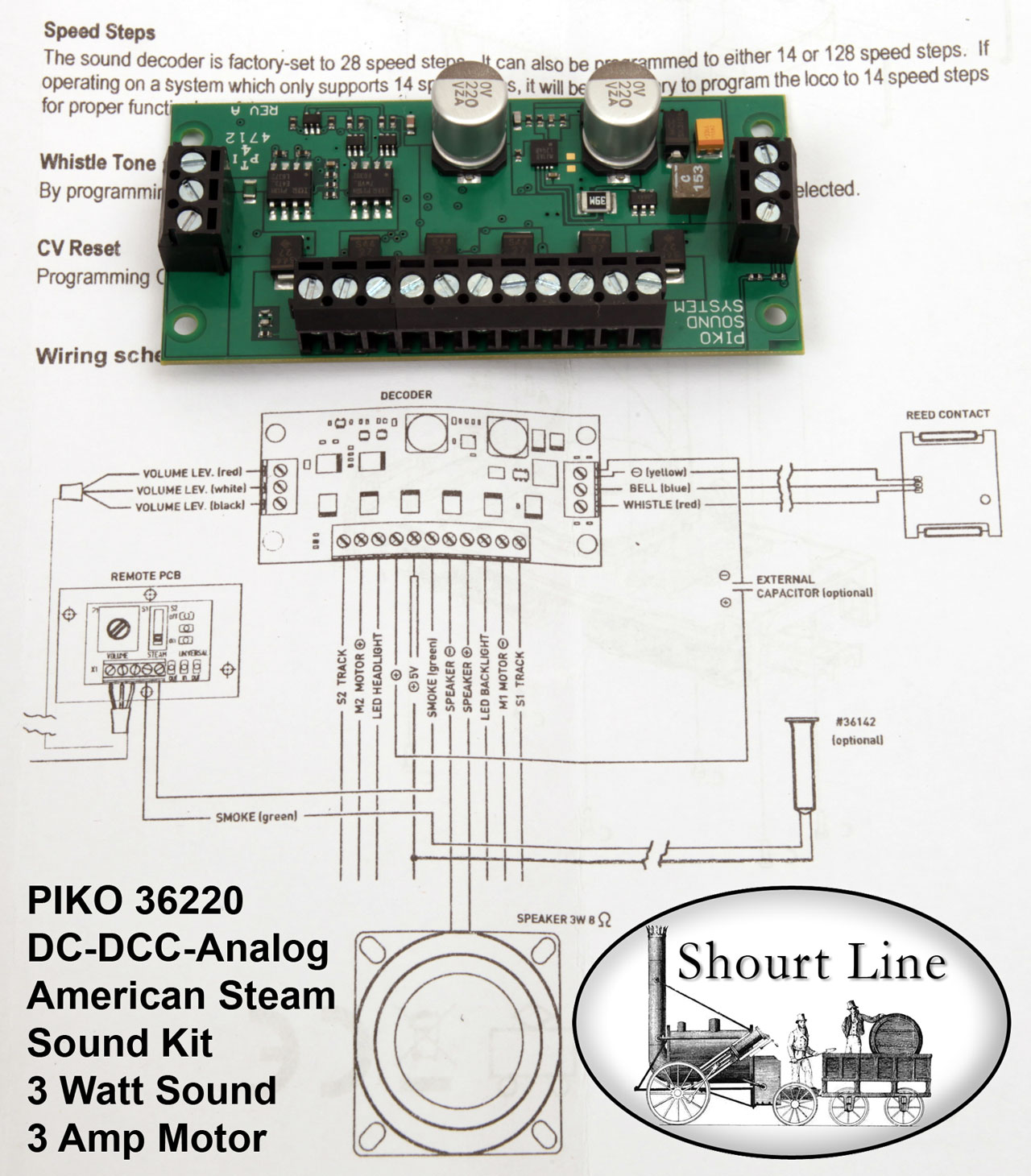

Analog/DCC Sound Board & Decoder with connector blocks - top view

Decoder bottom

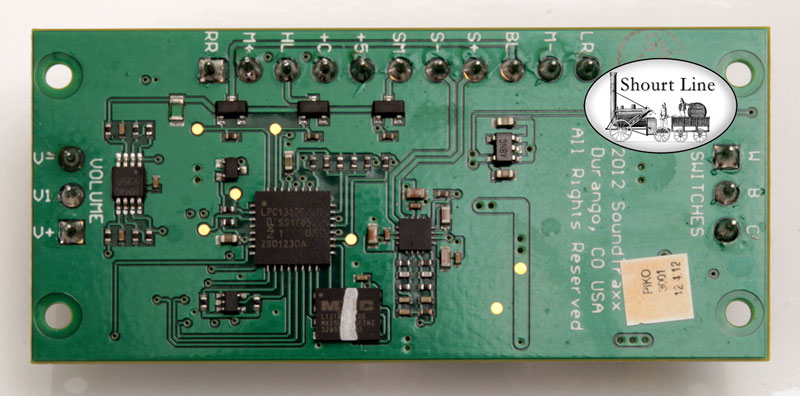

Analog/DCC Sound Board & Decoder - bottom view

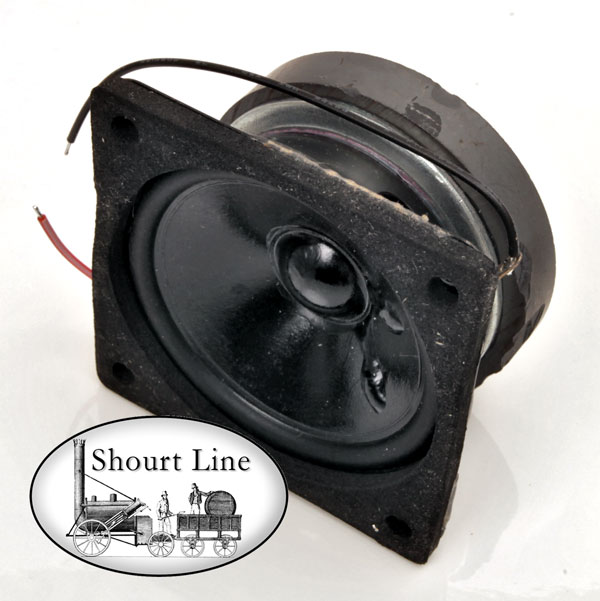

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit 3 Watt Speaker
3 Watt Speaker

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit Speaker volume and smoke switch PC board

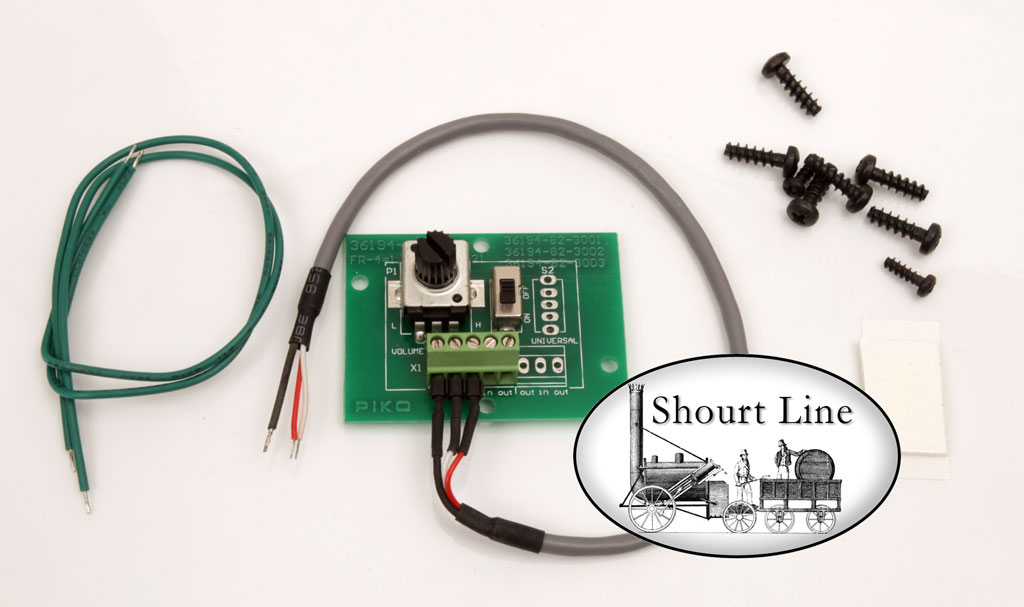

Volume Control and Smoker Switch - Pre-wired

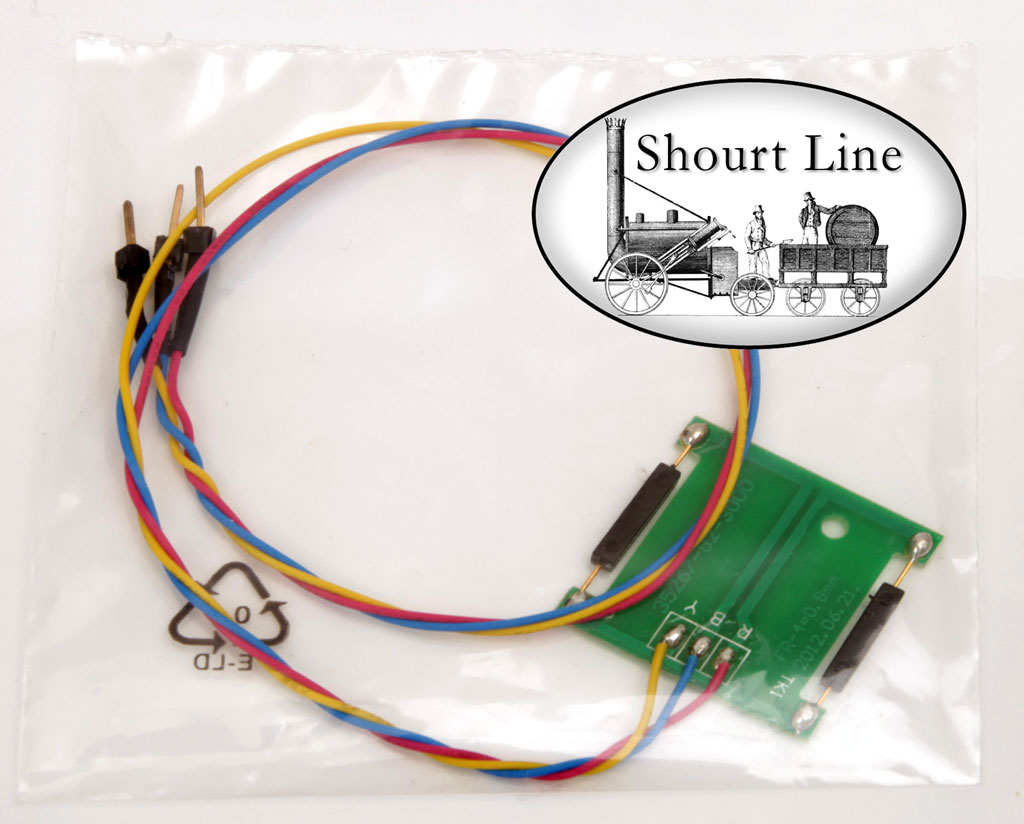

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit Reed Switch board
Bell/Whistle Trigger board - pre-wired for easy install

PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit Reed Switch Housing

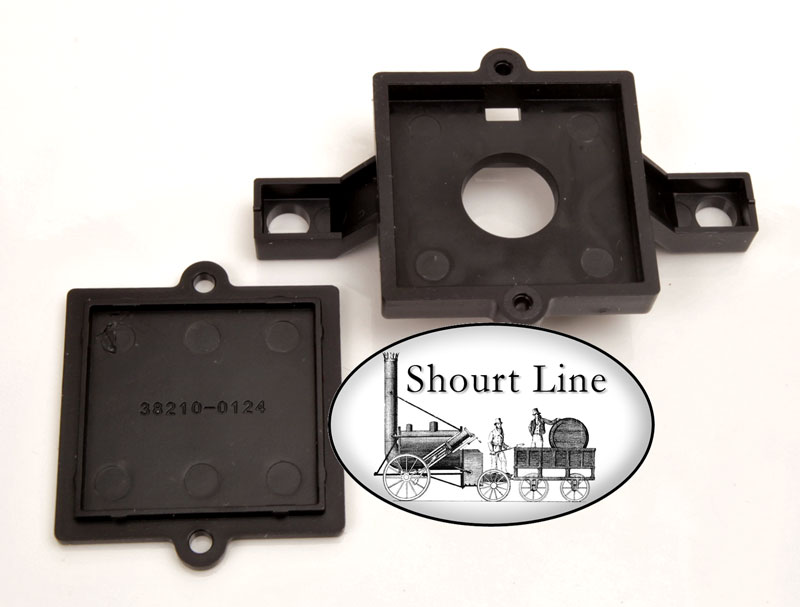

Bell/Whistle Trigger board housing for installing in PIKO locos



PIKO 36220 DC-DCC-Analog American Steam Sound Motor Decoder Kit box front

For questions or details on this or any of our over >600 PIKO in stock, new factory sealed items
Call 310-622-4431
