G Scale eMOTION S Sound Board & Decoder 3 Watt Digital Sound + 3 dimmable function outputs
PLUG and PLAY - Easy Install works on Analog or DCC/MTS power!
New Massoth Product
Steam Locos - 8212100 General steam locomotive
Diesel locos - 8222100 General Diesel locomotive
Electric locos - 8232100 General electric locomotive
New and Unused In original package from the #1 Massoth Dealer in the USA
Made in Germany by Massoth Elektronik GMBH.
Order with any Massoth loco sound
Shourt Line Direct Discount Price: $197.95 New Item
Specify the sound type from the XLS Massoth sound library (click here to view available sounds and click on any speaker to hear sample sounds) or specify the LGB model number when ordering for authentic LGB sound loco and trolley sounds!
If you need a speaker just tell us the LGB model number (click here to view all Massoth speakers or contact us s for special sizes) or order with a speaker with enclosure for car mounting, volume controls, power buffers and reed switch options are available as well.
For questions on this item or details on our professional layout design and installation services
Call 310-622-4431 or email us at info@ShourtLine.com
Description:
eMOTION S Sound Decoder
Universally applicable sound decoder for analog and digital operation; equipped with a SUSI interface and a 3 Watt output stage.
eMOTION S The tiny sound decoder.
The eMOTION S sound decoder has the same sound features as the XLS sound decoder.
ANALOG AND DIGITAL OPERATION
All sound features are available at the lowest voltages possible. A stabilized analog operation is guaranteed at 5Volts.
NMRA DCC and LGB® MTS
The eMOTION S supports the full NMRA protocol. The eMOTION S features an automatic detection of LGB® MTS signals which makes this sound decoder ideal for all generations of the LGB® MTS system. The bus interface may be used with Massoth/LGB® OnBoard or SUSI protocol. Fits into all G-Scale locomotives like Bachmann, USA-Trains, Aristocraft, Accucraft, KISS
AUTHENTIC SOUND in digital quality
The eMOTION S sound decoder produces authentic locomotive sounds in digital high-level quality. Massoth uses only sound recordings of original locomotives adjusted to the sound decoder's technology. The eMOTION S may hold more than 2 minutes of sound. This enormous capacity is sufficient for a variety of additional high-quality sounds. The sound decoder features a 3-Watt high-performance output stage. The volumes of all 16 sounds may be adjusted separately.
Massoth utilizes top-of-the-shelve technology paired with state-of-the-art processing ensuring reprogramming via the programming track. This guarantees that all decoders may be updated at any given time as well as for all new decoder generations to come.
Note: A sound upgrade or firmware update may only be done with our PC-Module (8175001)!
Summary of features:
- Digital sound module16 kHz sound processing Capacity of sound memory + 2 minutes Analog and digital operation, SUSI interface, LGB® OnBoard Analog operation starting with 5 Volts3 Watts output User-friendly terminals to connect
loudspeaker,
external volume control and
pulse generator Additional terminals for
power buffer
2 function outputs
2 contact inputs Wide range of sounds available - Updatable via PC-module
- Measurements: 35 x 20 x 12 mm (plus 2x 5mm extensions which may be cut off)
Special features for Mallet, Rack and Dual Power Locos:
- Manual selection/activation using F Function Key control: Function key for steam rack
rail loco and dual power locos
(since version 2.5) use
CV 170 to define function key which
activates the rack noise on a steam rack
rail engine or switches the sound from
electric to Diesel on a dual power loco.
- Automatic Synchronization using 2 separate wheel sensor inputs: The S Decoder, like the XLS, has 2 separate wheel sensor inputs for synchronizing the the chuffs to wheel rotation of locos with two pairs of steam pistons like on Mallets and Rack Locos. This provides automatic synchronization so a rack loco cadence changes with the speed of the rack steam pistons and Mallet double motor blocks.
SCOPE OF SUPPLY:

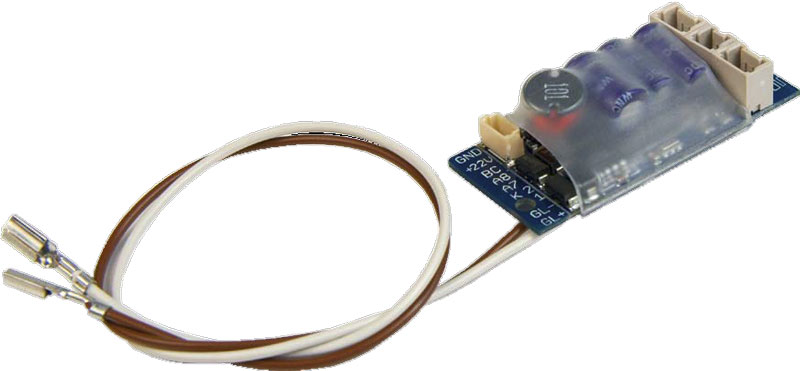

The eMOTION S comes with an attached power cable and the SUSI interface cable.
In case your locomotive does not provide a loudspeaker you may choose one from our wide range of loudspeakers.
Here you can find the list of loudspeakers of each loco.
Any Loco sounds from the Massoth sound library can be installed with the Massoth PC-Module.
Order with any Massoth sound in the library below
| The Background music in MP3-Demo Sounds are not present in sound modules Reference the XLS item number below when ordering the S decoder |
| Item No. | Delivery status | MP3-DEMO | |
new Sounds coming soon click here for available sounds at Massoth.com
Easy Install - Connect to power and a speaker::
DC - Analog power without a motor decoder: Connect white and brown wires to track power (Most LGB locomotives have power pins that make installation plug and play).

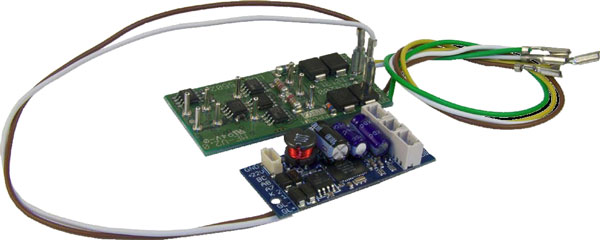

DCC - Power with an LGB, Massoth, or any type of motor decoder: Connect white and brown wires to track power pins (LGB decoder shown above).

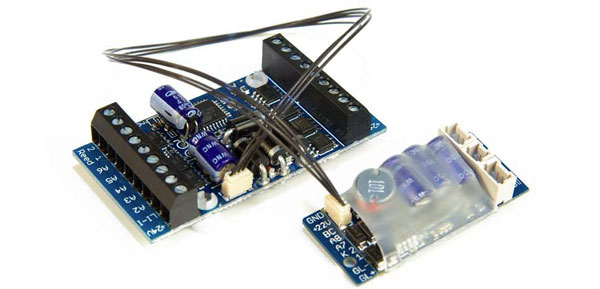

DCC - Power with a Massoth XLS decoder: The eMOTION S decoder may use the SUSI bus to receive driving data (including speed steps) and power via the SUSI bus interface. The SUSI bus may be activated with CV 49 – Bit4 = 1 (see manual for details).
Plug a Massoth or Shourt Line speaker into the speaker jackRun your loco and enjoy you HiFi digital sound!
Optional hook-up for axle synchronization:

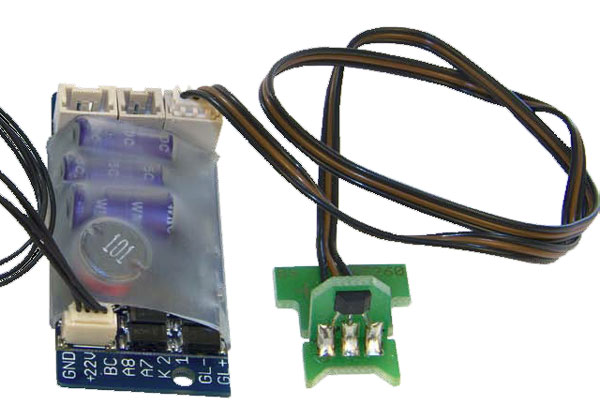

Use a Massoth or Shourt Line hall effect switch for axle synchronized sound (SUSI interface shown above)

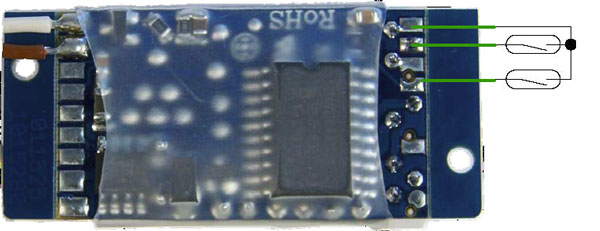

Use a Shourt Line reed switch/magnet/cable set for pulse generated axle synchronized sound using the Back side solder pads for GND., Clock 1, & Clock 2.
Optional hook-up for bell and whistle/horn activation via track magnets:

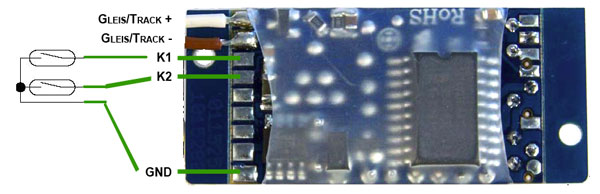

Use a Shourt Line universal reed switch or Massoth reed PC broad for triggering bell and Whistle/Horn from track Magnets by connecting reed switches to solder pads for GND., K1, & K2.
SL-RdSW-2-nc: Please and stick on the any loco or car with the new S decoder - Order Shourt Line Part No.: 4116110 for the SL-RDSW-2-bw which has 18 inch wire bare connector for flexible routing of wires to the S decoder.
Easy to install: Just peal off the red backing and apply to the bottom of your loco or car. The 3M adhesive pad attached to the case designed for indoor or outdoor use. (Shown above is the Shourt Line Universal reed switch No.: 4116100 for LS and XLS Massoth decoders that require a micro plug connection.)

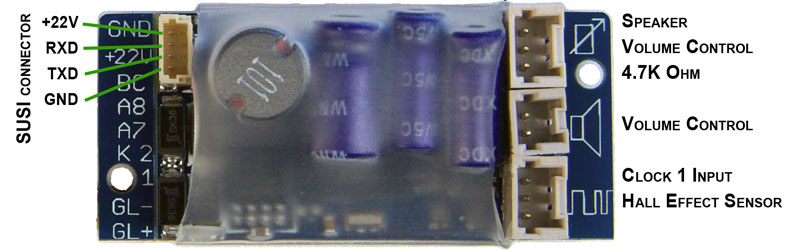

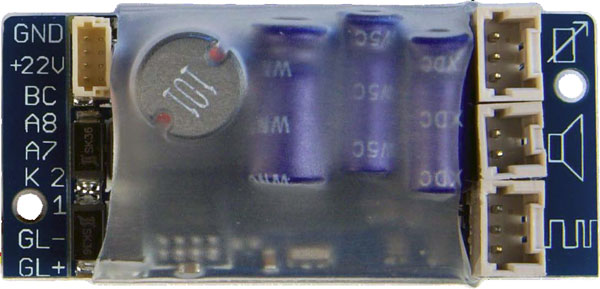

Top side connector socket functions:

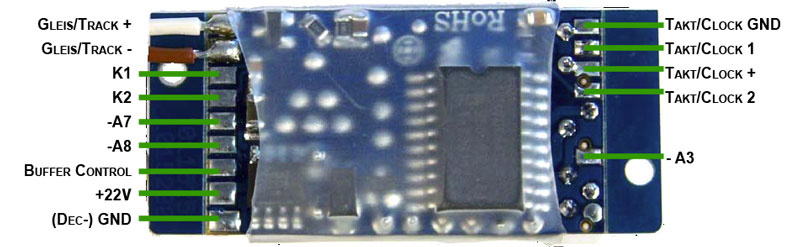

Bottom side solder pad connector functions:
Optional S Decoder Shourt Line DC two wire Gold Cap Power Buffer: $34.95 New Item
Designed for use with the S Decoder running on DC (analog) power, it provides up to 60 seconds of sound power when a loco stops or when track voltage drops below 5 volts. This allows the standing sounds to continue without track power and provides power for loco sounds when your loco begins to move and there insufficient track voltage for S decoder to generate sounds without a buffer. This low cost 10 farad Gold Cap Buffer features and easy two wire installation by connecting to the +22V and GND pads shown above. It's small size and fits easliy in even small locos. Contact the Shourt Line for details.
Photos:
 |
 |
|---|---|
 |
Click here for user manual and larger photos
Made in Germany by Massoth - 100% satisfaction guaranteed.
